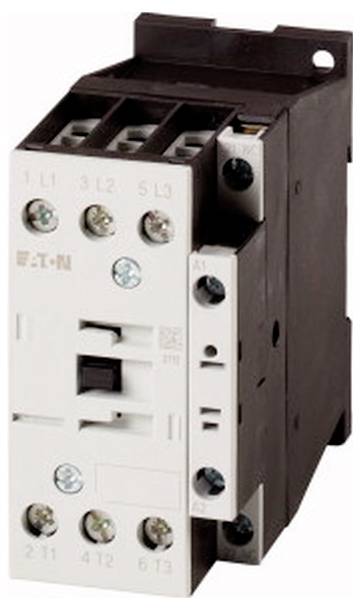

Eaton 277300 Electrical contactor 3 makers 32 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Current load
32 A
Connection
Screws
Type
277300
Contact type
3 makers
Technical specifications
- Product type
Electrical contactor
- Type
277300
- Contact type
3 makers
- Auxiliary contact type
1 breaker
- Control voltage (min.)
230 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
230 - 230 V AC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
690 V AC
- Current load
32 A
- Connection
Screws
- Width
45 mm
- Height
85 mm
- Dim
(W x H) 45 mm x 85 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818958 Eaton 277300 Electrical contactor 3 makers 32 A 1 pc(s)
Description
Power contactor, application: Power contactors for motors, contactors up to 170 A, 3-pole, usage category: AC-1: Non or slightly inductive loads, resistance ovens, NAC-3: Cage rotor motors: Start, switch off during operation, AC-4: Cage rotor motors: Start, Plug in, reverse, type, connection: screw terminals, instructions: also suitable for motors of efficiency class IE3., IE3-enabled devices are marked with the logo on the packaging., number of poles: 3-pole, rated operating current AC-3, 380 V, 400 V: Ie= 32 A, rated operating current AC-1 conventional thermal current, 3-pole
