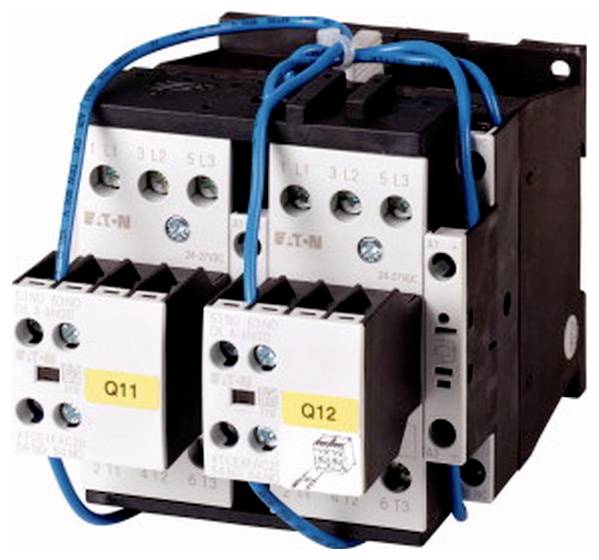

Eaton 278158 Reversing contactor 6 makers 25 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Current load
25 A
Connection
Screws
Type
278158
Contact type
6 makers
Technical specifications
- Product type
Reversing contactor
- Type
278158
- Contact type
6 makers
- Auxiliary contact type
2 makers
- Control voltage (min.)
110 V AC
- Control voltage (max.)
110 V AC
- Control voltage range
110 - 110 V AC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
690 V AC
- Current load
25 A
- Connection
Screws
IP00
- Width
90 mm
- Height
85 mm
- Dim
(W x H) 90 mm x 85 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3819055 Eaton 278158 Reversing contactor 6 makers 25 A 1 pc(s)
Description
Reversing contactor combination, application: Contactor combinations for motor start with two directions of rotation, accessories: DIUL reversing combinations, usage category: NAC-3: Cage rotor motors: Start, switch off during operation, AC-4: Cage rotor motors: Start, plug in, reverse, Type, rated operating current AC-3, 380 V, 400 V Ie= 25 A, Max. Rated for three-phase motors, 50 50 - 60 Hz AC-3 220 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, actuating voltage: 110 V 230 Hz, 120 V 60 Hz, type AC / DC: AC actuation, notes: Suitable also for motors of efficiency class IE3.
