Buy Eaton 278561 FAZ-C16/1 Circuit breaker 16 A 230 V AC

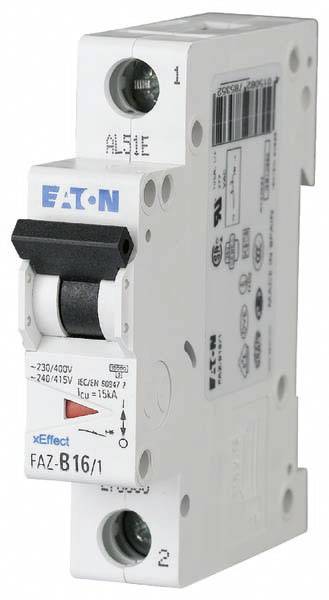

'Single-pole circuit breaker by Eaton, model FAZ-B16/1, rated current 16A, for overload and short-circuit protection in electrical installations.'

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

16 A

RoHS-compliant

Yes

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Connectable conductor cross-section single-wired: 1 - 25 mm²
connectable conductor cross-section multi-wired: 1 - 25 mm²
Number of fused poles: 1
rated insulation voltage UI: 440 V
Width in division units: 1
mounting depth: 70.5 mm
Energy limitation class: 3
Frequency: 50 - 60 Hz
Protection class (IP): IP20
Overvoltage category: 3
Ambient temperature during operation: -25 °C - +75 °C
Pollution degree: 2
additional devices possible: Yes

Product type: Circuit breaker

Number of pins: 1

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 16 A

Nominal current: 16 A

Factory colour: Multicolour

Dim: (L x W x H) 150 cm x 50 mm x 100 mm

Content: 1 pc(s)

Switch-off capacity: 15 kA

Nominal voltage: 230 V AC

Width: 50 mm

Height: 100 mm

Length: 150 cm

Weight: 0

: AC

: 70.5 mm

: 16 A

: 230 V

: 50-60 Hz

: C

: 440 V

: 3

: 3

: 2

: 1

: FALSE

: 2.3 W

: IP20

: 1

: FALSE

: 1-25 mm²

: 1-25 mm²

: -25-75 °C

: FALSE

: TRUE

: 1

: 10 kA

: 10 kA

: 15 kA

: 15 kA

: 4 kV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2306858 Eaton 278561 FAZ-C16/1 Circuit breaker 16 A 230 V AC

User & Safety Instructions

User & Safety Instructions 2306858 Eaton 278561 FAZ-C16/1 Circuit breaker 16 A 230 V AC

Eaton 278561 FAZ-C16/1 Circuit breaker 16 A 230 V AC
