Buy Eaton 315NHG1B NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 315 A 500 V 3 pc(s)

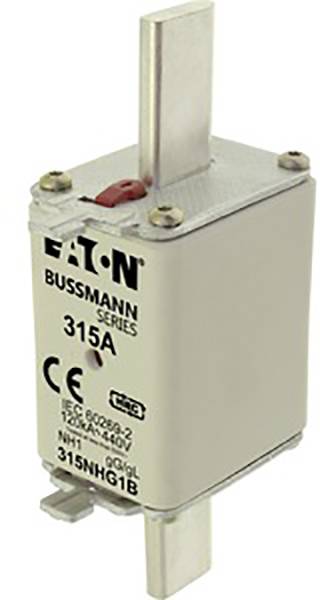

A square fuse insert from Eaton's Bussmann Series, marked '315A', suitable for 690 V~, displays CE marking and technical details.

Image similar

An electronic fuse marked 'Bussmann 315A 120kA - 440V', suitable for industrial applications.

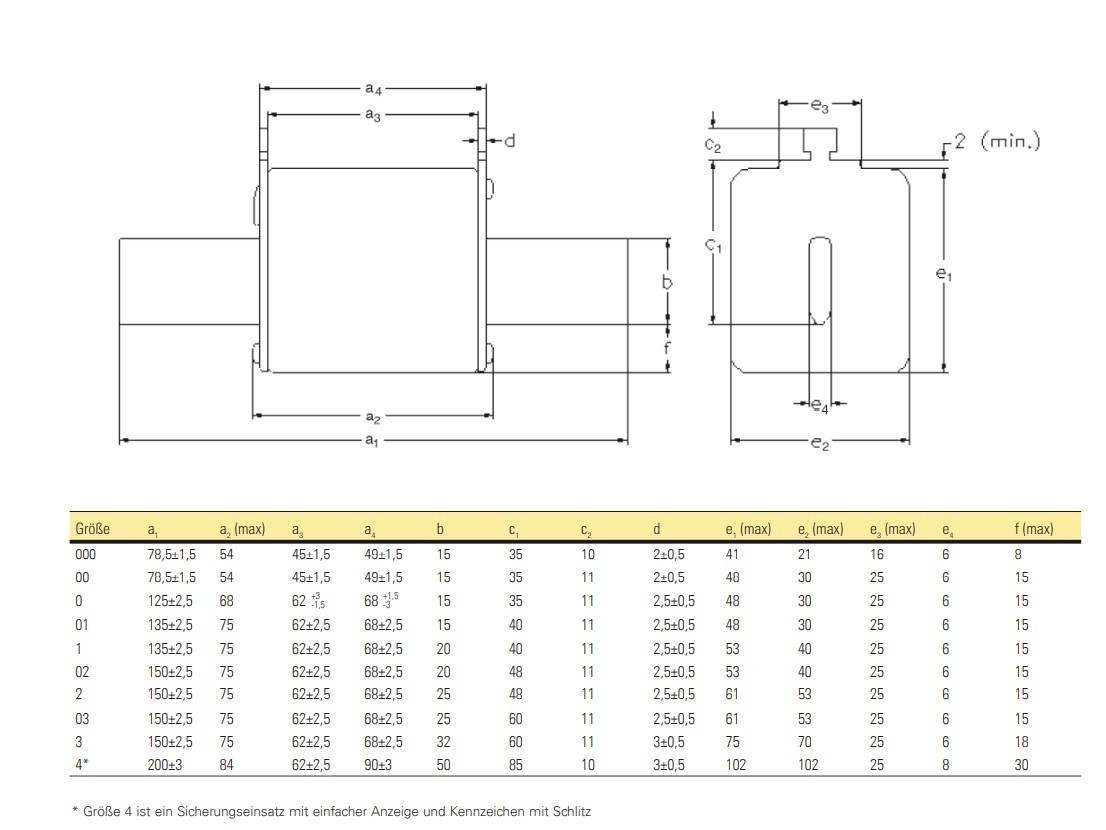

'Representation of fuse operations with dimensions. Table shows size, dimensions a to k (max/min) and diameter (f max).'

1/3

Image similar

Product type

NH fuse

Fuse size

Nominal current - rounded value

315 A

Type

Live grip bottles made of metal

Content

3 pc(s)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 3 pc(s))

Set(s)

Total (€ 11.20 / piece)

€ 33.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fuse link 315NHG1B

Dual displayHigh breaking capacityVarious insulated labels availableIEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE-certification

Technical specifications

Type: Live grip bottles made of metal

Product type: NH fuse

Fuse size: 1

Content: 3 pc(s)

Nominal current: 315 A

Nominal current - rounded value: 315 A

Model: with blown fuse indicator

Switch-off capacity: 120 kA

Duty class: gG
gL

Nominal voltage: 500 V

Suitable for: Fuse size 000 - 4

: AC

: 315 A

: 120 A

: gL/gG (cable protection/equipment protection)

: Combination fuse status indicator

: 440 V

: 22 W

: FALSE

: NH1

: 120 kA

Documents & Downloads

Datasheet

Datasheet 2622354 Eaton 315NHG1B NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 315 A 500 V 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2622354 Eaton 315NHG1B NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 315 A 500 V 3 pc(s)

Information

Information 2622354 Eaton 315NHG1B NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 315 A 500 V 3 pc(s)

Description

Dual display systemBussman's patented dual display provides a clear display and provides an extremely reliable local and remote* display. This reduces the time and cost of replacing backup operations.* Using an optional microswitchLow power lossBussmann's "Low Watts Loss" (low loss of current) fuse inserts reduce the general operating costs as well as carbon emissions through lower energy consumption and less heat transfer to the devices.Worldwide legal complianceBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.

This text is machine translated.
