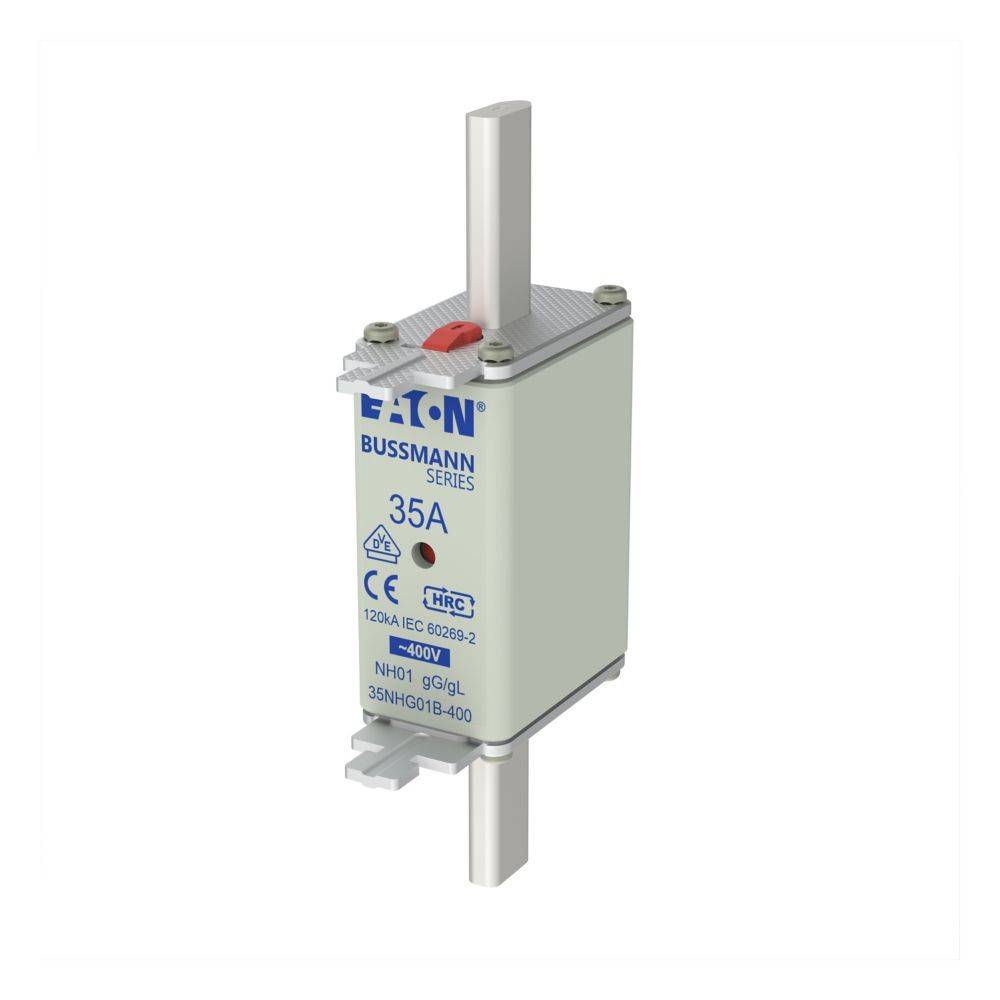

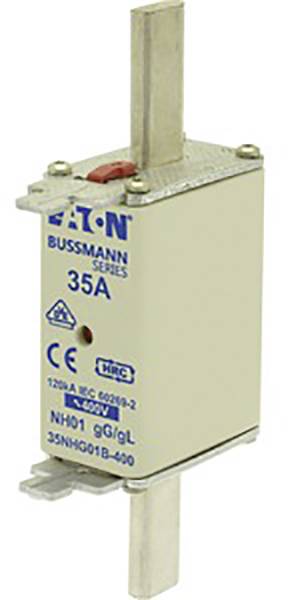

Eaton 35NHG01B-400 NH fuse Suitable for Fuse size 000 - 4 Fuse size = D01 35 A 400 V 3 pc(s)
EAN:
Part number:
Item no:
Product type
NH fuse
Fuse size
D01
Nominal current - rounded value
35 A
Type
Live grip straps made of metal
Content
3 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.05
€ 25.83
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 3 pc(s))
Total (€ 8.96 / piece)
€ 26.88
plus VAT.
Technical specifications
- Type
Live grip straps made of metal
- Product type
NH fuse
- Fuse size
D01
- Content
3 pc(s)
- Nominal current
35 A
- Nominal current - rounded value
35 A
- Switch-off capacity
120 kA
- Duty class
gG
gL
- Nominal voltage
400 V
- Suitable for
Fuse size 000 - 4
AC
35 A
120 A
gL/gG (cable protection/equipment protection)
Combination fuse status indicator
400
4.9
FALSE
NH01
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2622358 Eaton 35NHG01B-400 NH fuse Suitable for Fuse size 000 - 4 Fuse size = D01 35 A 400 V 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2622358 Eaton 35NHG01B-400 NH fuse Suitable for Fuse size 000 - 4 Fuse size = D01 35 A 400 V 3 pc(s)
Information
Information 2622358 Eaton 35NHG01B-400 NH fuse Suitable for Fuse size 000 - 4 Fuse size = D01 35 A 400 V 3 pc(s)
Description
Dual display systemBussmann's patented dual display provides clear viewing and provides highly reliable local and remote* display. This reduces the time and cost of replacing fuse links.* Using an optional microswitchLow power lossBussmann's Low Watts Loss (low power loss) fuse links reduce overall operating costs and carbon emissions by reducing energy consumption and heat transfer to the equipment.Compliant with the law worldwideBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.
