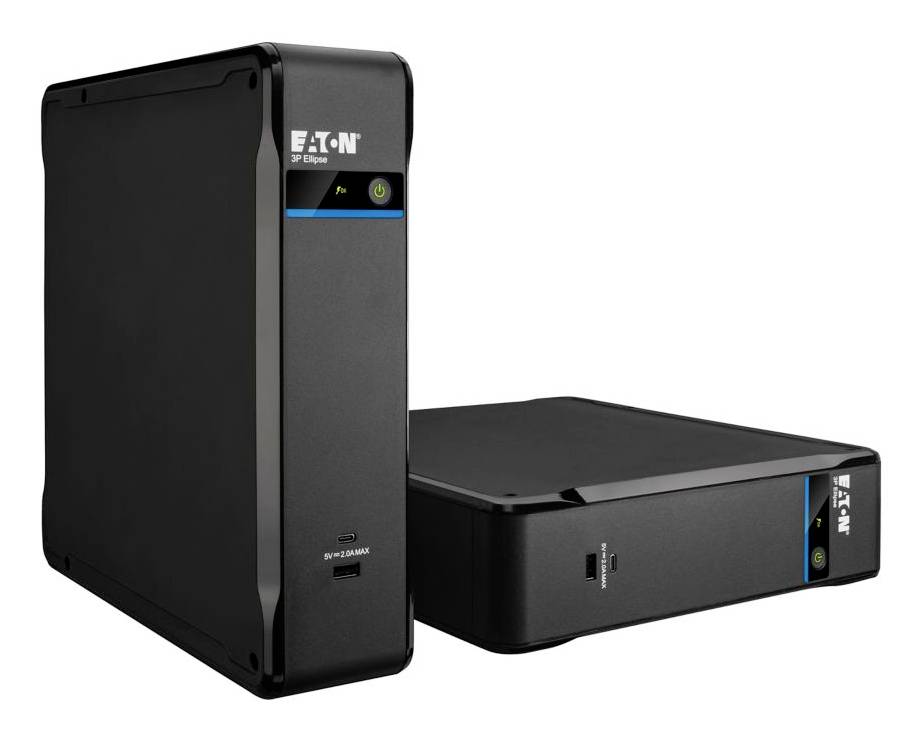

Two black Eaton UPS units, one upright and one lying flat, shown on a white background.

Two black Eaton UPS units, one upright and one lying flat, shown on a white background.

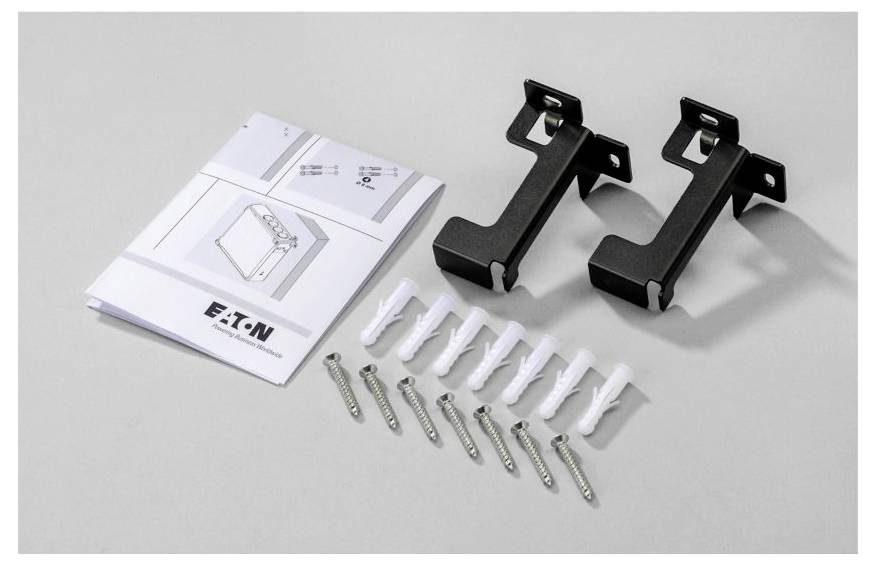

Installation kit with two black wall brackets, screws, plastic anchors, and an Eaton instruction booklet laid out on a surface.

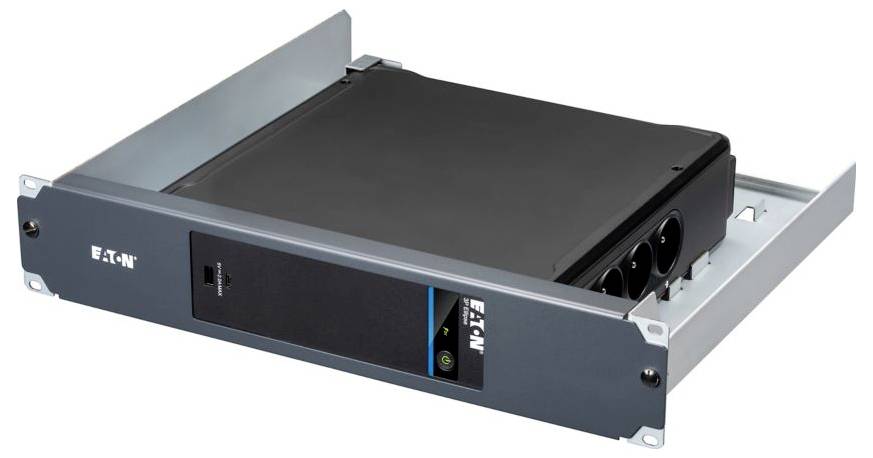

Eaton rack-mounted battery or power module with sliding rails, shown in a front-left view on a white background.

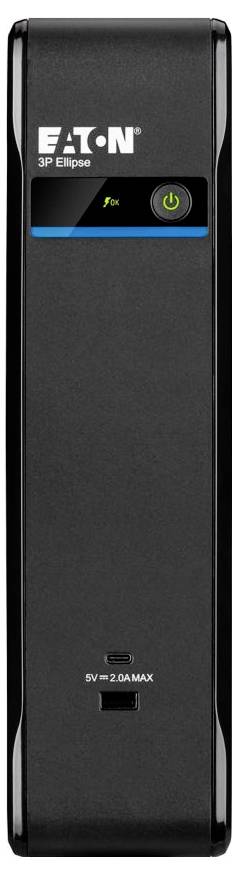

Black Eaton 3P Ellipse UPS unit with power button and front USB charging port, shown upright on a white background

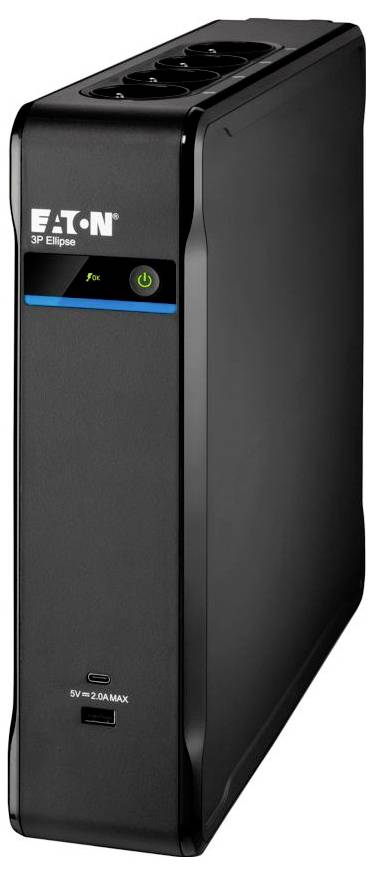

Black EATON 3P Ellipse UPS unit with power button and front USB charging port shown on a white background

Black vertical power strip with four round European outlets, power switch at the bottom, and a small network port near the top.

Box of an EATON 3P Ellipse professional UPS, labeled 1700VA/1040W, with a black tower unit pictured on the front.

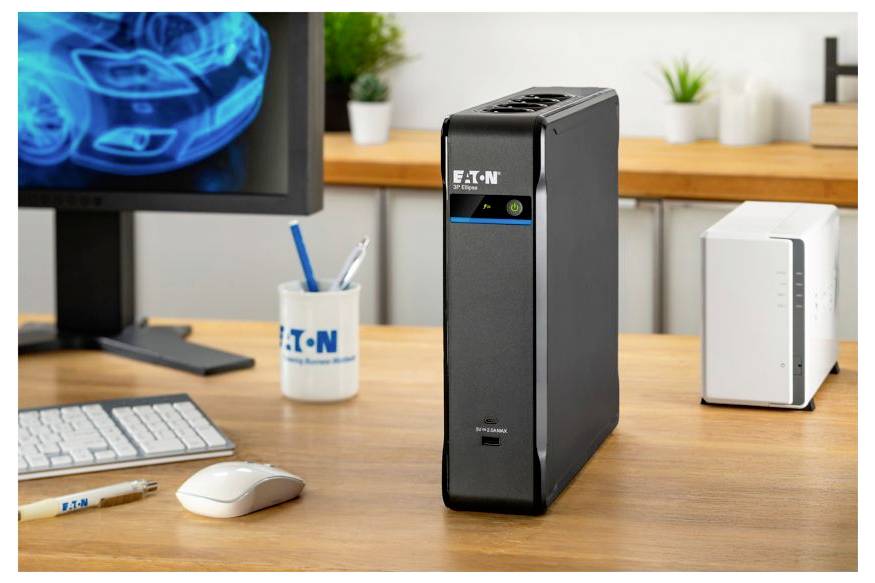

Black Eaton uninterruptible power supply on a desk beside a white network device, with a computer monitor, keyboard, mouse, and pen holder in the background.

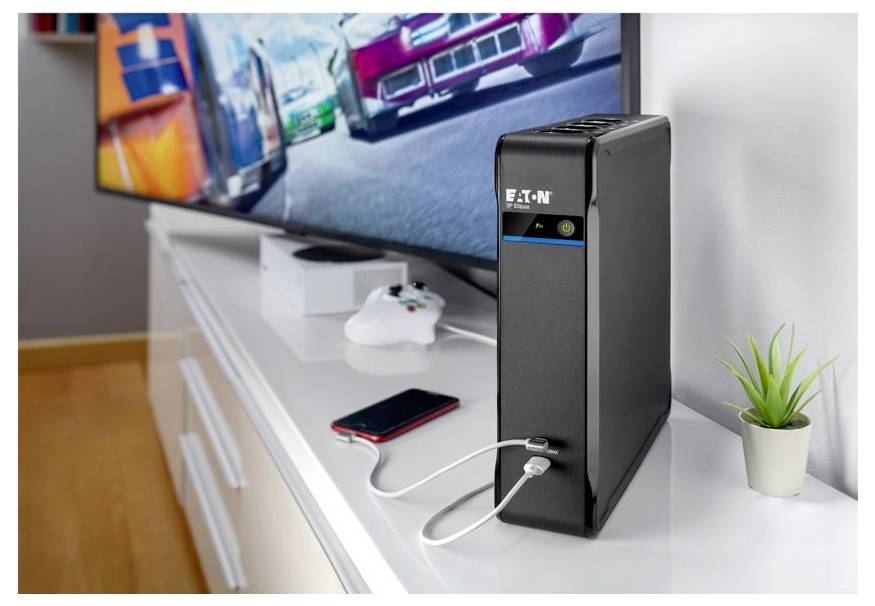

Black Eaton UPS on a white TV stand with a plugged-in smartphone charging cable, game controller, and small plant beside a television.

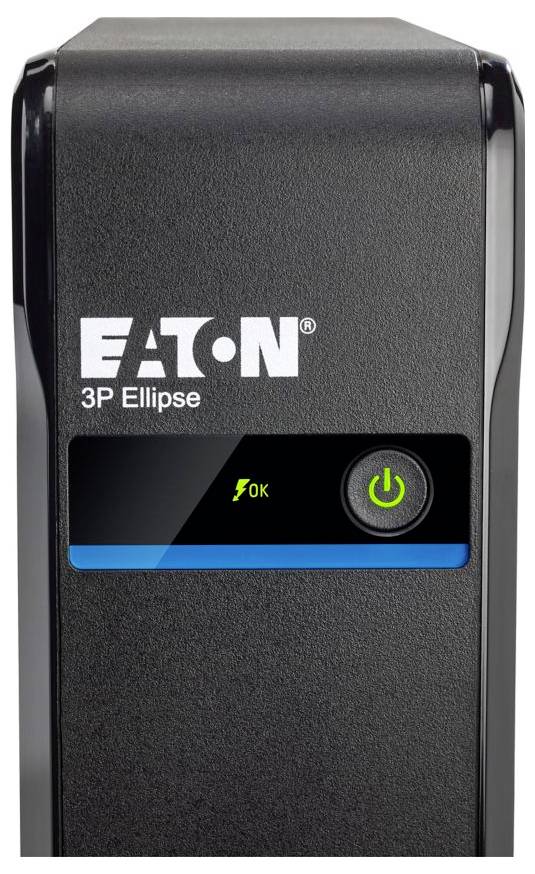

Front view of an Eaton 3P Ellipse UPS with power button lit green and status indicator showing 'OK'.

Black rectangular battery pack with attached power connectors and a label on top, shown on a white background.

1/11

Eaton

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eaton 3P Ellipse 1700 USB DIN/IT UPS 1700 VA

Standby (Offline)
1.7 kVA 1040 W
Waveform: Step by step
8 AC outputs
12 V, 9 Ah
Tower black
This text is machine translated.

Technical specifications

Number of AC outputs: 8 AC outputs

Product type: UPS

Nominal power: 1700 VA

No. of outputs: 8 x

Type: 3P Ellipse 1700 USB DIN/IT

Width: 81 mm

Height: 305 mm

Depth: 312 mm

Weight: 7.8 kg

Factory colour: Black

No. of USB A 2.0 ports: 2 x

Case type: Tower

Battery capacity: 9 Ah

Battery voltage: 12 V

10/100/1000 Mbps ports: 1 x

Max. operating noise: 25 dB

: 1040 W

Nominal load efficiency: 97 %

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Output power factor: 0.6

Number of batteries supported: 2

Relative humidity: 0 - 95 %

Power consumption (average operating): 32.2 W

Output power capacity: 1.7 kVA

Auto shut-off: yes

USB port: yes

Efficiency (ECO mode): 97 %

: yes

Quick installation guide: yes

Surge protection: yes

Input operation voltage (max): 284 V

Input operation voltage (min): 161 V

Output operation voltage (min): 161 V

Output operation voltage (max): 284 V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773640 Eaton 3P Ellipse 1700 USB DIN/IT UPS 1700 VA
