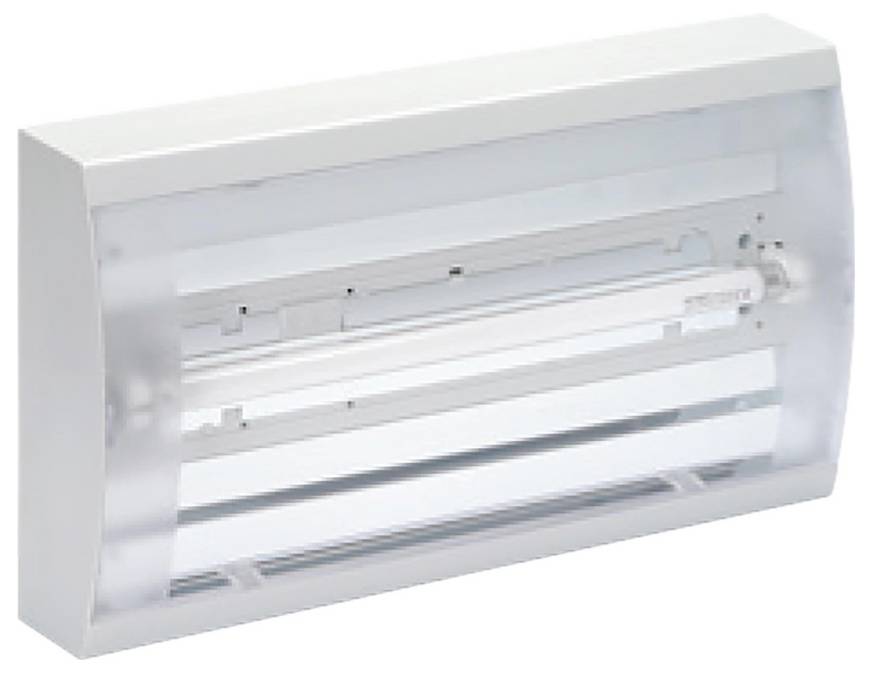

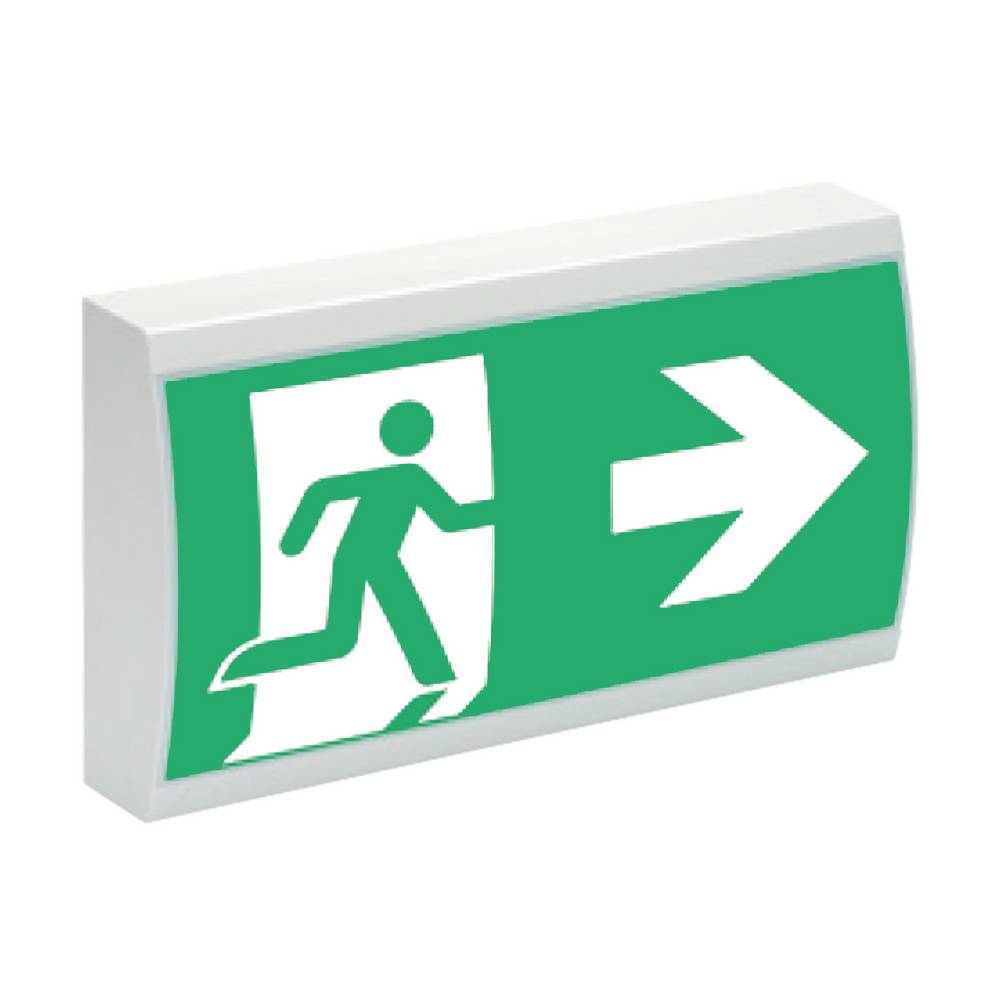

Eaton 40071349396 LED escape route lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Construction/installation
- Function: Rescue path marking
- Suitable for type of marking: Adhesive labels
- Type of marking: Single sided
- With pictogram: Yes
- Suitable for standby switching: Yes
- Suitable for continuous switching: Yes
- With remote switch connection: No.
- With remote control: No.
- Emergency monitoring system: Test button
- Emergency power supply system: Decentralized (single battery)
- NiCd rechargeable battery technology
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 1
- Version: Other
- Number of lamp heads: 24
- Housing material: Plastic
- RAL-Number housing: 7025
- Housing color: White
- Cover material: Transparent plastic
- Voltage type AC
- Nominal voltage 230..240 V
- Nominal current 57 - .63 mA
- Operating device: LED operating device current-controlled
- Removable operating device: No.
- Light distributor: Reflector
- Rated life L70/B50 at 25 °C: 50000 h
- Constant luminous flux regulation: No.
- Protection class (IP): IP41
- Impact strength: IK03
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1: 5..35 °C.
- Rated light current according to IEC 62722-2-1: 60 lm
- Max. System power 1.6 W
- Luminous flux in standby mode: 250 lm
- Colour temperature: 6500 K
- Power factor 0.5
- Detection range 32 m
- Nominal operation time 1 h
- Width 68 mm
- Height/depth 202 mm
- Length: 341 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 2
- Conductor cross-section: 2.5 mm²
- Connection type: Plug connection
- Dim
(L x W) 341 mm x 68 mm
- Product type
LED escape route lighting
- Operating voltage
230 V
240
1.6 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Number of pins
2
- Width
68 mm
- Depth
202 mm
IP41
- Protection class
II
- Factory colour
White
- Length
341 mm
- Colour
Daylight white
- Mounting type
Structure
Recess-mount
- Nominal current
57 mA
63 mA
- Total luminous flux
60 lm
- LEDs
1
6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795726 Eaton 40071349396 LED escape route lighting
User & Safety Instructions
User & Safety Instructions 3795726 Eaton 40071349396 LED escape route lighting
Description
Eaton SV EURO 1-1/D LED (SET) 1 H Autonomy
