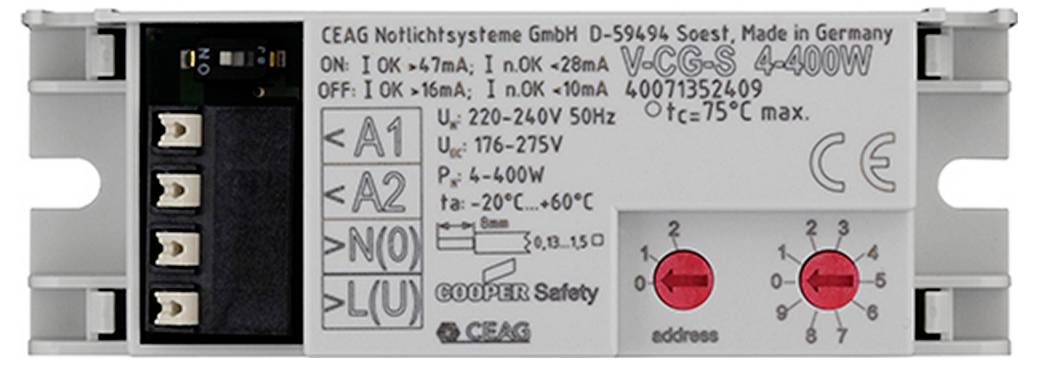

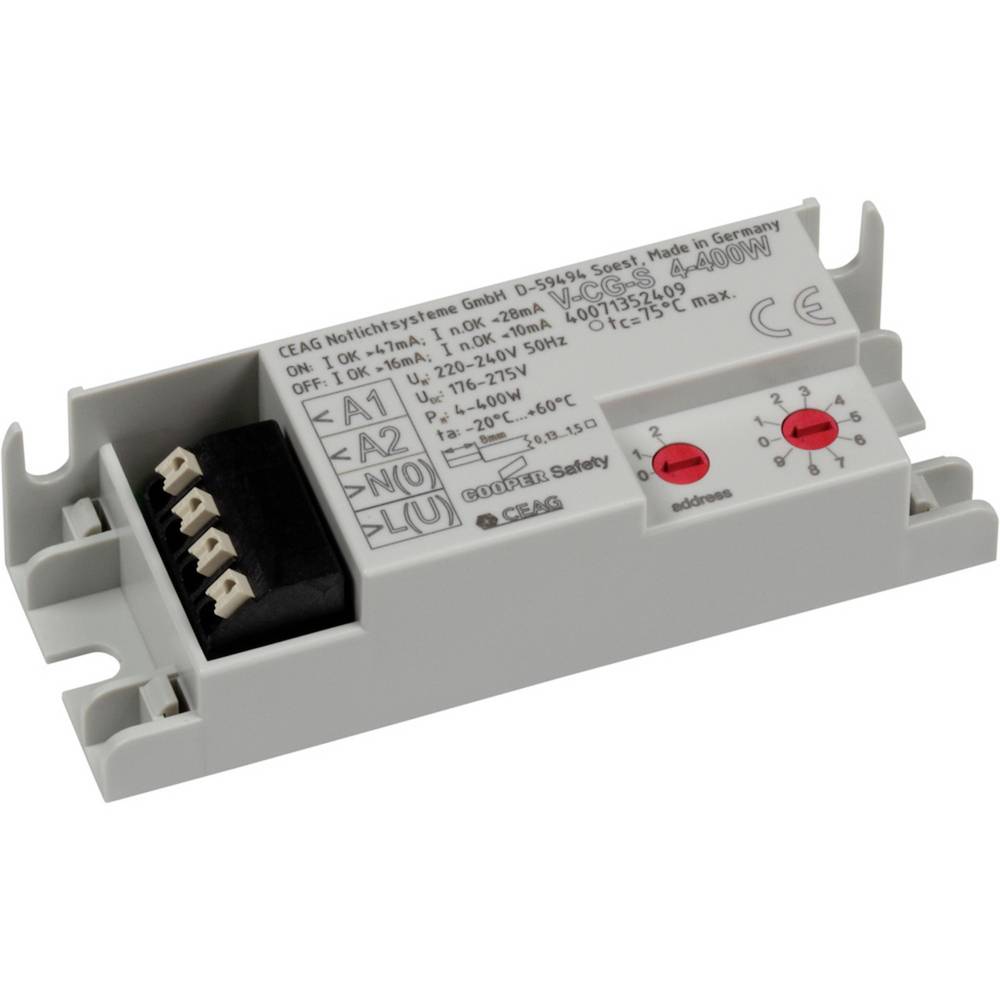

Eaton 40071352409 Emergency light power supply
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal voltage - max. 240 V
- Nominal voltage - min.: 220 V
- Protection class: I
- Nominal voltage range DC - max. 275 V
- Nominal voltage range DC - min.: 176 V
- Additional data cable required: No.
- Ambient temperature - max. 60 °C
- Min. Ambient temperature -20°C.
- Connection terminals (input): 1.5 mm²
- Connection terminals (output): 1.5 mm²
- ENEC certified: Yes
- Housing color: Grey
- Housing material: Flame-resistant polycarbonate/gray
- Lamp power 400 W
- Maximum number of monitored lights per circuit: 20
- Reverse polarity-protected socket terminals (In): Yes
- SLI technology: No.
- IOK (normal current referred) Level 1: 47 mA
- IOK (normal current referred) Level 2: 16 mA
- I not OK (residual current recorded) Level 1: 28 mA
- I not OK (residual current recorded) Level 2: 10 mA
- Product brand: Eaton
- Protection class (IP) IP20
- Maximum allowed test point temperature: 75°C.
- Cable length - max. 50 m
- Output power - max. 400 W
- Switching frequency 60 Hz
- Standby power loss at 230 V/50 Hz: 0.5 W
- Protection class according to IEC 61140: None
- Dim
(W x H x D) 30 x 21 x 85 mm
- Product type
Emergency light power supply
- Weight
350 g
- Width
30 mm
- Height
21 mm
- Depth
85 mm
- Factory colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795711 Eaton 40071352409 Emergency light power supply
User & Safety Instructions
User & Safety Instructions 3795711 Eaton 40071352409 Emergency light power supply
Description
Eaton monitoring interfaces CG-S module V-CG-SE 4-400W monitoring module (without packaging)
