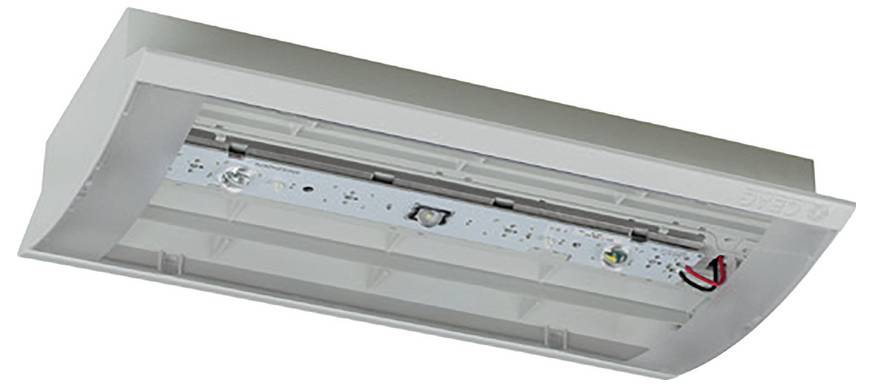

Eaton 40071356810 LED escape route lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Ceiling mounting
- Function: Emergency exit lighting
- Suitable for type of labeling: Insert sheet/sheet
- With pictogram: No.
- Suitable for standby switching: Yes
- Suitable for continuous switching: Yes
- With remote switch connection: Yes
- With remote control: No.
- Emergency power supply system: Central (central)
- Bulb: LED not replaceable
- With bulb: Yes
- Socket: Without
- Number of lamp heads: 1
- Housing material: Plastic
- RAL-Number housing: 7025
- Housing color: Grey
- Cover material: Transparent plastic
- Voltage type DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- Removable operating device: No.
- Light: Focus lens
- Rated life L70/B50 at 25 °C: 50000 h
- Constant luminous flux regulation: No.
- Protection class (IP): IP41
- Impact strength: IK03
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1: -20..40°C.
- Rated light current according to IEC 62722-2-1: 320 lm
- Max. System power 4.4 W
- Luminous flux in standby mode: 320 lm
- Colour temperature: 6500 K
- Power factor 0.579
- Detection range 32 m
- Width: 197 mm
- Height/depth 60 mm
- Length: 340 mm
- Outer diameter: 380 mm
- Mounting width 70 mm
- Mounting length 240 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 3
- Conductor cross-section: 2.5 mm²
- Connection type: Plug connection
- Factory colour
Grey
- Depth
60 mm
- Length
340 mm
- Width
197 mm
- Recess width
70 mm
IP41
- Bulb type
LED (monochrome)
- Colour
Daylight white
- Material
Plastic
- Recess depth
240 mm
- Mounting type
Ceiling
- Outside Ø
380 mm
- Total luminous flux
320 lm
- Number of pins
3
- Operating voltage
220 V
240
4.4 W
6500 K
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795727 Eaton 40071356810 LED escape route lighting
User & Safety Instructions
User & Safety Instructions 3795727 Eaton 40071356810 LED escape route lighting
Description
Style II 22011 LED SL CG-S lamp casing with LED supply in CG-S technology and LED circuit board 3 x 1 W for security lighting, without disk, without quick assembly kit
