Buy Eaton 400NHG03BI NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = D03 500 V 3 pc(s)

Industrial fuse with marking '400A'. Rectangular grey housing with metal contacts at the top and bottom. Used for overcurrent protection.

Image similar

Electrical NH fuse insert with '400A' labelling, recessed contacts, suitable for high-current applications, red indicator.

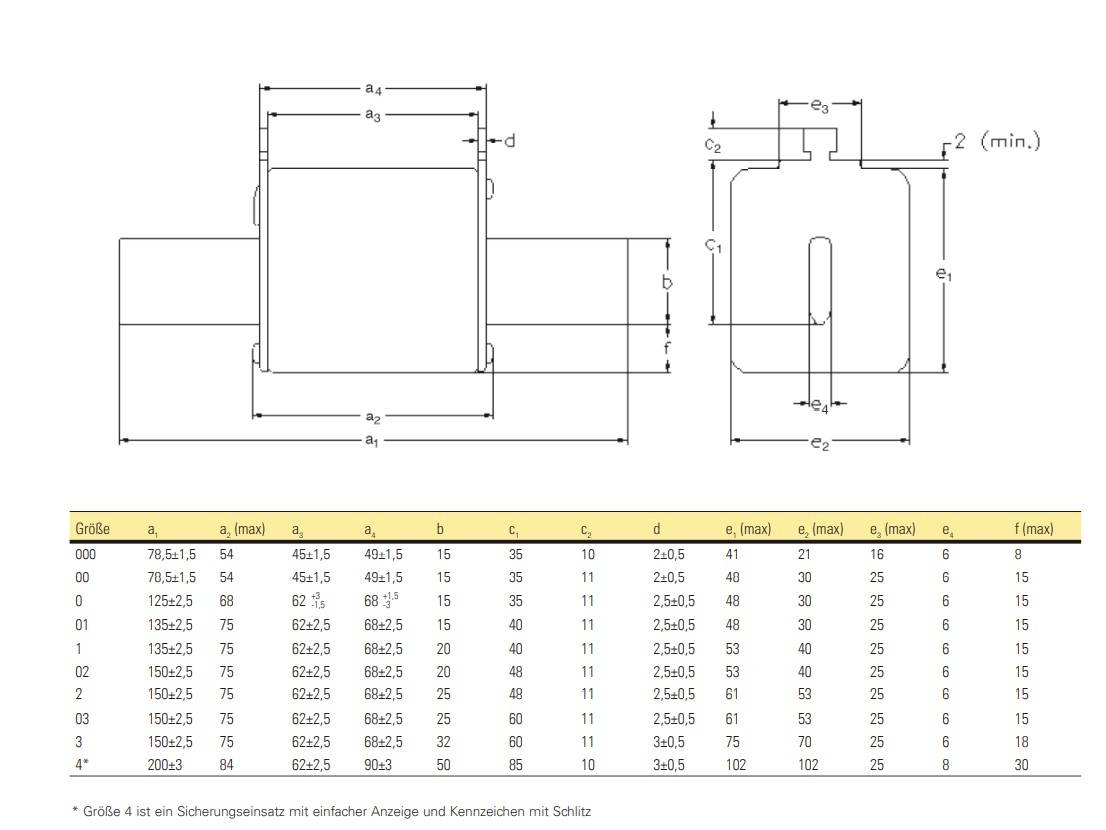

'Diagram of a fuse with dimensions: width c, height a, length b. Table below shows sizes 000 to 4 with specific measurements.'

1/3

Image similar

Product type

NH fuse

Fuse size

D03

Type

Insulated grip plates made of metal

Content

3 pc(s)

Model

with blown fuse indicator

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 3 pc(s))

Set(s)

Total (€ 16.80 / piece)

€ 50.41

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fuse link 400NHG03BI

Dual displayHigh breaking capacityVarious insulated labels availableIEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE-certification

Technical specifications

Type: Insulated grip plates made of metal

Product type: NH fuse

Fuse size: D03

Content: 3 pc(s)

Model: with blown fuse indicator

Switch-off capacity: 120 kA

Duty class: gG
gL

Nominal voltage: 500 V

Suitable for: Fuse size 000 - 4

: AC

: 400 A

: 120 A

: gL/gG (cable protection/equipment protection)

: Combination fuse status indicator

: 500

: 30

: TRUE

: NH03

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2622374 Eaton 400NHG03BI NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = D03 500 V 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2622374 Eaton 400NHG03BI NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = D03 500 V 3 pc(s)

Information

Information 2622374 Eaton 400NHG03BI NH fuse with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = D03 500 V 3 pc(s)

Description

Dual display systemBussman's patented dual display provides a clear display and provides an extremely reliable local and remote* display. This reduces the time and cost of replacing backup operations.* Using an optional microswitchLow power lossBussmann's "Low Watts Loss" (low loss of current) fuse inserts reduce the general operating costs as well as carbon emissions through lower energy consumption and less heat transfer to the devices.Worldwide legal complianceBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.
