Name: Eaton 5P1550GR-L 19" UPS 1550 VA
Brand: Eaton
SKU: 2362689

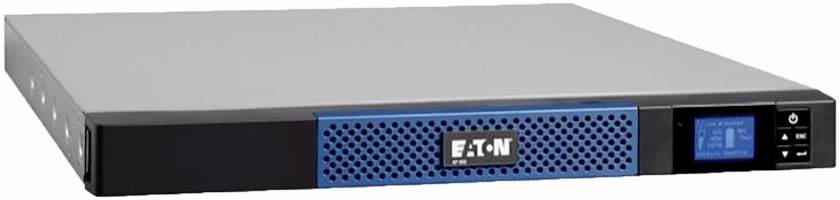

UPS (uninterruptible power supply) device by Eaton. Rectangular metal enclosure, front with blue mesh grille and LCD display.

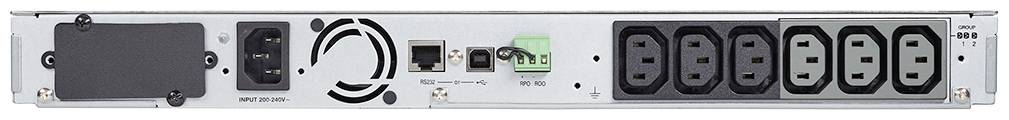

Rear view of an electronic device with multiple power connections and a ventilation opening, Ethernet and USB ports in the centre.

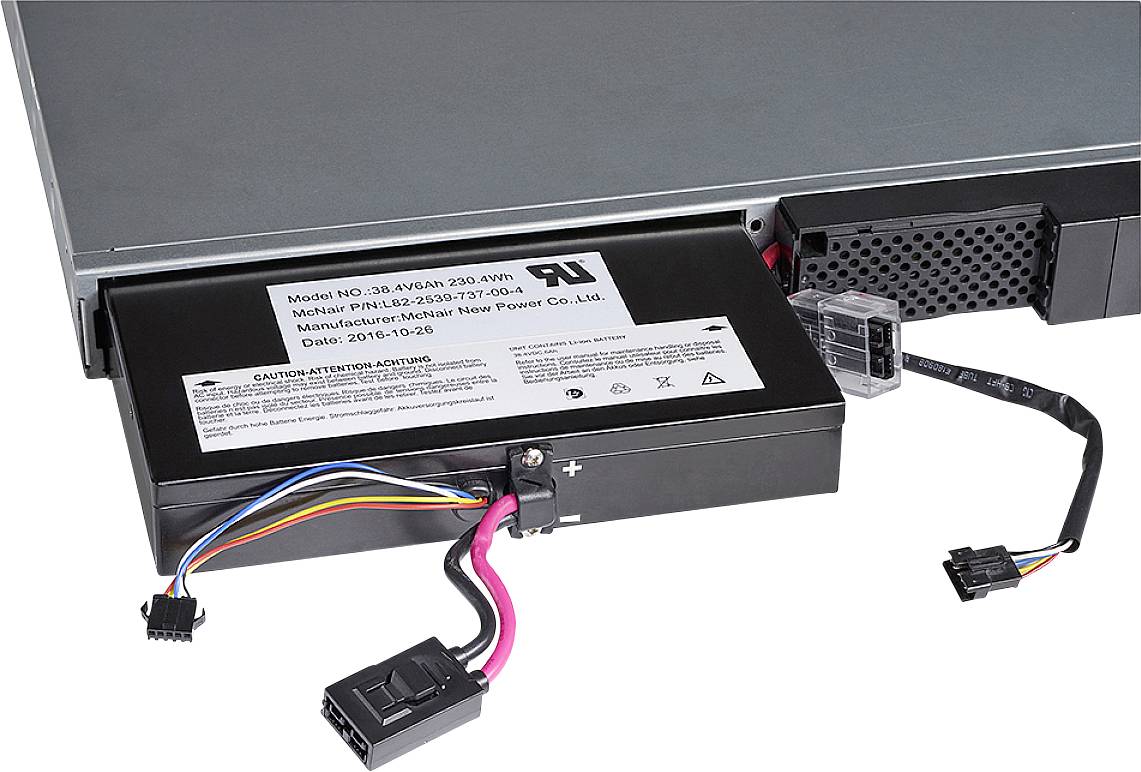

A battery pack is being removed from an electronic device. Various cables are connected to the battery.

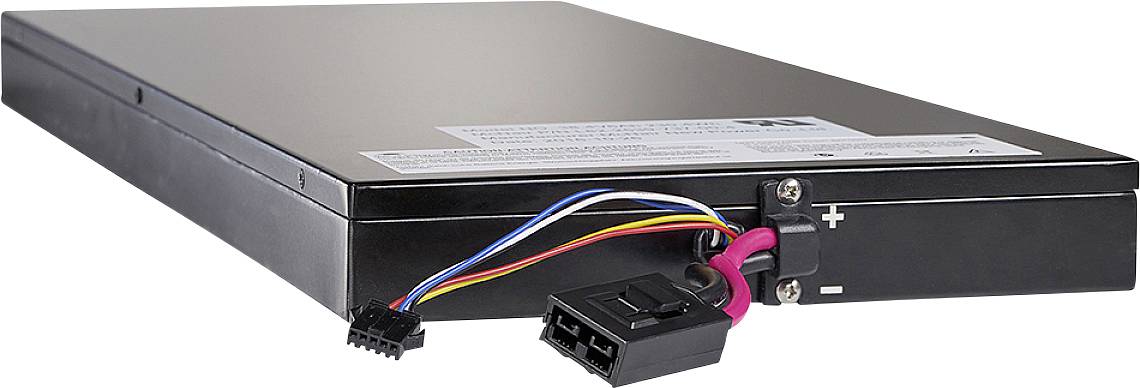

Black, rectangular lithium-ion battery with multiple cables and connectors extending from the right side.

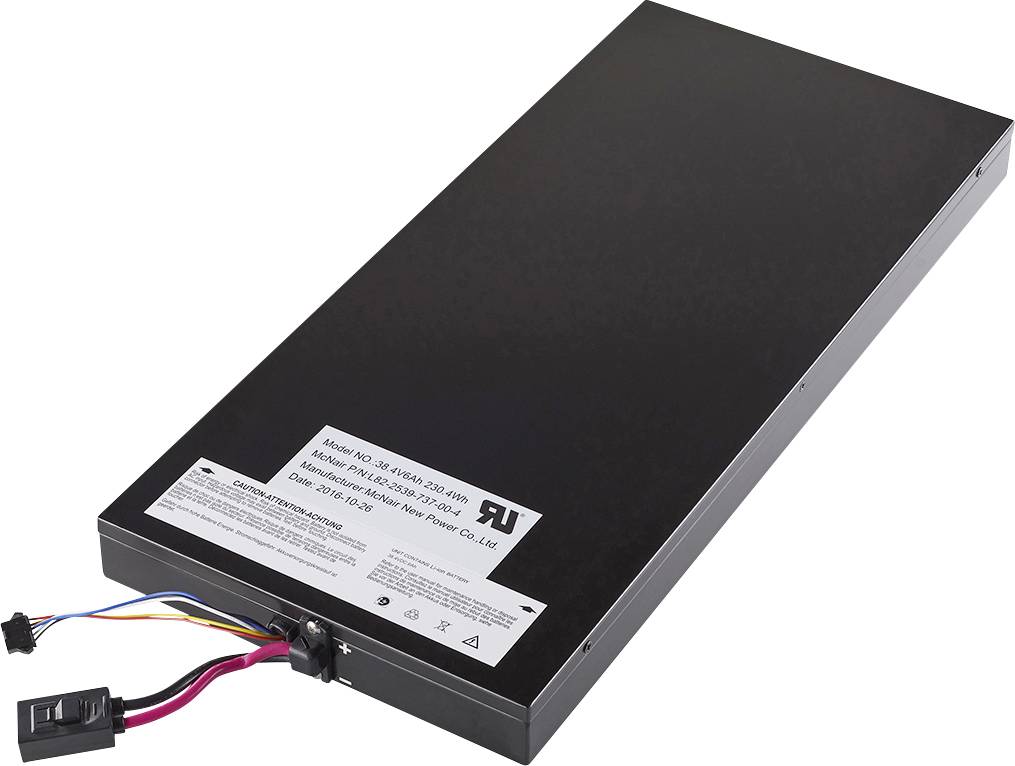

Flat black-grey battery with cables and a nameplate displaying technical performance information.

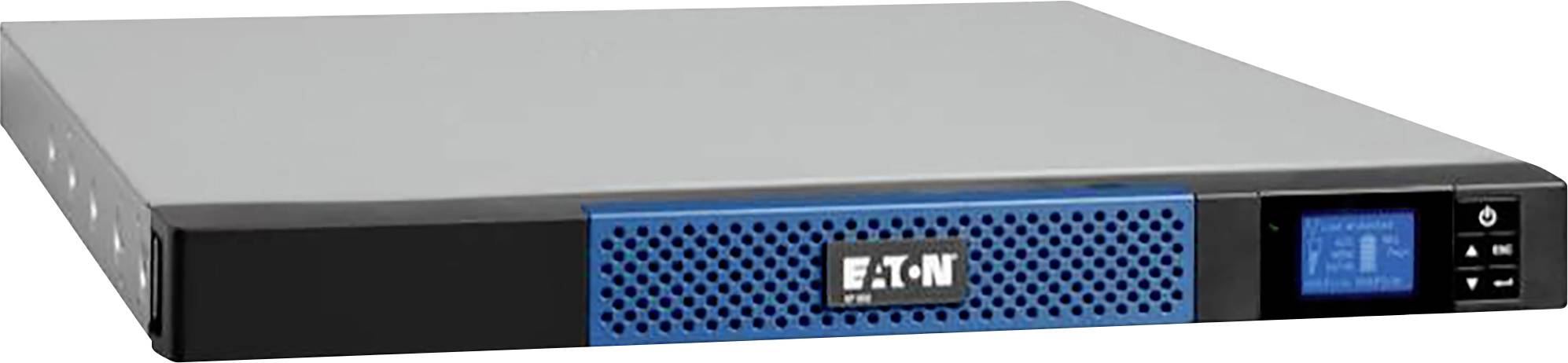

A flat black and silver server or UPS device with a blue grille and a small display on the right side.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Eaton 5P 1550G Rack1U Li-Ion - 1550 / 1100 (VA/Watt) UPS

Graphical LCD display, standard USB & RS232 interface
Remote on/off switching, energy measurement
Ups management software on CD-ROM with data cable included

Technical specifications

Product type: 19" UPS

Nominal power: 1550 VA

No. of outputs: 6 x

with surge protection: 6

of which battery-buffered: 6

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card

Bridging time normal load: 9 min

Bridging time, max load: 3 min

Surge protection for: Mains outlets

Type: 5P1550GR-L

Width: 438 mm

Height: 43.2 mm

Depth: 554 mm

Weight: 16.3 kg

UKCA: yes

Documents & Downloads

Information

Test Summary Report 2362689 Eaton 5P1550GR-L 19" UPS 1550 VA

Security datasheet

Security datasheet 2362689 Eaton 5P1550GR-L 19" UPS 1550 VA

Description

Eaton 5P - (ENHANCED LINE INTERACTIVE, VI-SS-311 in accordance with EN 62040-3) - Power failure and overvoltage protection with voltage control AND sine output - Application area: Compact high-performance protection for , workstation, server and network equipment

This text is machine translated.

Features

Consumer connection via IEC320 10A cold device plug
All rack models come standard with a complete 19" mounting kit ( 650VA 19" bracket, 850-1550VA mounting rails).

Scope of delivery

IEC connection cable

System requirements

Windows XP, Windows Vista and Windows 7, 8 & 89

Description

Features

Consumer connection via IEC320 10A cold device plug
All rack models come standard with a complete 19" mounting kit ( 650VA 19" bracket, 850-1550VA mounting rails).
