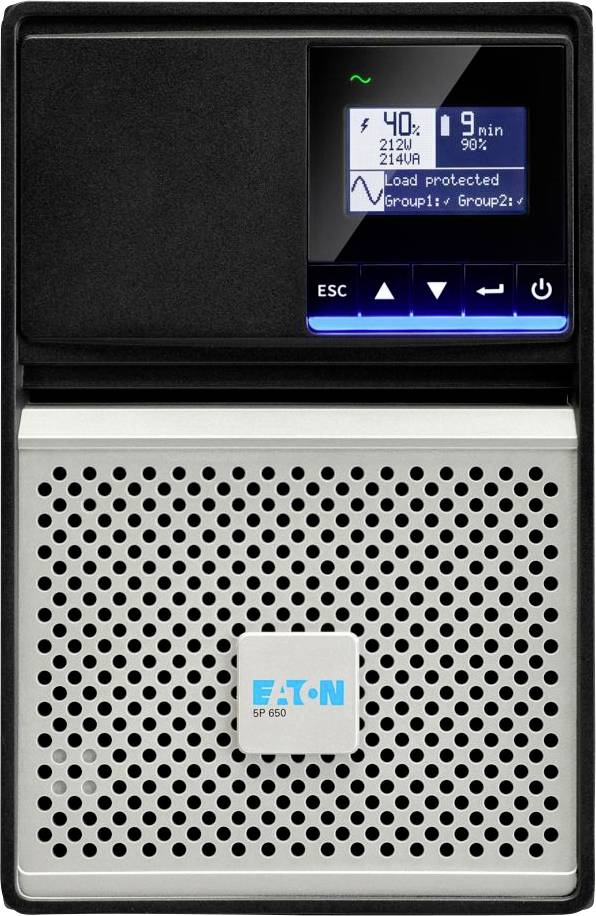

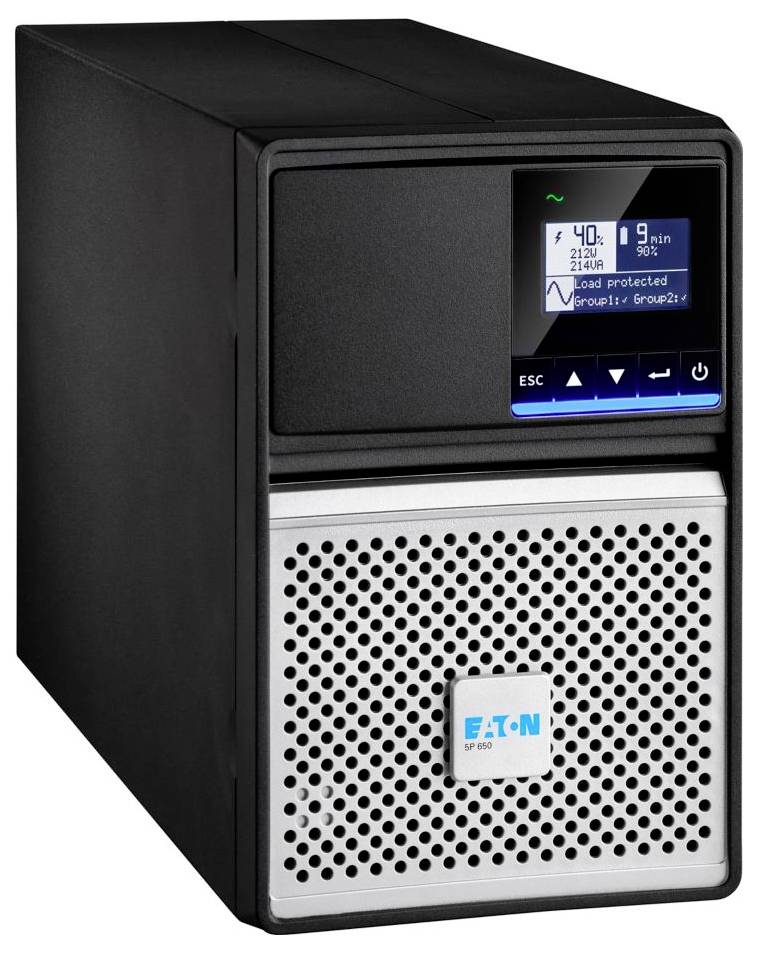

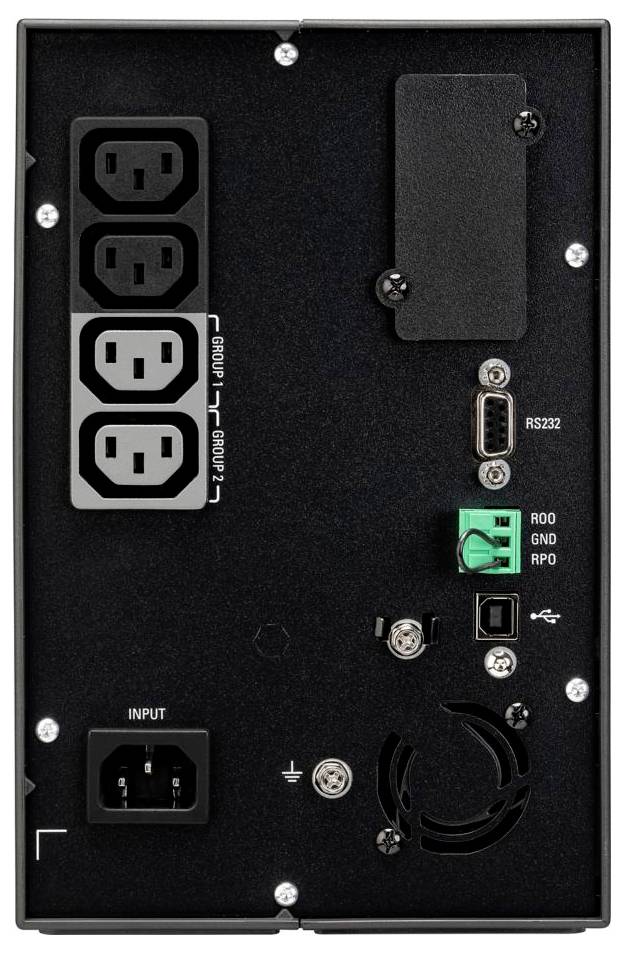

Eaton 5P650IG2 UPS 650 VA
EAN:
Part number:
Item no:
Eaton 5P Gen2 Uninterruptible Power Supply (UPS) Line-Interactive 520 W 8 AC-outputs
Highlights & Details
- Line interactive
- 520 W
- Waveform: Sinusoidal
- 8 AC outputs
- Lead acid 12 V 9 Ah
- Tower black, silver
- This text is machine translated.
Technical specifications
- Battery technology: Lead acid
- Product color: Black, silver
- Product type
UPS
- Nominal power
650 VA
- No. of outputs
8 x
- Type
5P650IG2
- Width
150 mm
- Height
233 mm
- Depth
345 mm
- Weight
7.9 kg
- Case type
Tower
- Battery voltage
12 V
- Max. operating noise
35 dB
520 W
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Number of batteries supported
1
- Serial ports quantity
1
- Noise level
35 dB
- Auto shut-off
yes
- USB port
yes
- AC outlets quantity
8 AC-Ausgänge
- Battery voltage
12 V
- Quick installation guide
yes
- Efficiency
98.2 %
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 90 %
- Battery capacity
9 Ah
- Input operation voltage (max)
294 V
- Input operation voltage (min)
160 V
- Output operation voltage (max)
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3407510 Eaton 5P650IG2 UPS 650 VA
