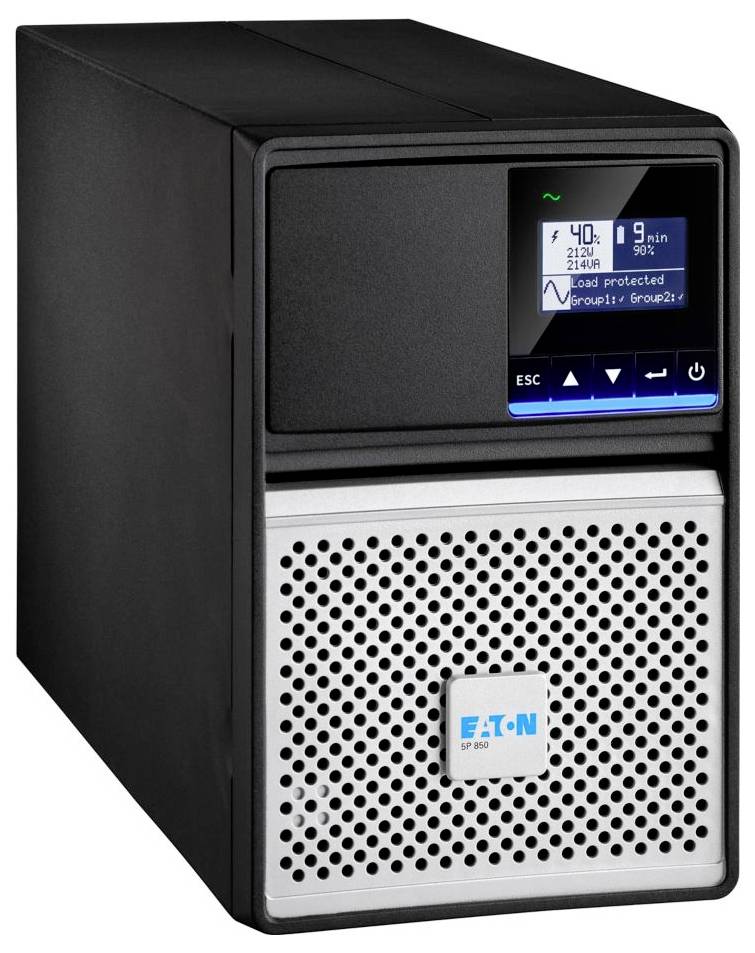

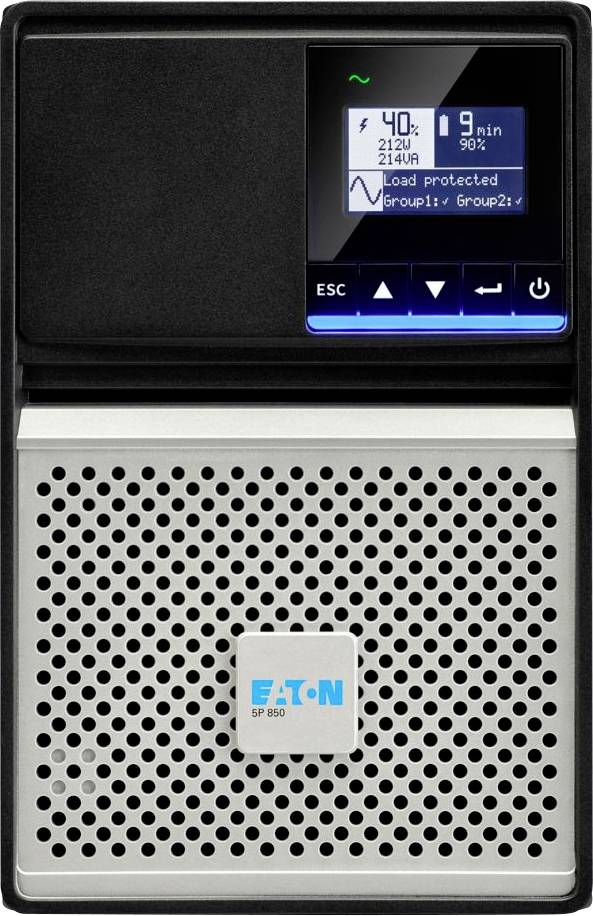

Eaton 5P850IG2 UPS 850 VA
EAN:
Part number:
Item no:
Eaton 5P850IG2 uninterruptible power supply (UPS) line-interactive 680 W 6 AC outputs
Highlights & Details
- Line interactive
- 680 W
- Waveform: Sinusoidal
- 6 AC outputs
- Lead acid 12 V 7 Ah
- Tower black, silver
- This text is machine translated.
Technical specifications
- Battery technology: Lead acid
- Product color: Black, silver
- Product type
UPS
- Nominal power
850 VA
- No. of outputs
6 x
- Type
5P850IG2
- Width
150 mm
- Height
233 mm
- Depth
345 mm
- Weight
10.2 kg
- Case type
Tower
- Battery voltage
12 V
- Max. operating noise
35 dB
680 W
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Output power factor
0.8
- Number of batteries supported
2
- Serial ports quantity
1
- Noise level
35 dB
- Rack mount kit
no
- Auto shut-off
yes
- USB port
yes
- AC outlets quantity
6 AC-Ausgänge
- Battery voltage
12 V
- Quick installation guide
yes
- Efficiency
98 %
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 90 %
- Battery capacity
7 Ah
- Input operation voltage (max)
294 V
- Input operation voltage (min)
160 V
- Output operation voltage (max)
230 V
