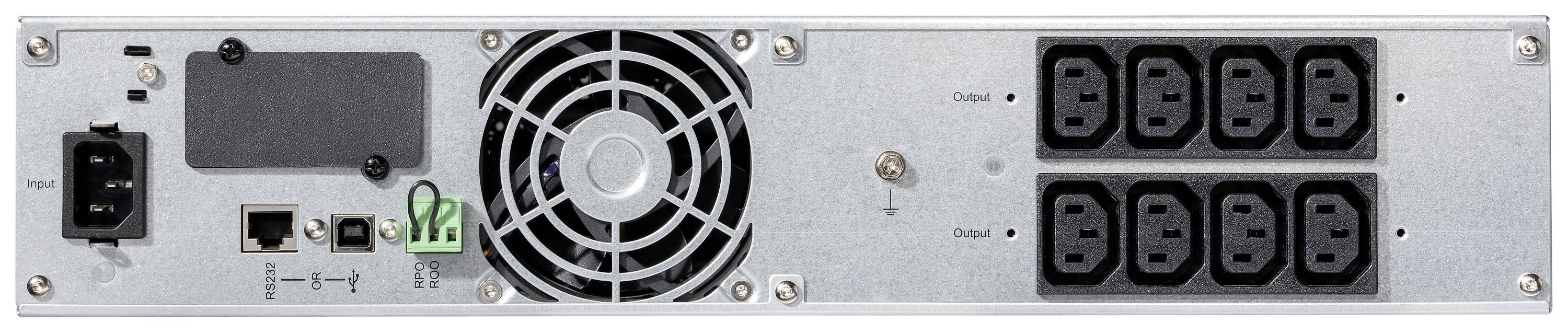

Back of an electrical device with a fan, power connection, Ethernet port and six sockets, marked as 'Output 1-3'.

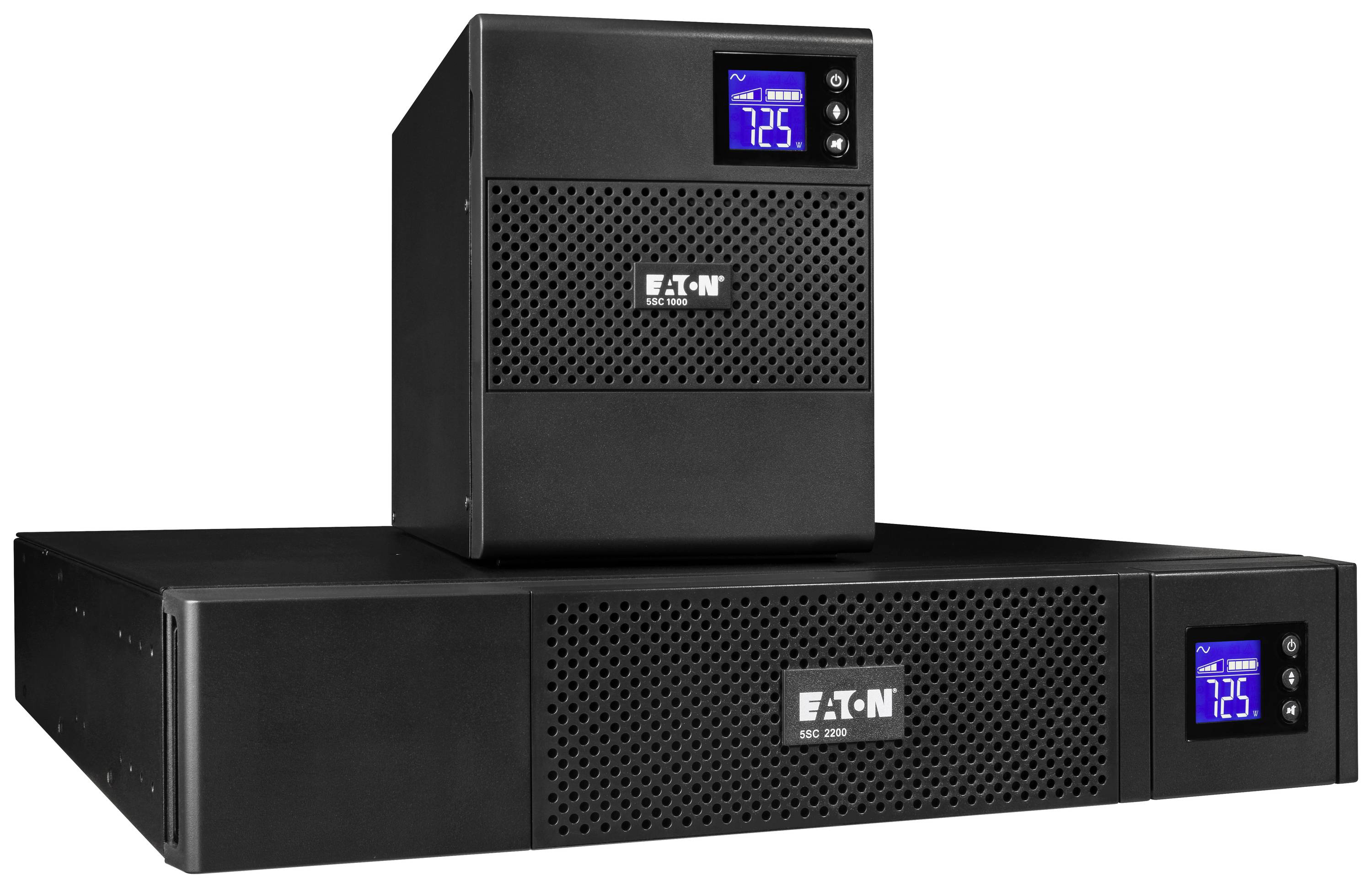

Two black Eaton UPS systems with blue displays showing temperature. One is stacked on top of the other.

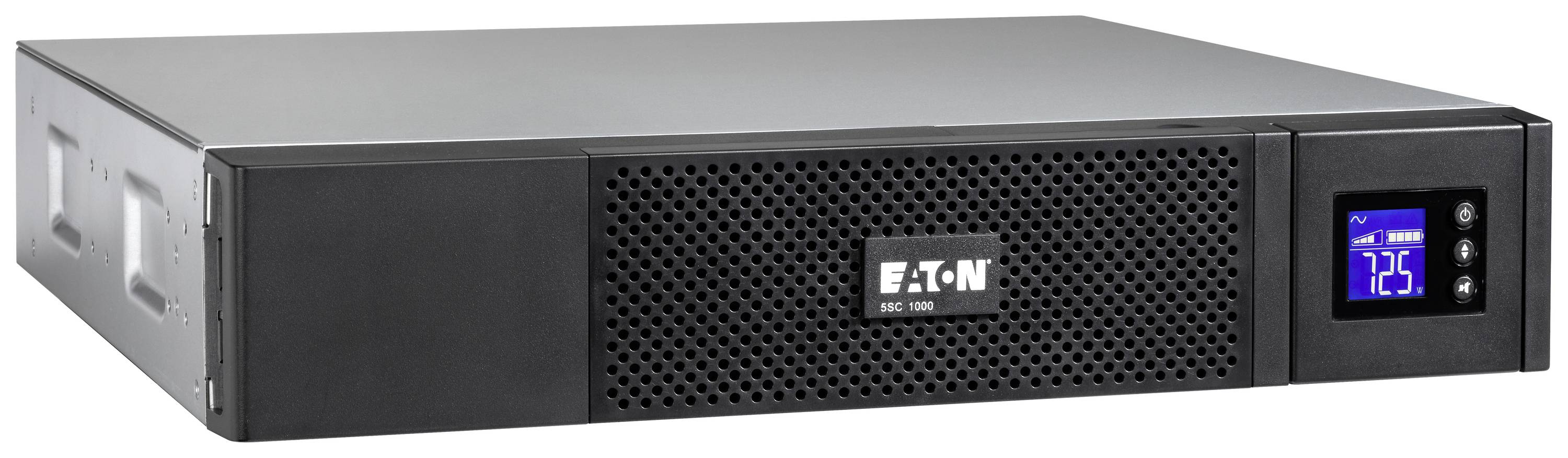

A black Eaton uninterruptible power supply (UPS) device with a blue display shows the charge status; providing continuous power supply.

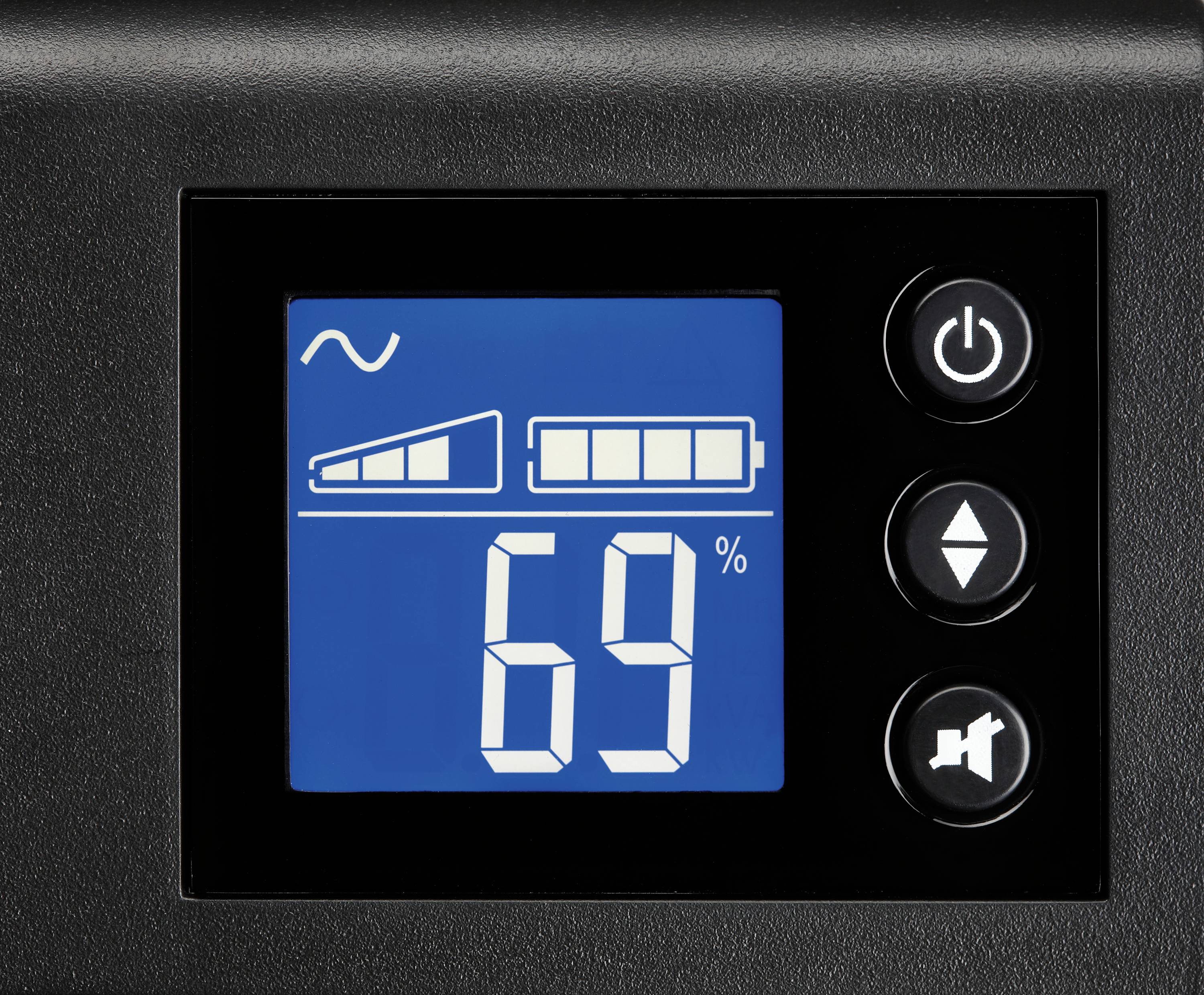

LCD display with charging bar at 69%, wavy line in top left corner, and four symbol buttons: Power, Up/Down, Dog symbol.

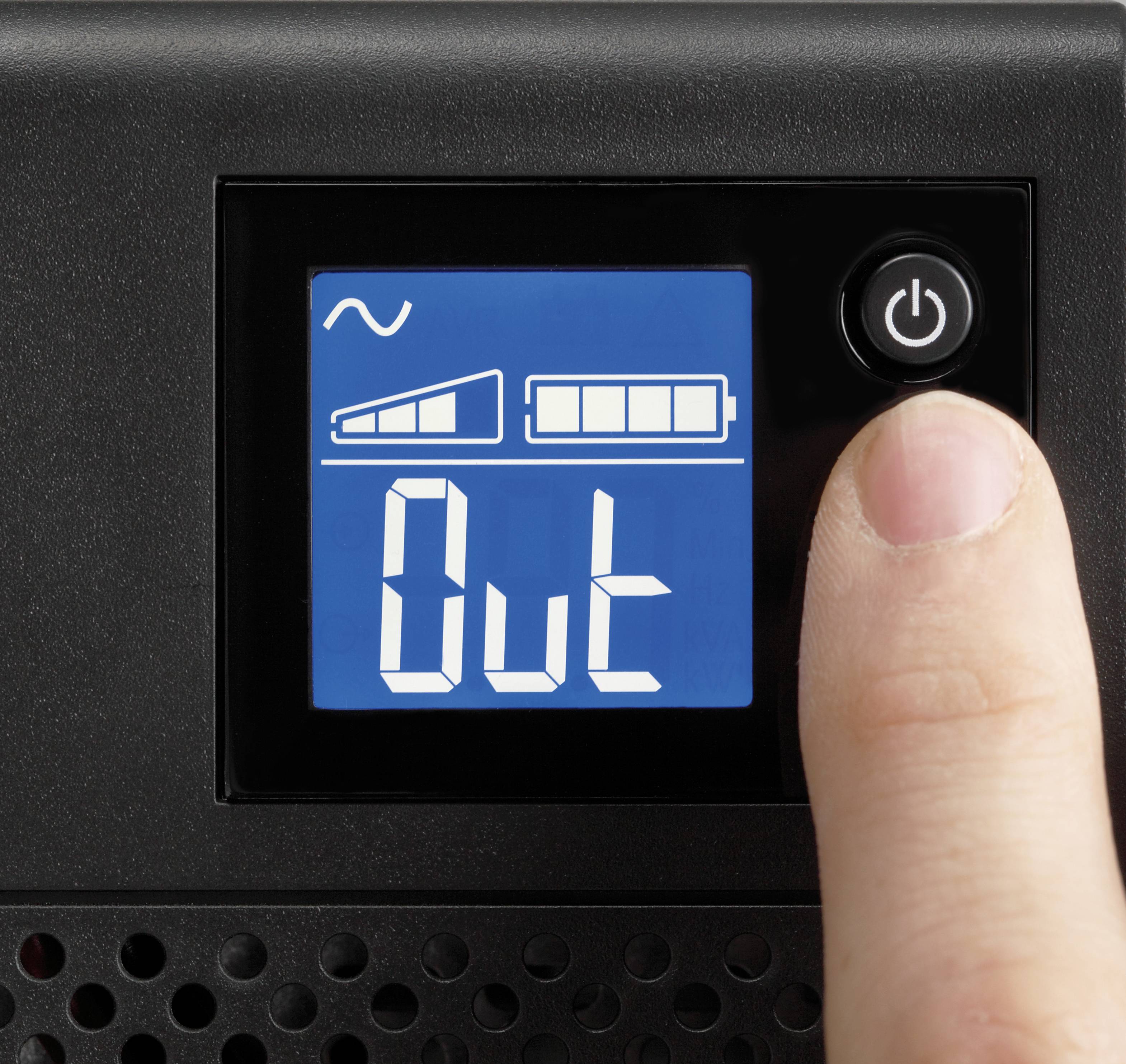

A hand touches the power button of an electronic device with a display. The display shows a charging bar symbol and 'Out'.

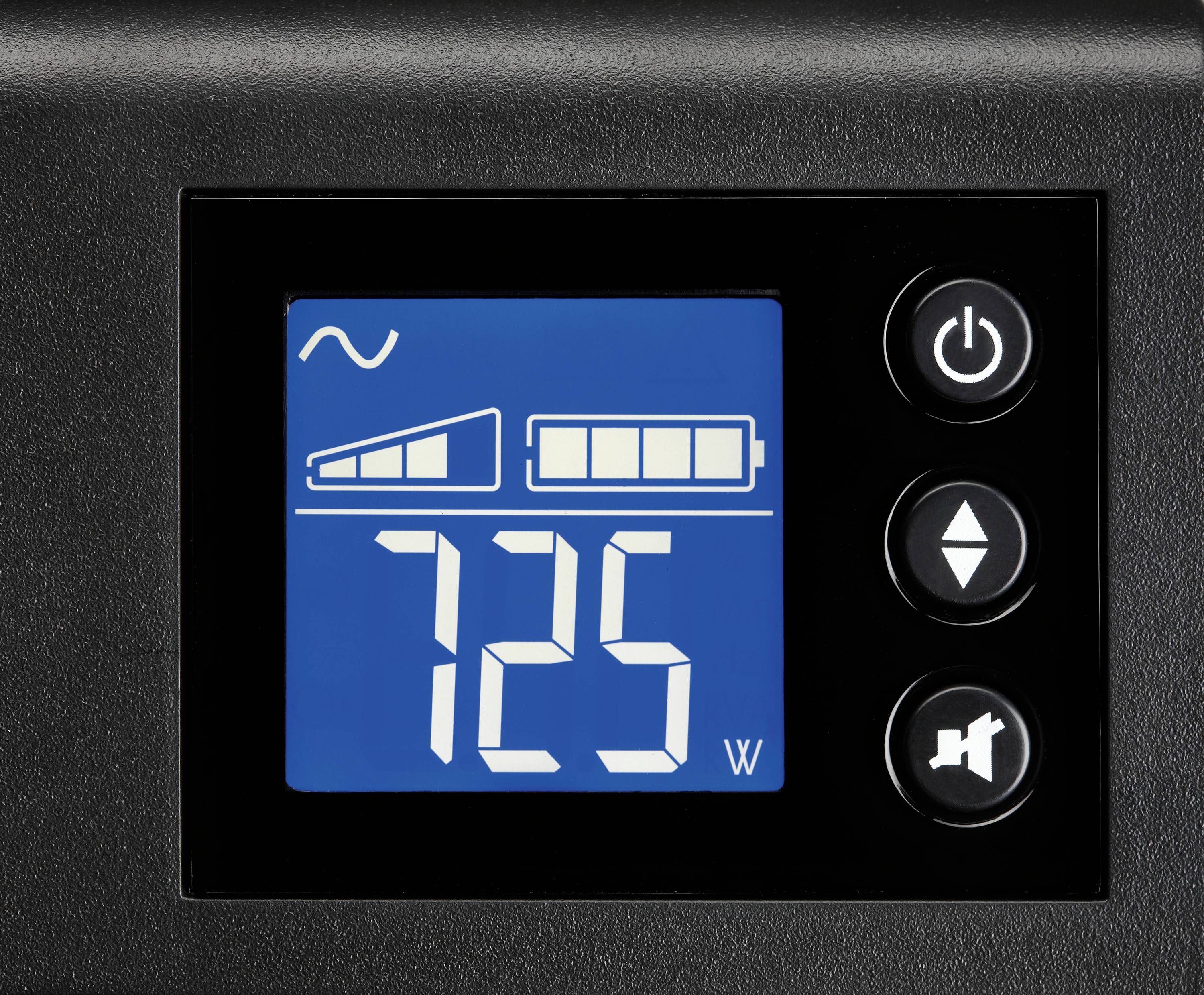

Digital display of a device shows '725 W' and a battery status. Three buttons are visible next to it.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 5SC 1000i Rack2U - 1000/700 (VA/Watt) UPS

Highlights & Details

LCD display, ABM technology
Incl. 2 IEC320/C14 to C13 consumer connection cables
USB + RS232 interface, incl. cable

Technical specifications

Product type: 19" UPS

Nominal power: 1000 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card

Bridging time normal load: 12 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets

Type: 5SC1000IR

Width: 440 mm

Height: 86.2 mm

Depth: 405 mm

Weight: 14.96 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362685 Eaton 5SC1000IR 19" UPS 1000 VA

Description

Eaton 5SC - class VI-SS-311 in accordance with EN 62040-3 - voltage protection with sine output for small to medium-sized systems - Application area: Reliably protects smaller servers in office and industrial environments, telephone systems, safety technology, e.g. file/print server and industrial controls
