Buy Eaton 5SC1500IR 19" UPS 1500 VA

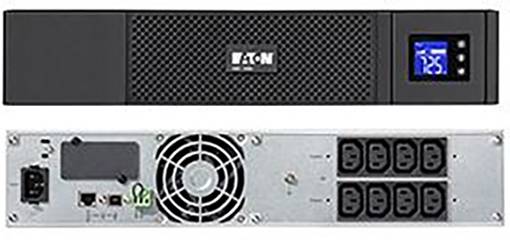

The image shows an Eaton uninterruptible power supply (UPS) unit, with both front and rear views. The front features a display, while the rear shows multiple socket connections.

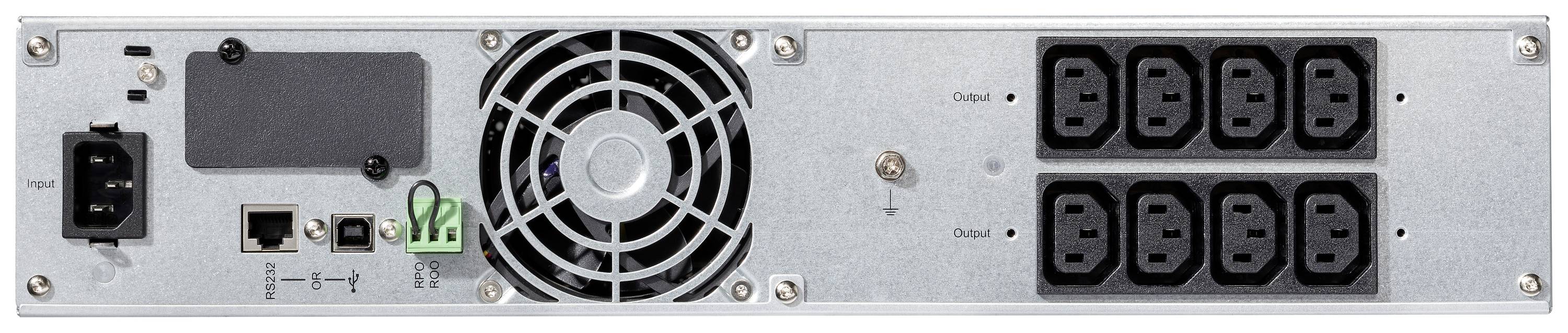

Back of a technical device unit with multiple power connections, a fan, and network interfaces.

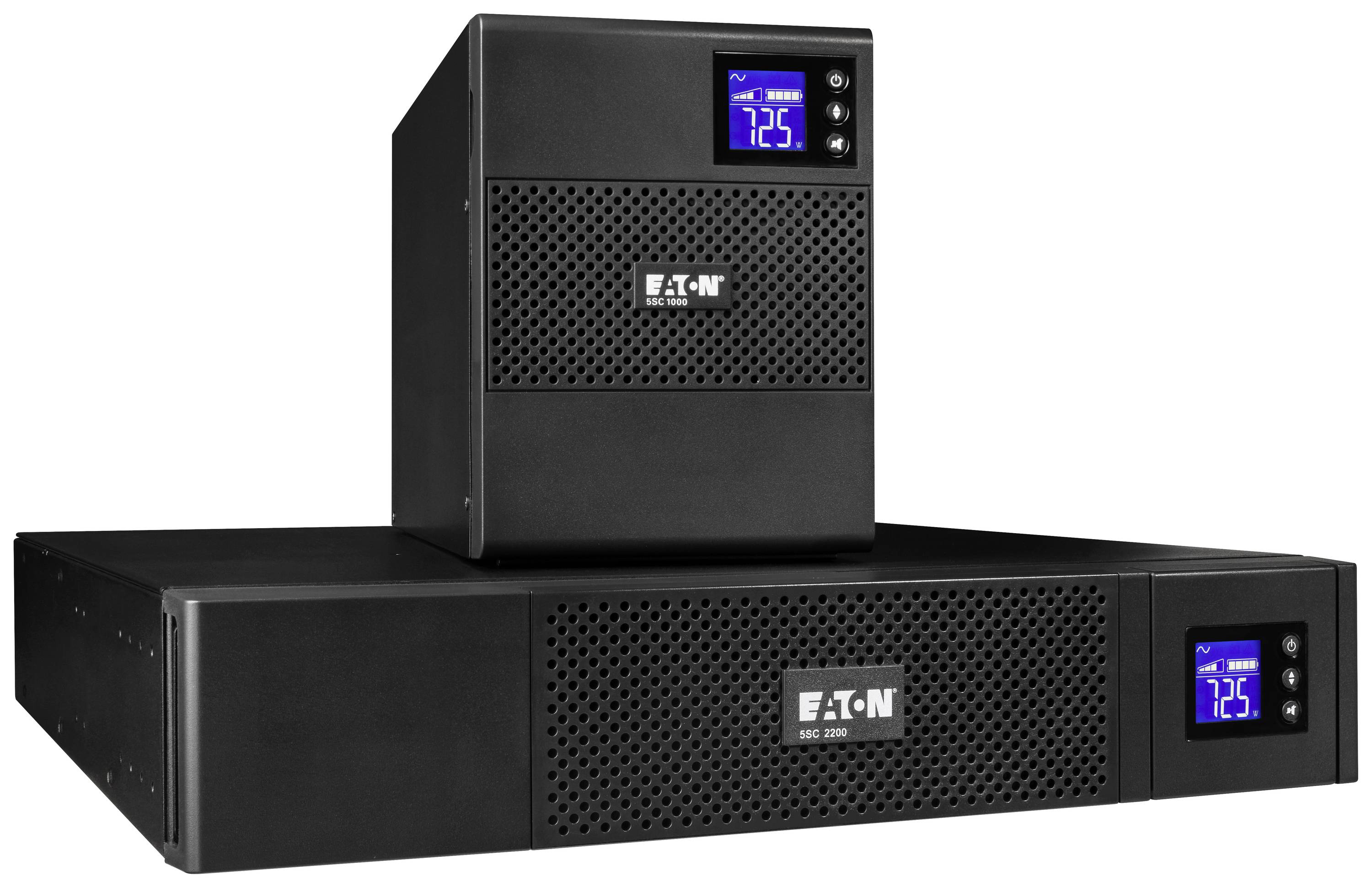

Two uninterruptible power supplies (UPSs) from Eaton with digital displays; the upper one is smaller, the lower one larger.

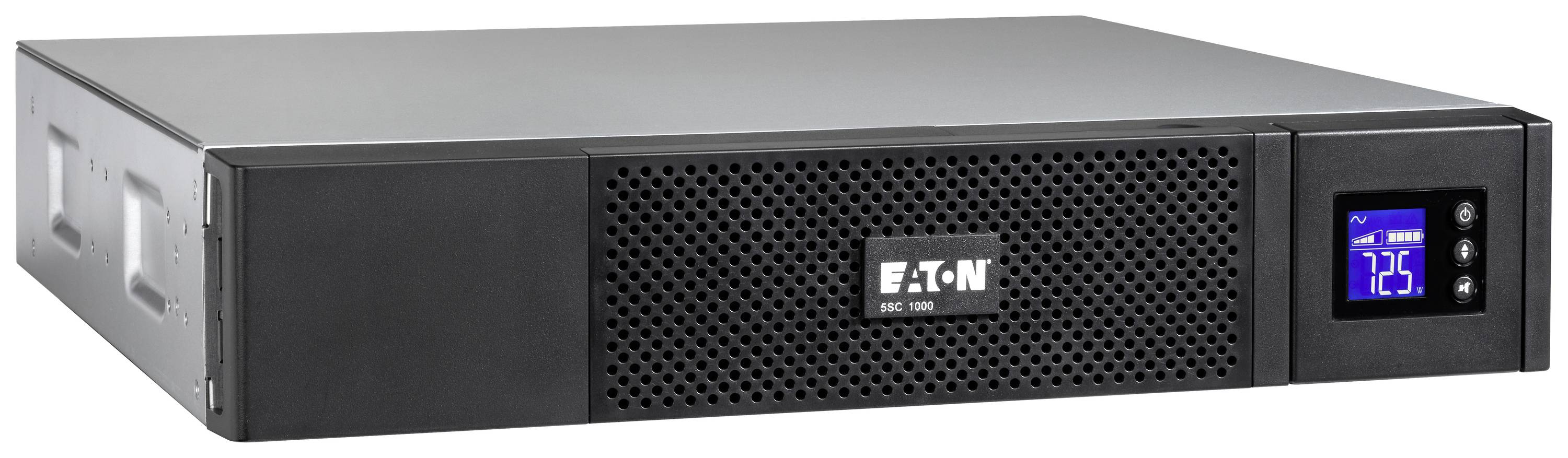

Black Eaton uninterruptible power supply (UPS) in rack format with digital display showing '725'. Designed for continuous power provision.

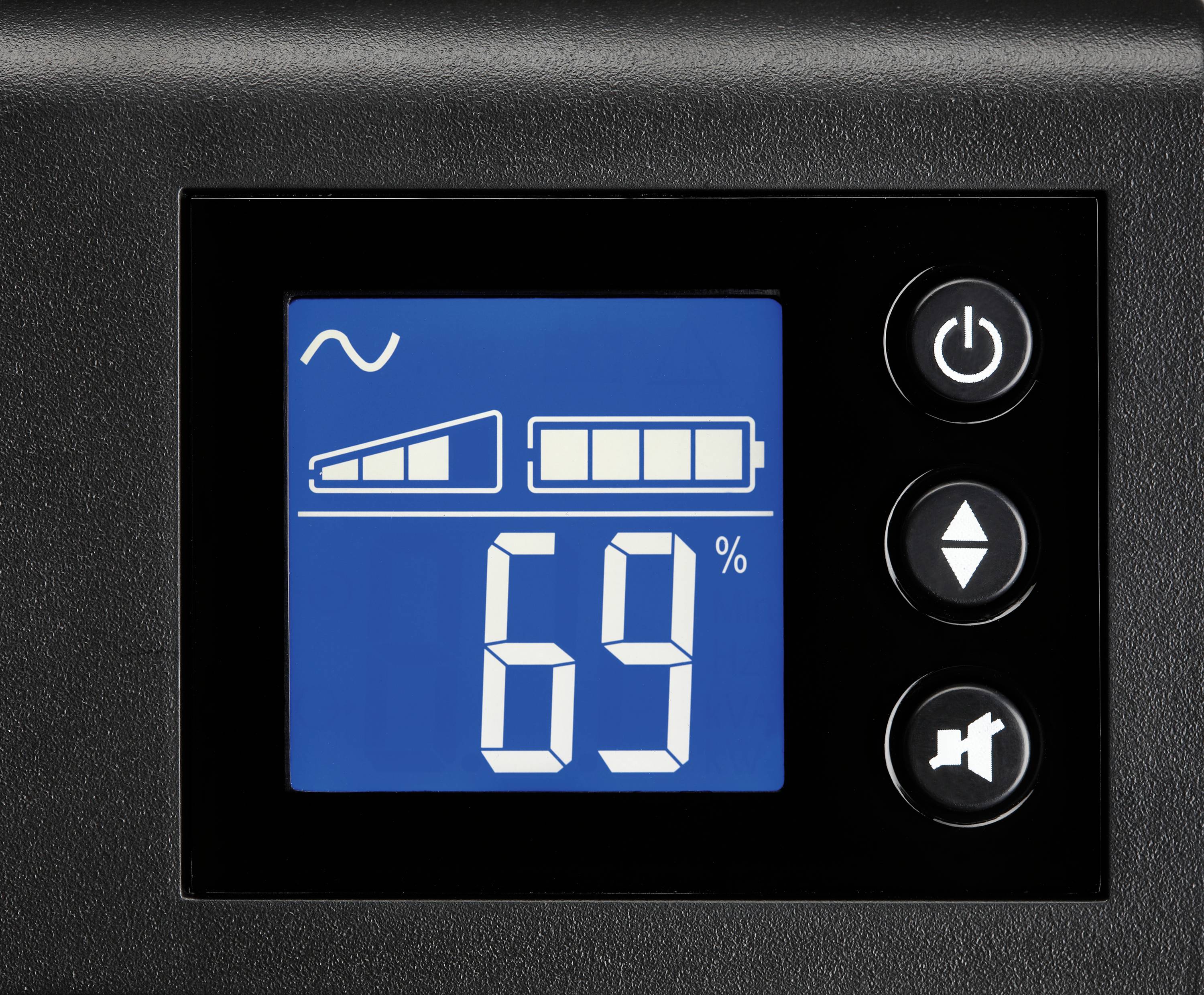

Display of an electronic device with charging indicator at 69%. Three control buttons are visible: On/Off, Up/Down.

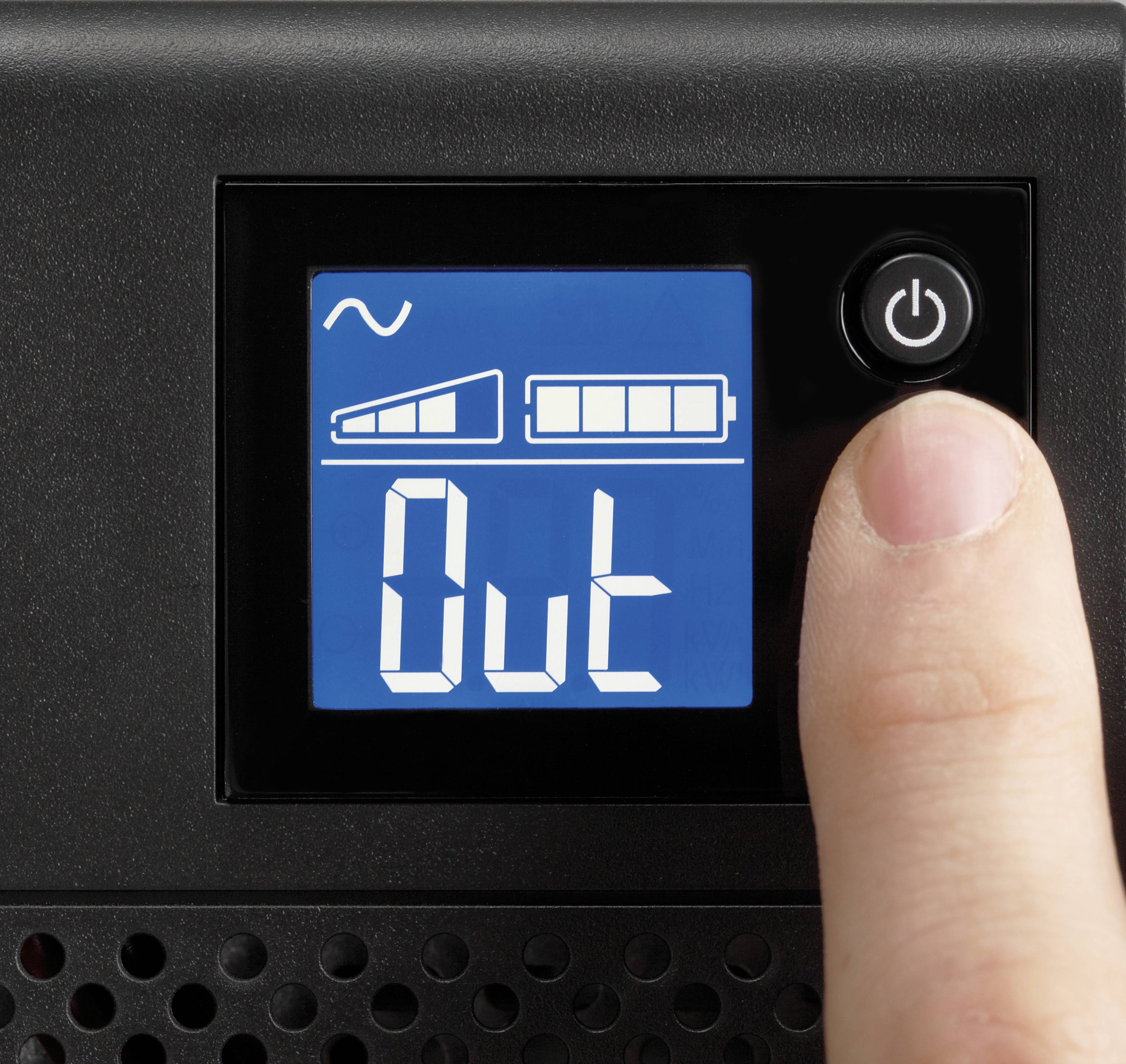

A finger presses the power button of a device. The display shows 'Out' with a battery and wave symbol.

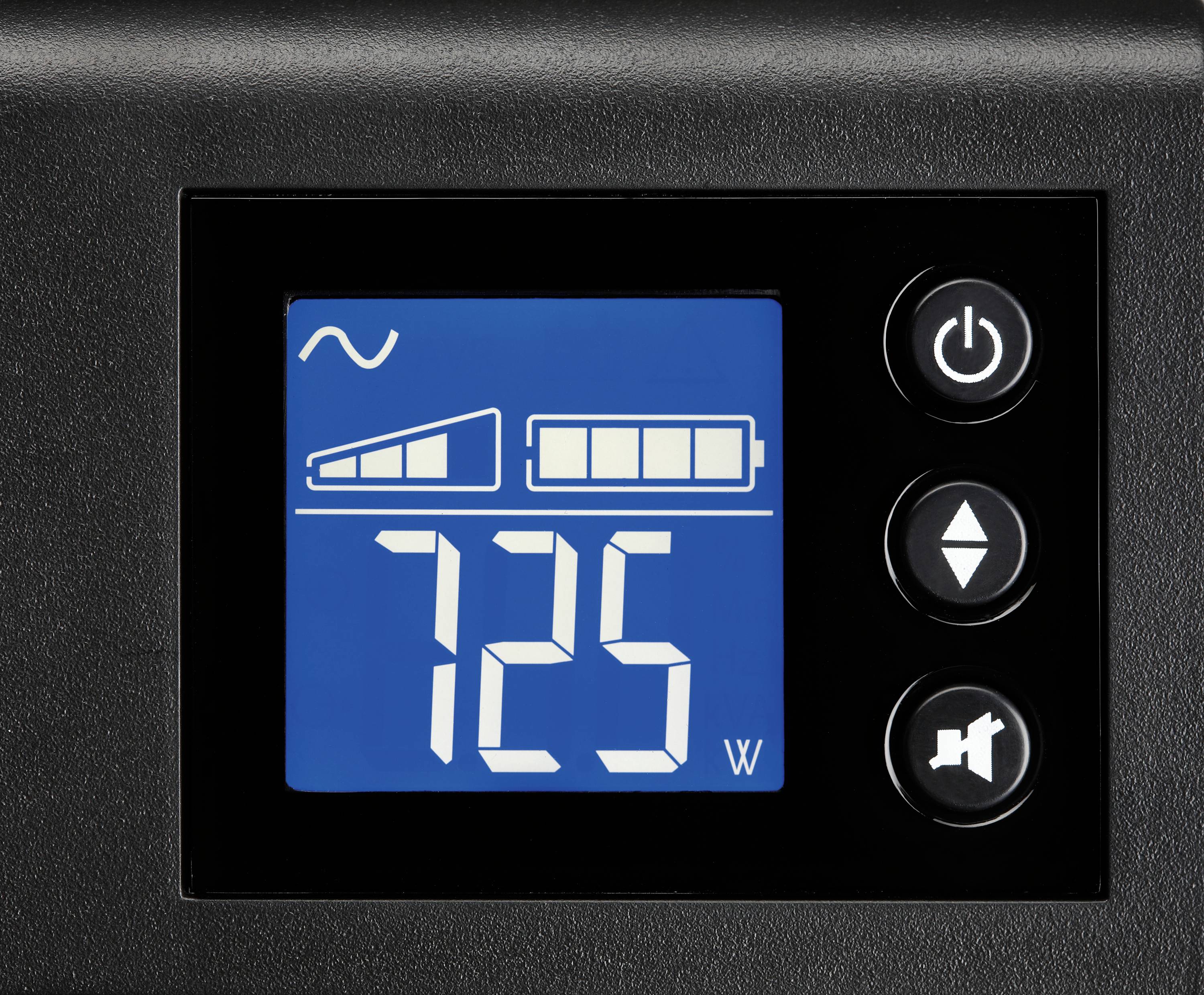

A digital display shows a power output of 725 watts. At the top are symbols for voltage and battery level. On the right are three function buttons.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 5SC1500IR 19" UPS 1500 VA

Highlights & Details

LCD display, ABM technology
Incl. 2 IEC320/C14 to C13 consumer connection cables
USB + RS232 interface, incl. cable

Technical specifications

Product type: 19" UPS

Nominal power: 1500 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card

Bridging time normal load: 13 min

Bridging time, max load: 4 min

Surge protection for: Mains outlets

Type: 5SC1500IR

Width: 440 mm

Height: 86.2 mm

Depth: 405 mm

Weight: 17.78 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362686 Eaton 5SC1500IR 19" UPS 1500 VA

Description

Eaton 5SC - class VI-SS-311 in accordance with EN 62040-3 - voltage protection with sine output for small to medium-sized systems - Application area: Reliably protects smaller servers in office and industrial environments, telephone systems, safety technology, e.g. file/print server and industrial controls
