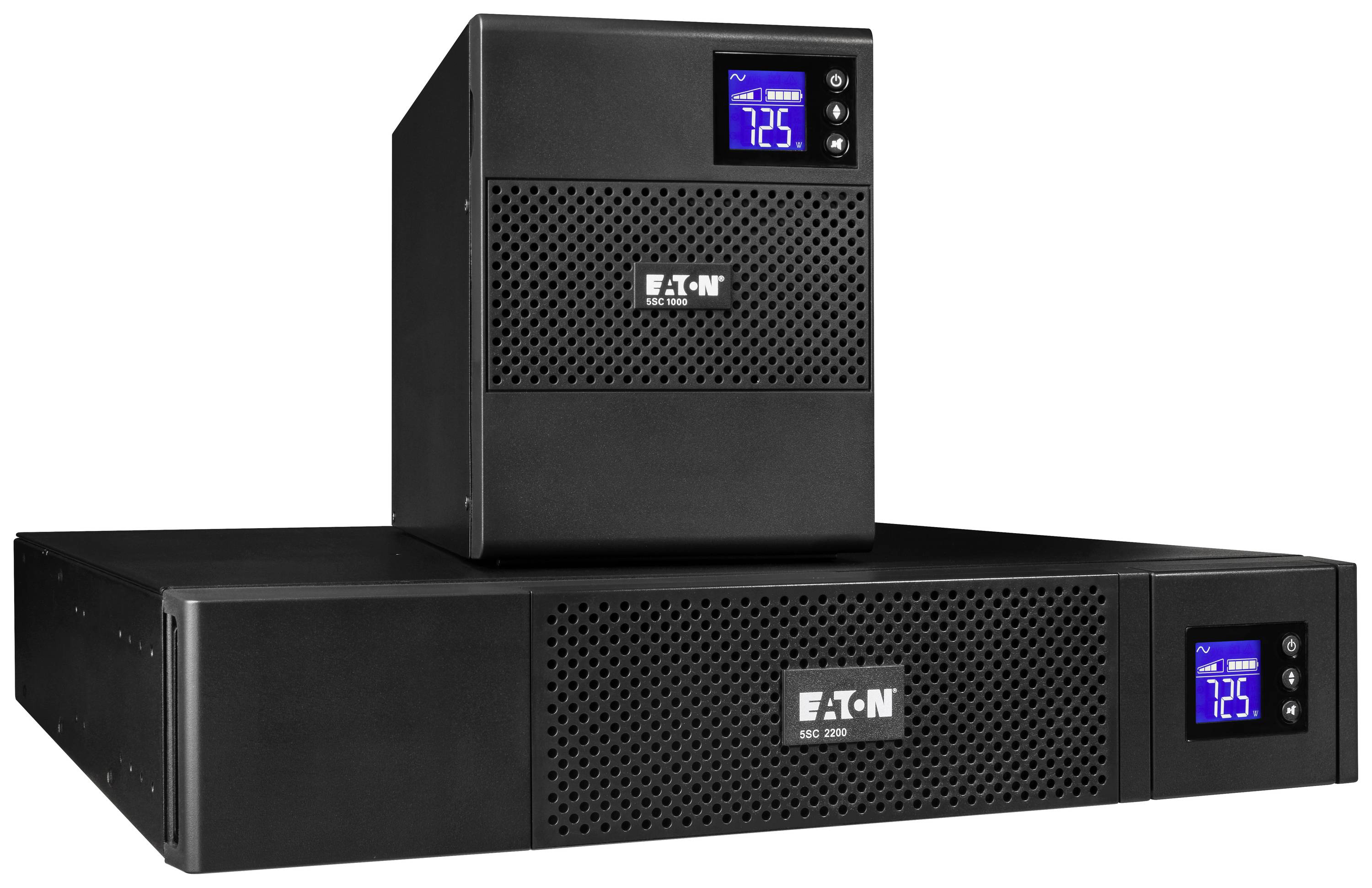

Two black Eaton UPS devices (uninterruptible power supply) with digital displays showing 72.5% capacity.

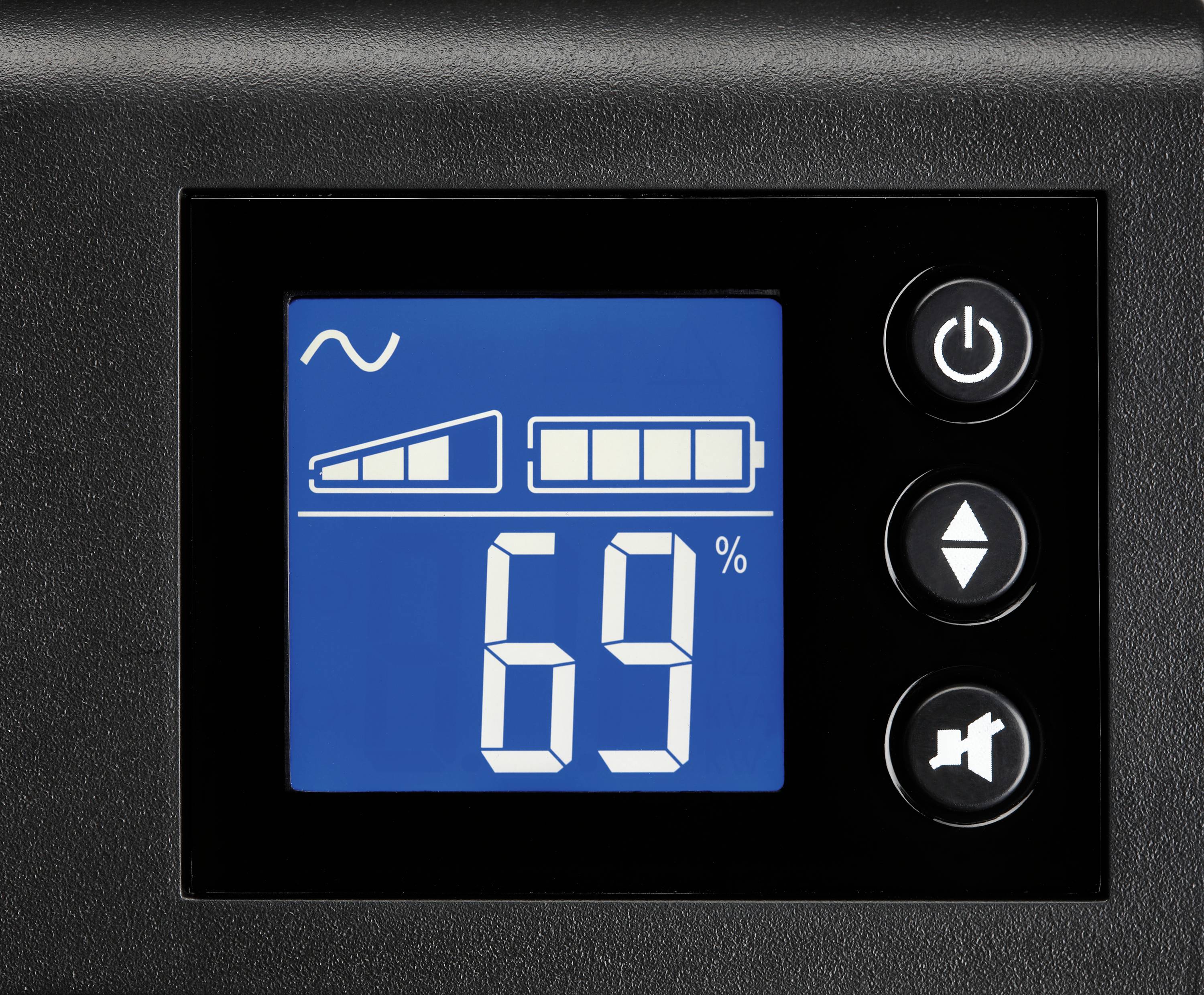

Display of an electronic device shows 69% battery charge, with illuminated symbol indicating charging process.

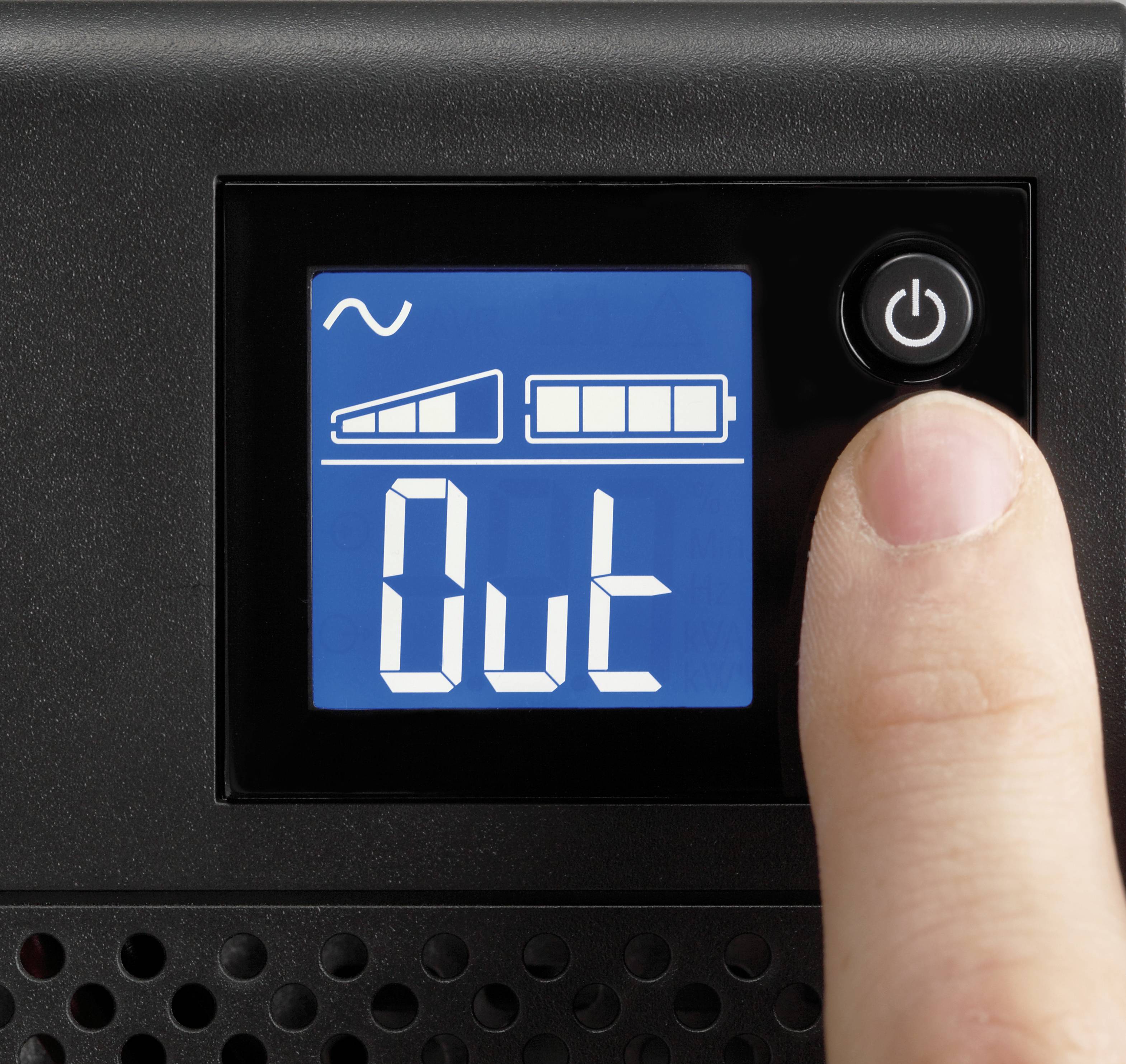

A finger presses the power switch of a device. The display shows a bar graph for the battery level and the indication "Out".

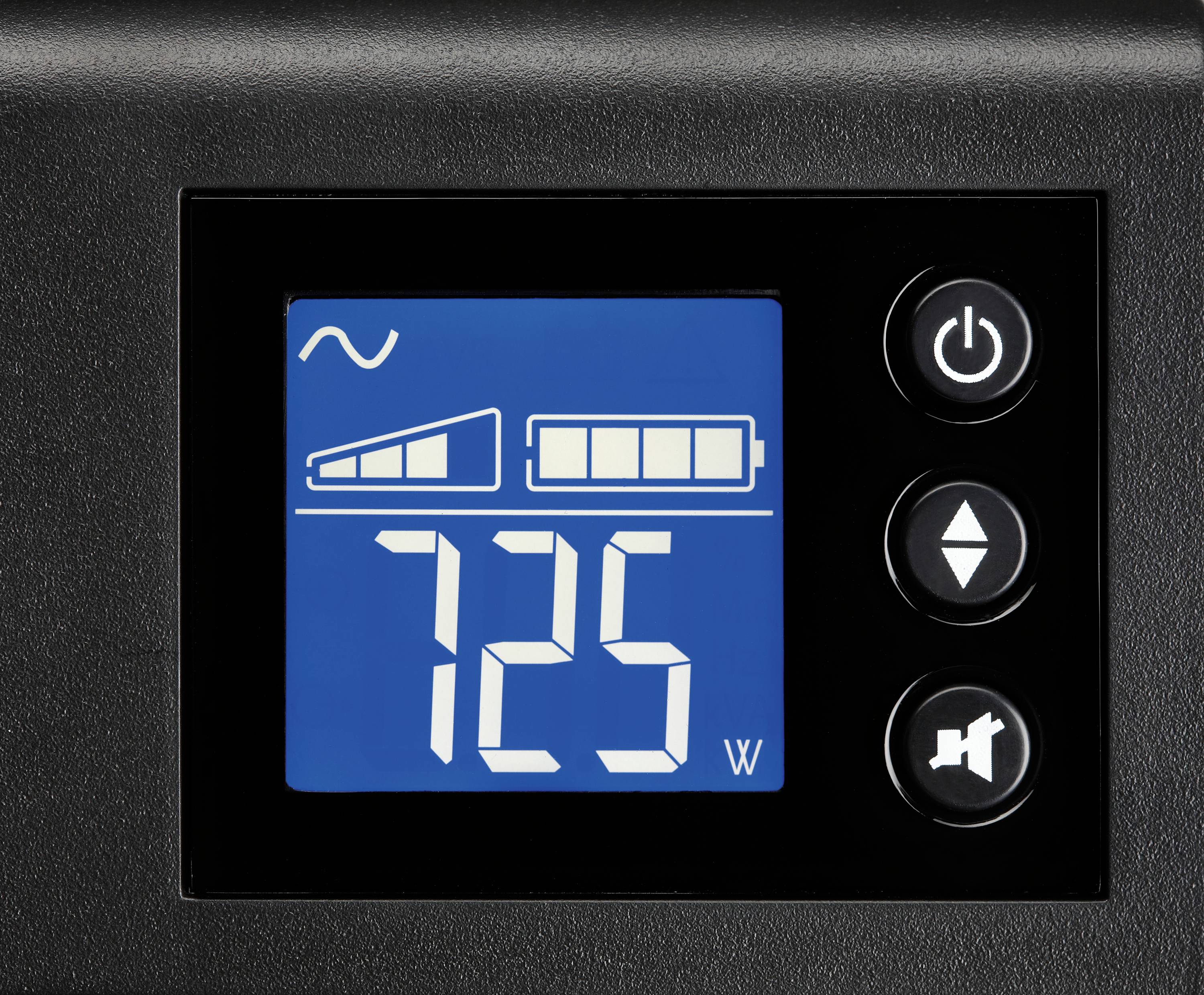

Electronic display with three buttons shows '725 W' and battery status. Additional symbols indicate wave pattern and mains operation.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 5SC 2200i RT2U - 2200 / 1980 (VA/Watt) UPS

Highlights & Details

LCD display, ABM technology
Incl. 2 IEC320/C14 to C13 consumer connection cables
USB + RS232 interface, incl. cable

Technical specifications

Product type: 19" UPS

Nominal power: 2200 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C20 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card

Bridging time normal load: 11 min

Bridging time, max load: 3 min

Surge protection for: Mains outlets

Type: 5SC2200IRT

Width: 441.2 mm

Height: 86.2 mm

Depth: 522 mm

Weight: 26.5 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362687 Eaton 5SC2200IRT 19" UPS 2200 VA

Description

Eaton 5SC - class VI-SS-311 in accordance with EN 62040-3 - voltage protection with sine output for small to medium-sized systems - Application area: Reliably protects smaller servers in office and industrial environments, telephone systems, safety technology, e.g. file/print server and industrial controls
