Buy Eaton 5SC500I UPS system 500 VA

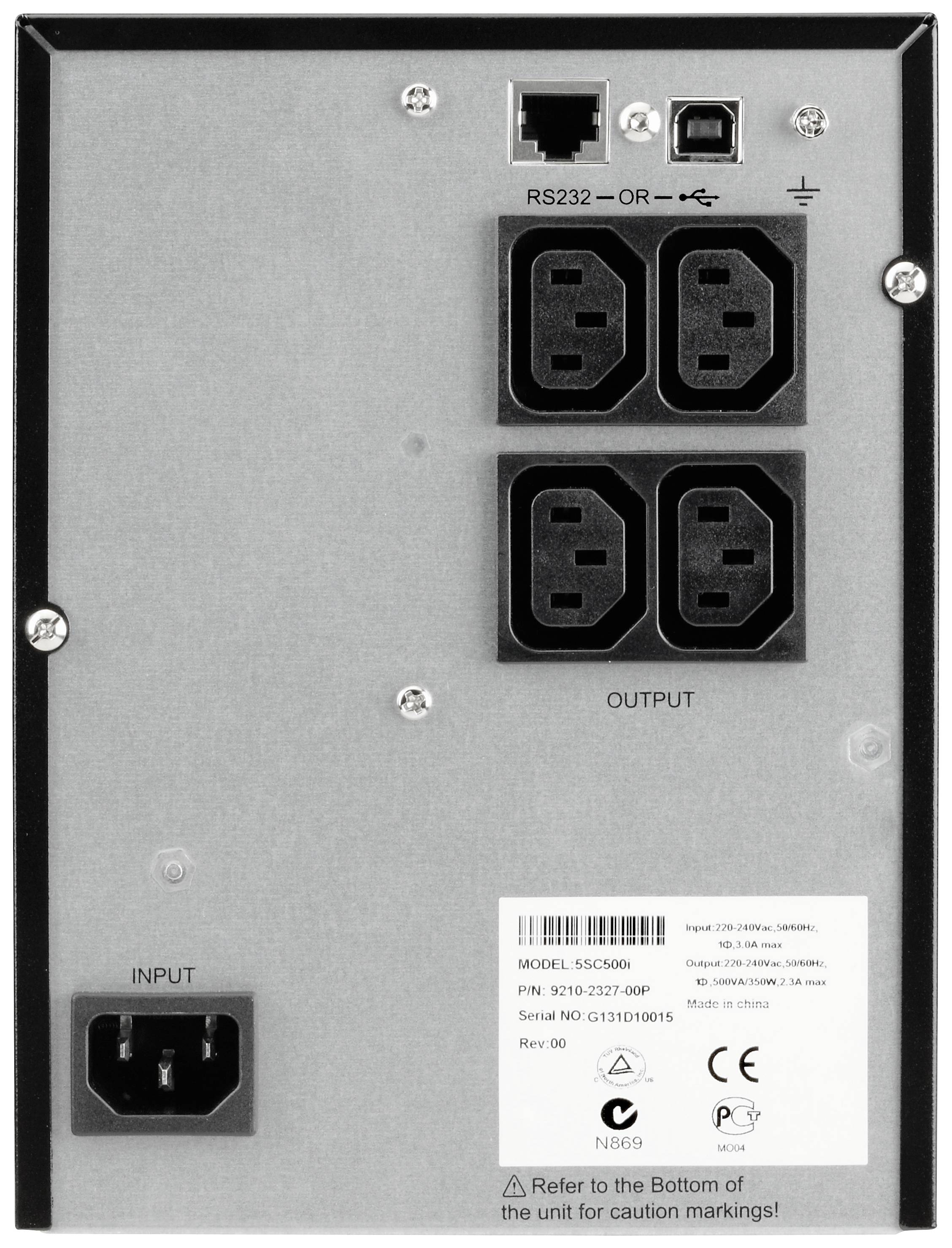

Rear view of an electronic device with four outputs, RS232 port and power cable connection. Model number and CE marking visible.

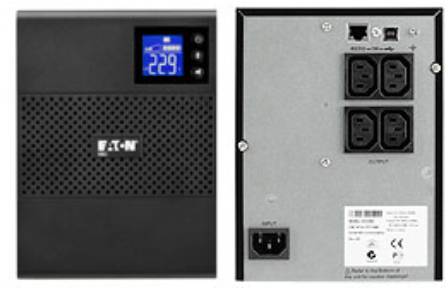

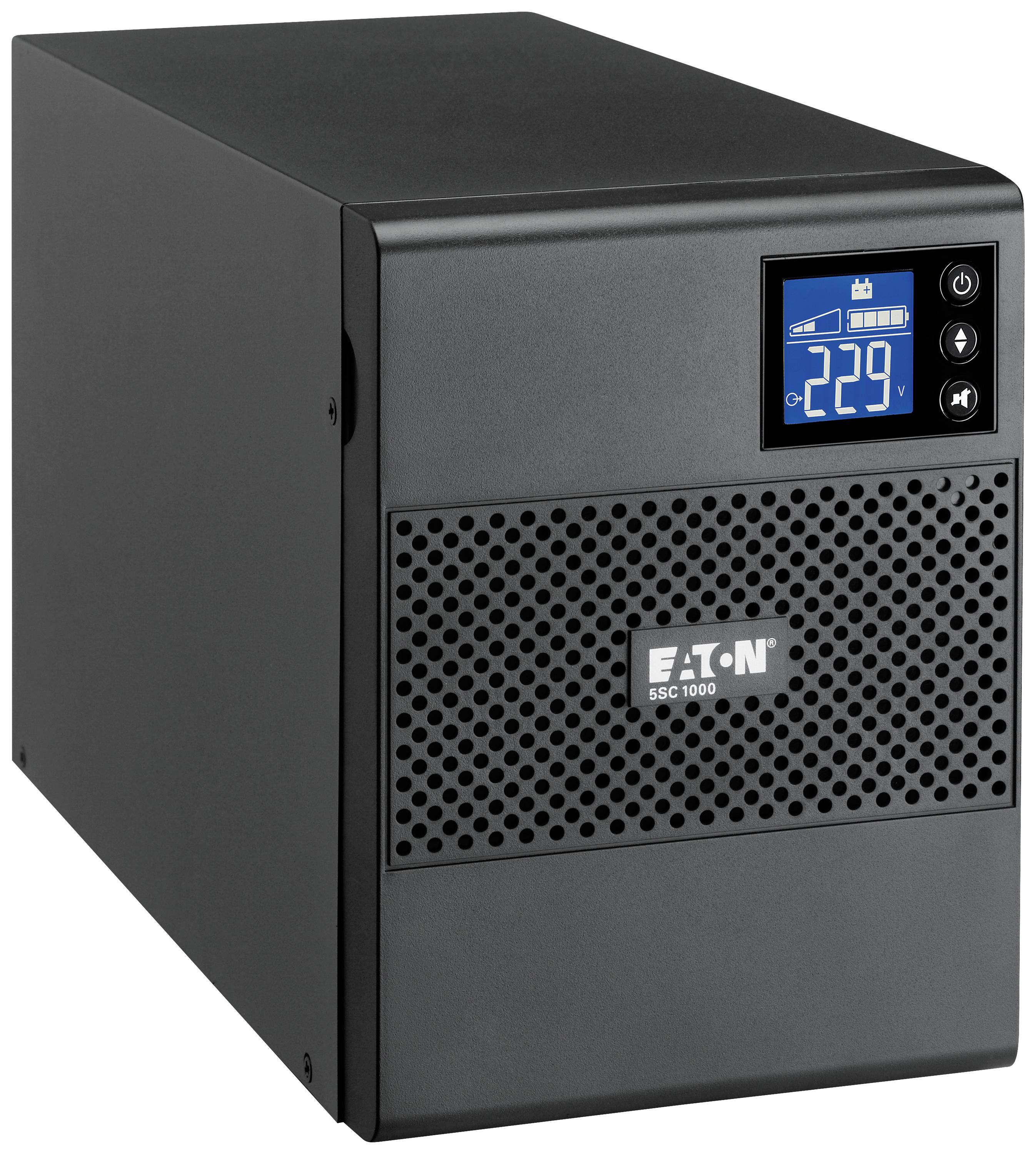

An uninterruptible power supply (UPS) with a digital display showing 229 volts. Marked 'Eaton 5SC 1000'.

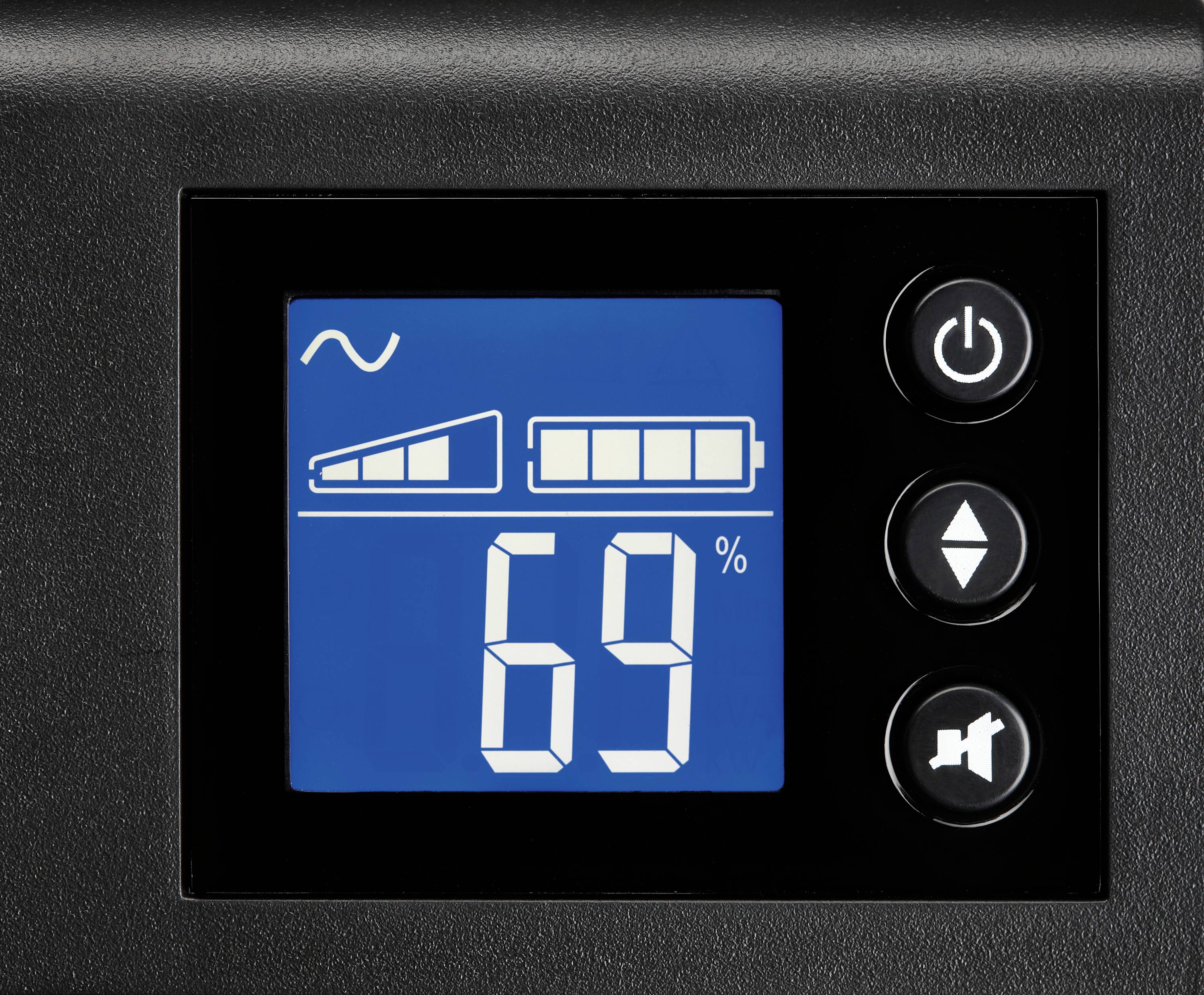

A screen displays a battery charge of 69%. Three symbols are shown beneath the display: power, settings up/down, and a dog.

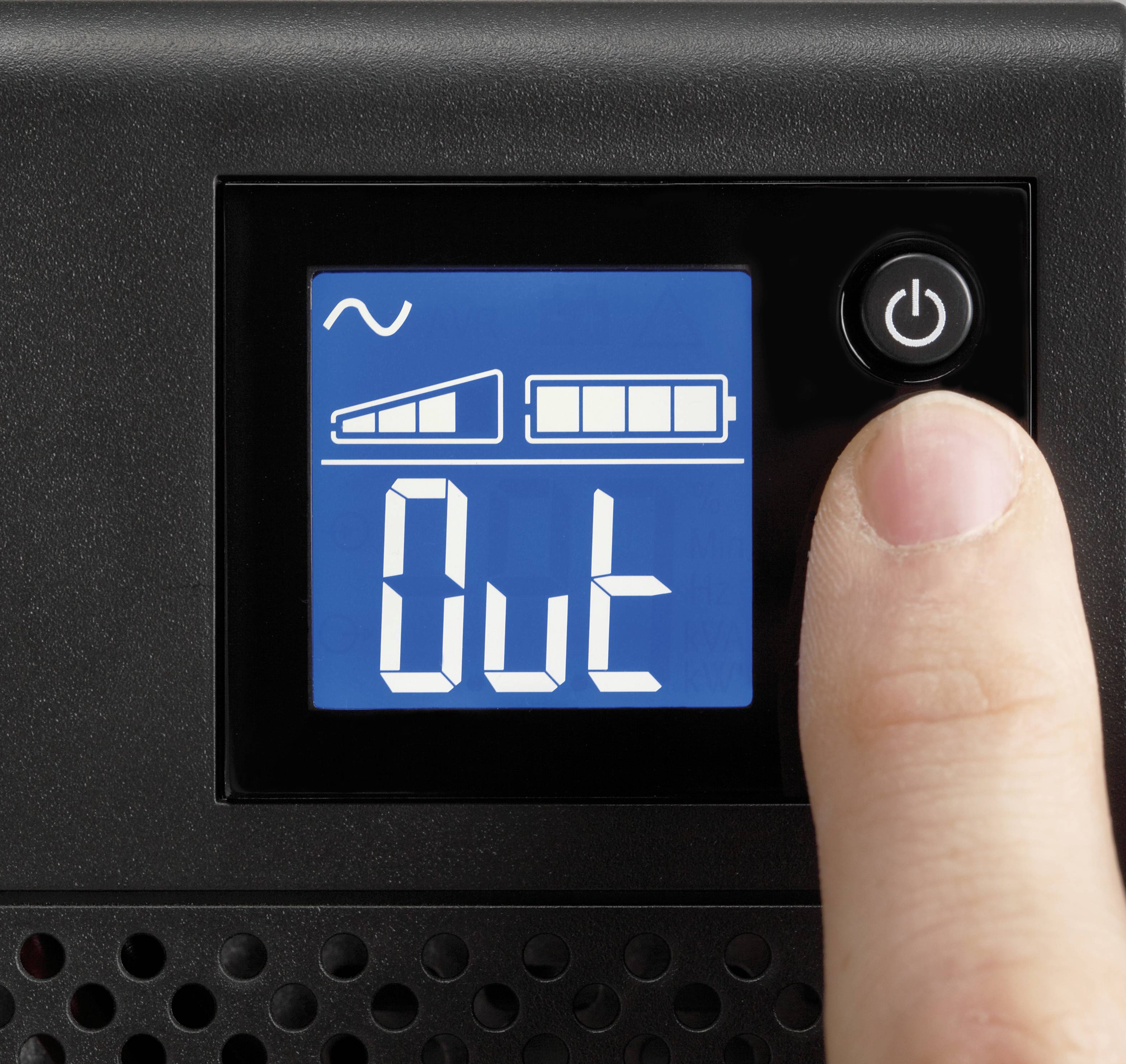

A finger presses the power switch of a device with a digital display. The display shows 'Out', with battery symbols at the top.

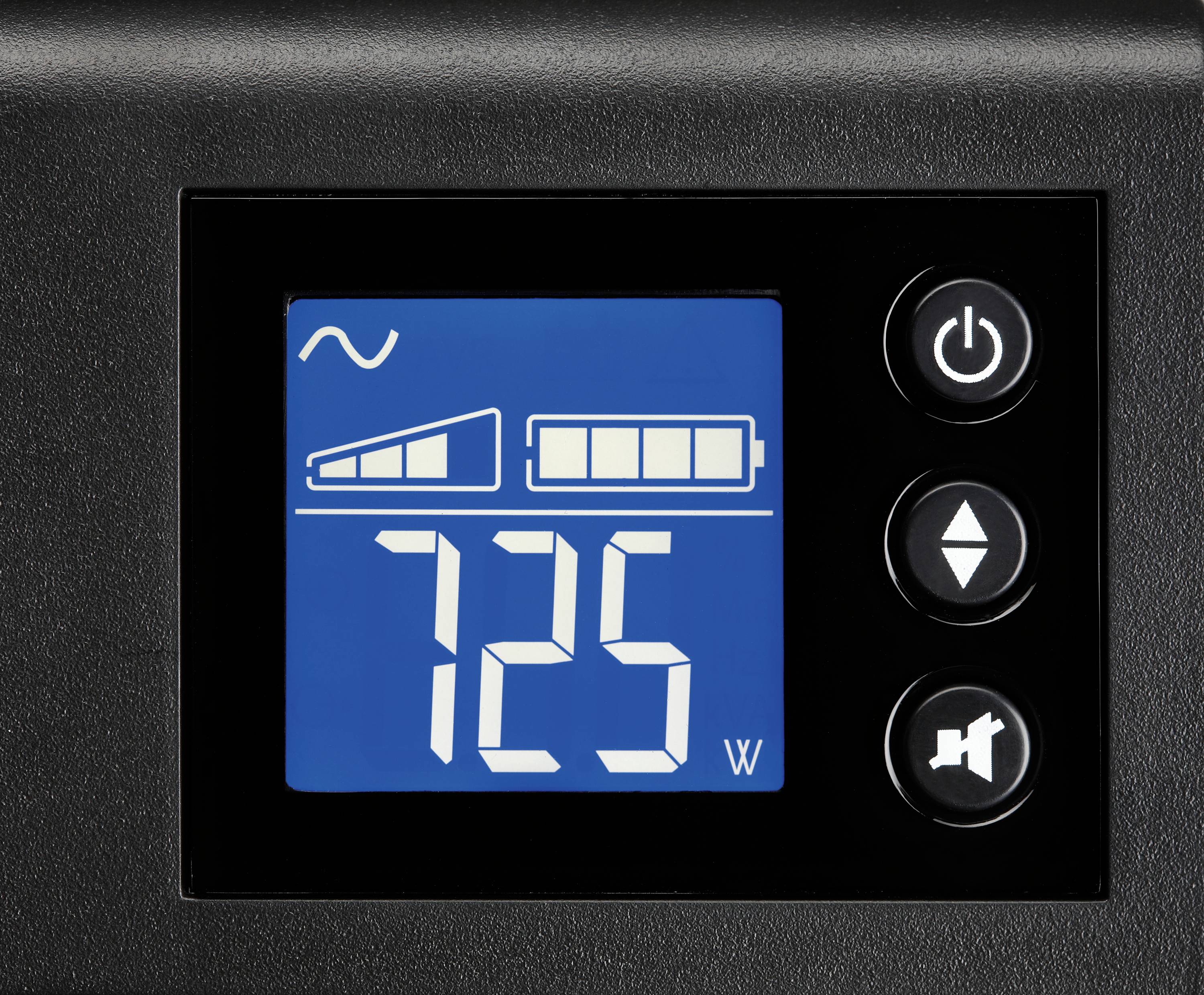

Digital display of a device shows '725 W', with a wave line in the top left and a battery indicator on the right. Control buttons are located to the right of the display.

1/6

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 5SC 500i - 500/350 (VA/Watt) UPS

Highlights & Details

LCD display, ABM technology
Incl. 2 IEC320/C14 to C13 consumer connection cables
USB + RS232 interface, incl. cable

Technical specifications

Product type: UPS system

Nominal power: 500 VA

No. of outputs: 4 x

with surge protection: 4

of which battery-buffered: 4

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port

Bridging time normal load: 13 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets

Type: 5SC500I

Width: 150 mm

Height: 210 mm

Depth: 240 mm

Weight: 6.6 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362681 Eaton 5SC500I UPS system 500 VA

Description

Eaton 5SC - class VI-SS-311 in accordance with EN 62040-3 - voltage protection with sine output for small to medium-sized systems - Application area: Reliably protects smaller servers in office and industrial environments, telephone systems, safety technology, e.g. file/print server and industrial controls

This text is machine translated.
