Buy Eaton 80NHG1B NH fuse with blown fuse indicator Fuse size = 1 80 A 500 V 3 pc(s)

Electrical fuse insert with metal contacts, marked as 80A. Includes markings and safety certificates.

Image similar

NH1 Bussmann fuse, gG/gL 80A, suitable for 500V, corrosion-resistant.

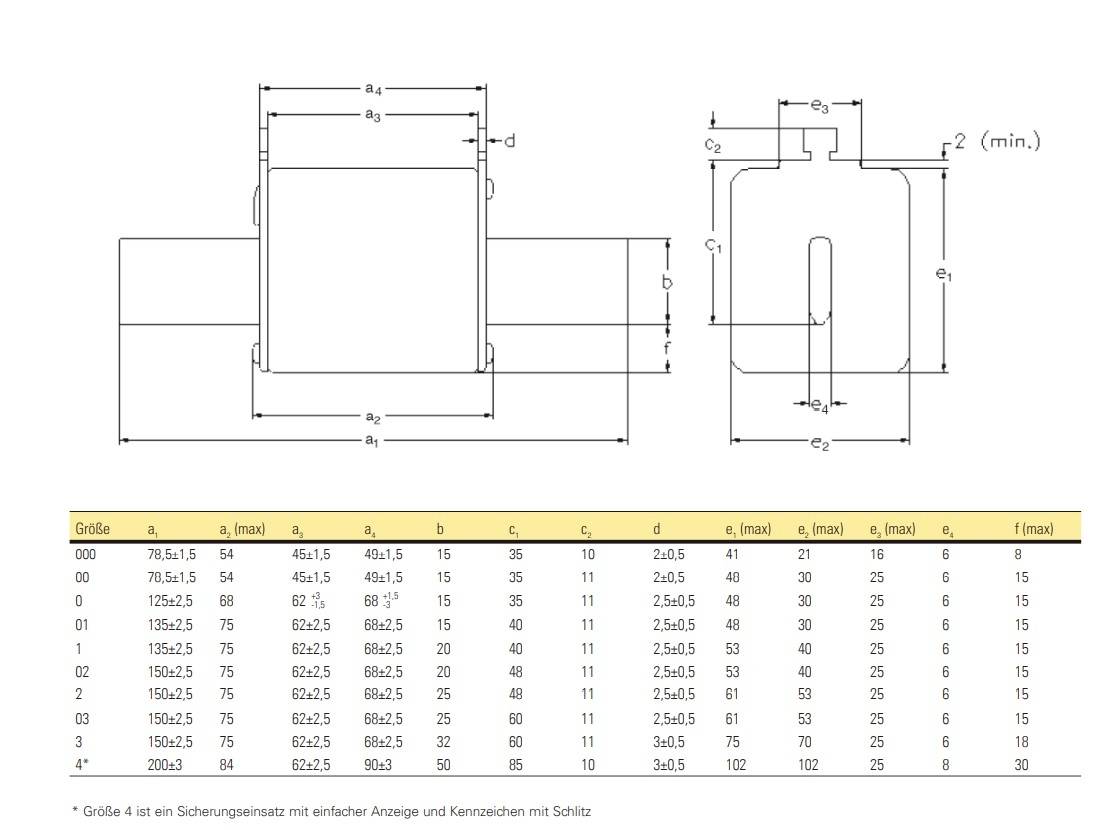

Technical drawing of a component with detailed dimensions in millimetres. Table below shows sizes and corresponding dimensional specifications.

1/3

Image similar

Product type

NH fuse

Fuse size

Nominal current - rounded value

80 A

Type

Live grip bottles made of metal

Content

3 pc(s)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 3 pc(s))

Set(s)

Total (€ 9.24 / piece)

€ 27.72

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fuse insert 80NHG1B

Dual displayHigh breaking capacityVarious insulated labels availableIEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE-certification

Technical specifications

Type: Live grip bottles made of metal

Product type: NH fuse

Fuse size: 1

Content: 3 pc(s)

Nominal current: 80 A

Nominal current - rounded value: 80 A

Model: with blown fuse indicator

Switch-off capacity: 120 kA

Duty class: gG
gL

Nominal voltage: 500 V

: AC

: 80 A

: 120 A

: gL/gG (cable protection/equipment protection)

: Combination fuse status indicator

: 500

: FALSE

: NH1

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2622439 Eaton 80NHG1B NH fuse with blown fuse indicator Fuse size = 1 80 A 500 V 3 pc(s)

User & Safety Instructions

User & Safety Instructions 2622439 Eaton 80NHG1B NH fuse with blown fuse indicator Fuse size = 1 80 A 500 V 3 pc(s)

Information

Information 2622439 Eaton 80NHG1B NH fuse with blown fuse indicator Fuse size = 1 80 A 500 V 3 pc(s)

Description

Dual display systemBussman's patented dual display provides a clear display and provides an extremely reliable local and remote* display. This reduces the time and cost of replacing backup operations.* Using an optional microswitchLow power lossBussmann's "Low Watts Loss" (low loss of current) fuse inserts reduce the general operating costs as well as carbon emissions through lower energy consumption and less heat transfer to the devices.Worldwide legal complianceBussmann NH fuse links have been tested and are compliant with IEC 60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can be recycled to guarantee global acceptance.
