Buy Eaton 9PX1000IRT2U 19" UPS 1000 VA

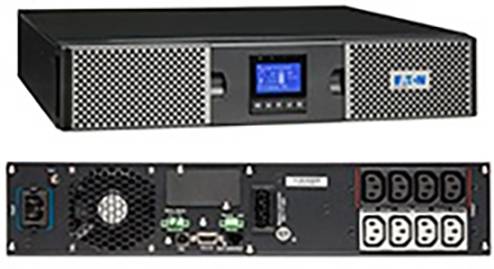

A server device with a screen on the front and multiple ports on the back for power supply and data connection.

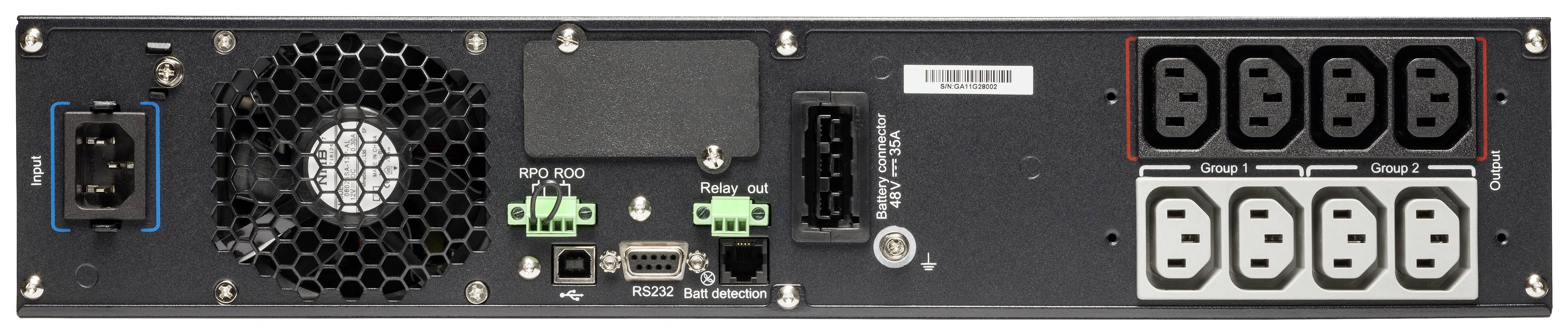

Back of a server showing fans, power connection (highlighted in blue), interfaces and groups of ports (highlighted in red).

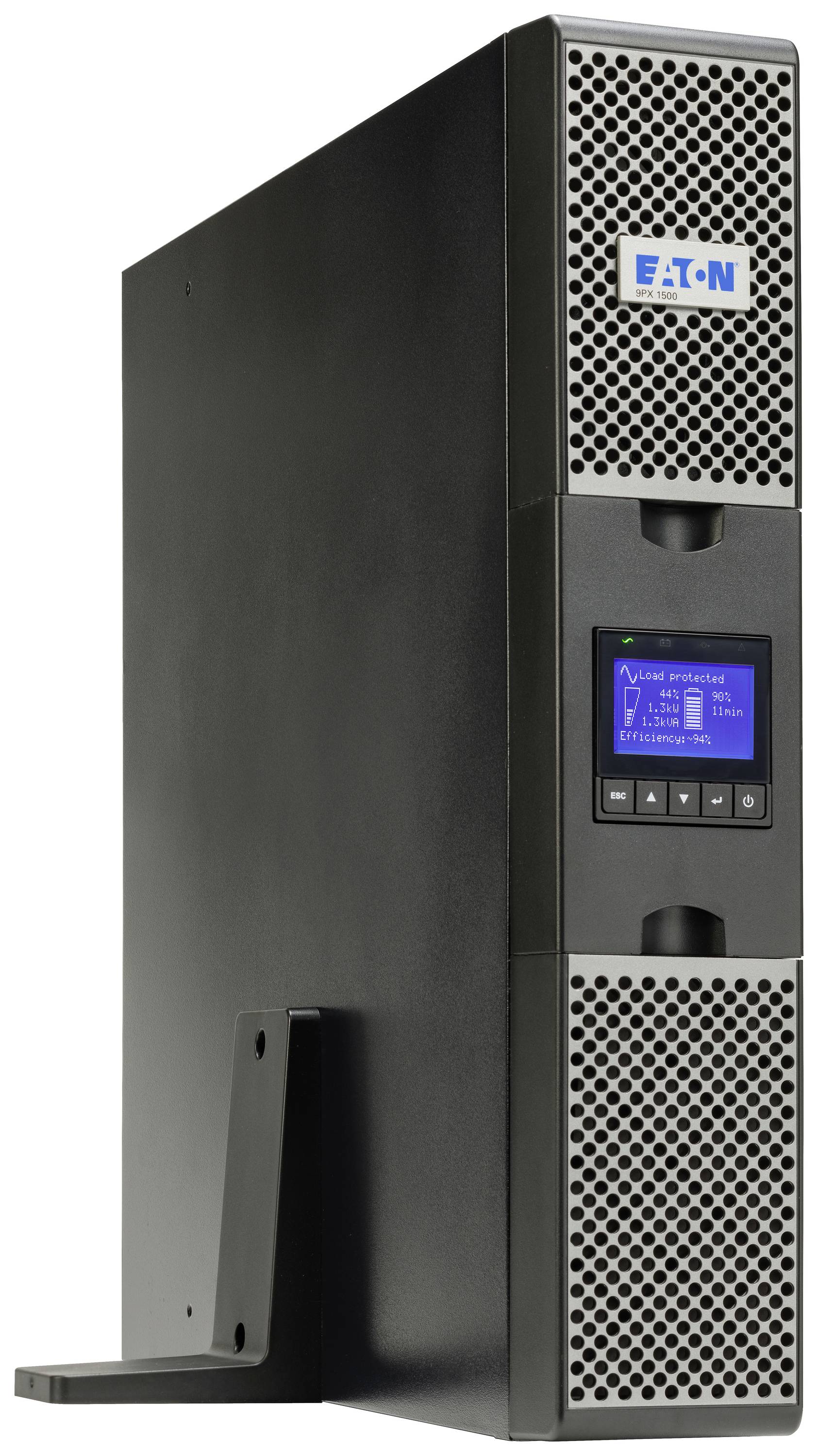

A black uninterruptible power supply (UPS) with a small display on the front shows technical information.

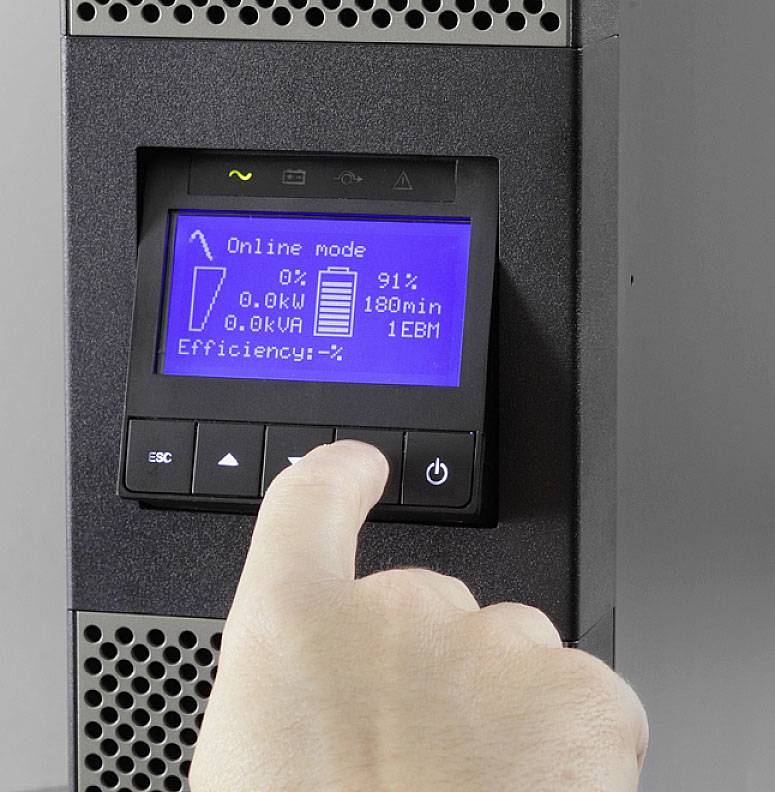

A person is operating a display on a device showing information about electricity consumption and efficiency. The screen displays 'Online mode' and battery status.

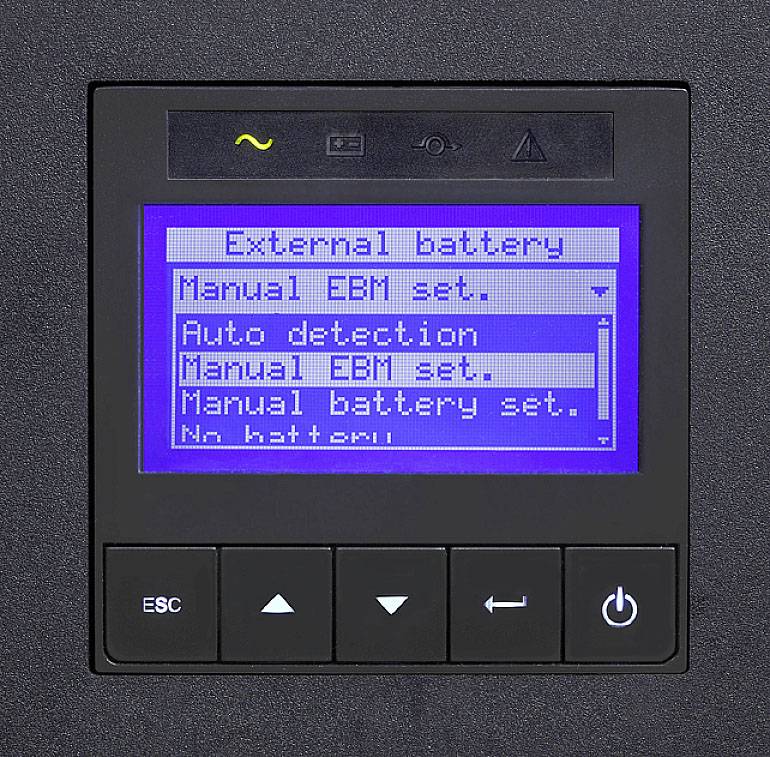

An LCD display with menu options: 'External battery', 'Auto detection', 'Manual EBM set'. Navigation buttons below.

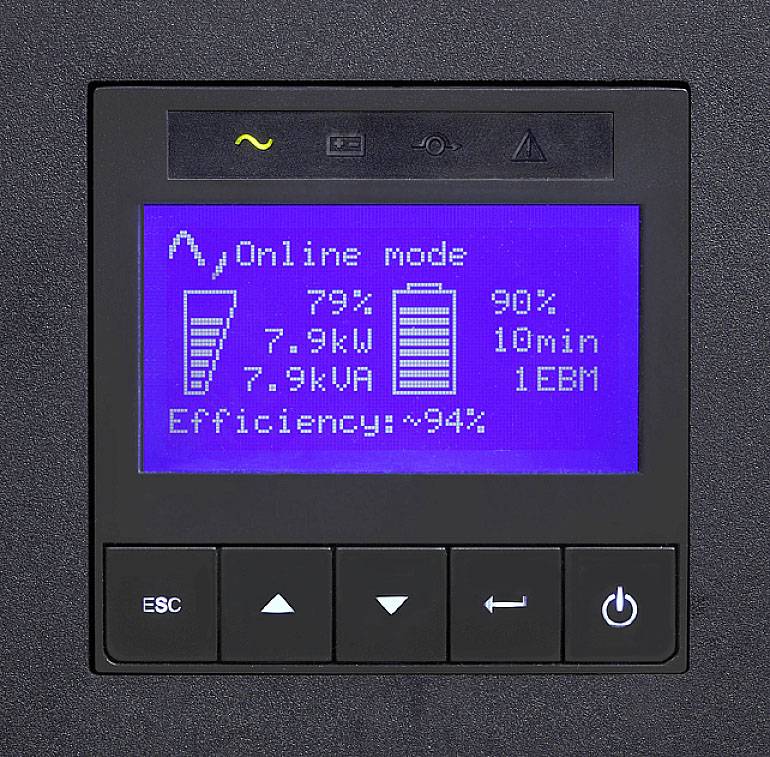

A digital display shows 'Online mode', battery status at 79%, remaining time 10 minutes, power data at 7.9 kW and 7.9 kVA, efficiency 94%.

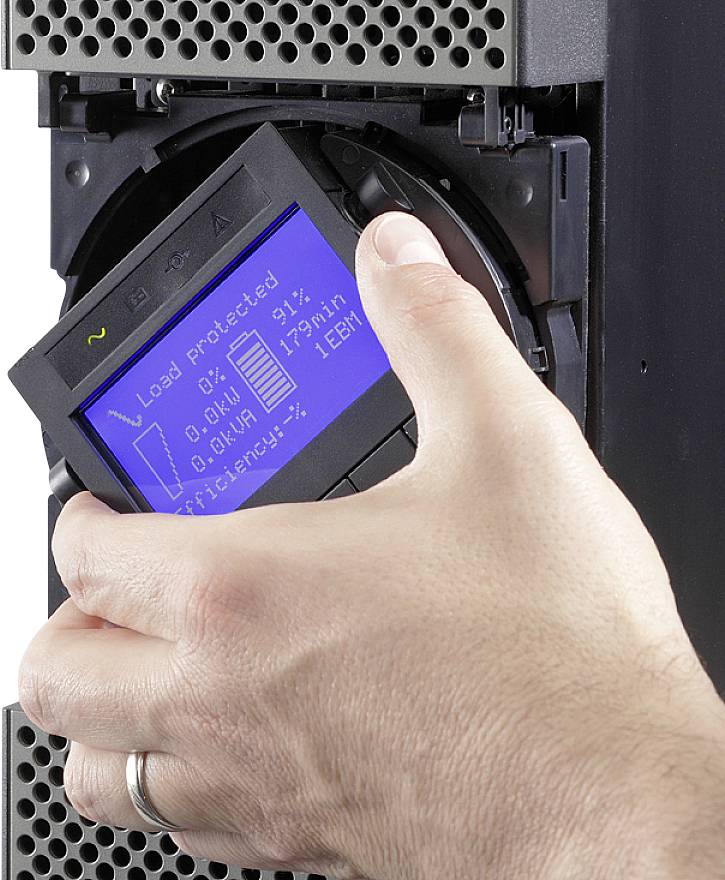

A hand is holding a data cassette part being inserted into an electronic device. The display is showing technical data.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

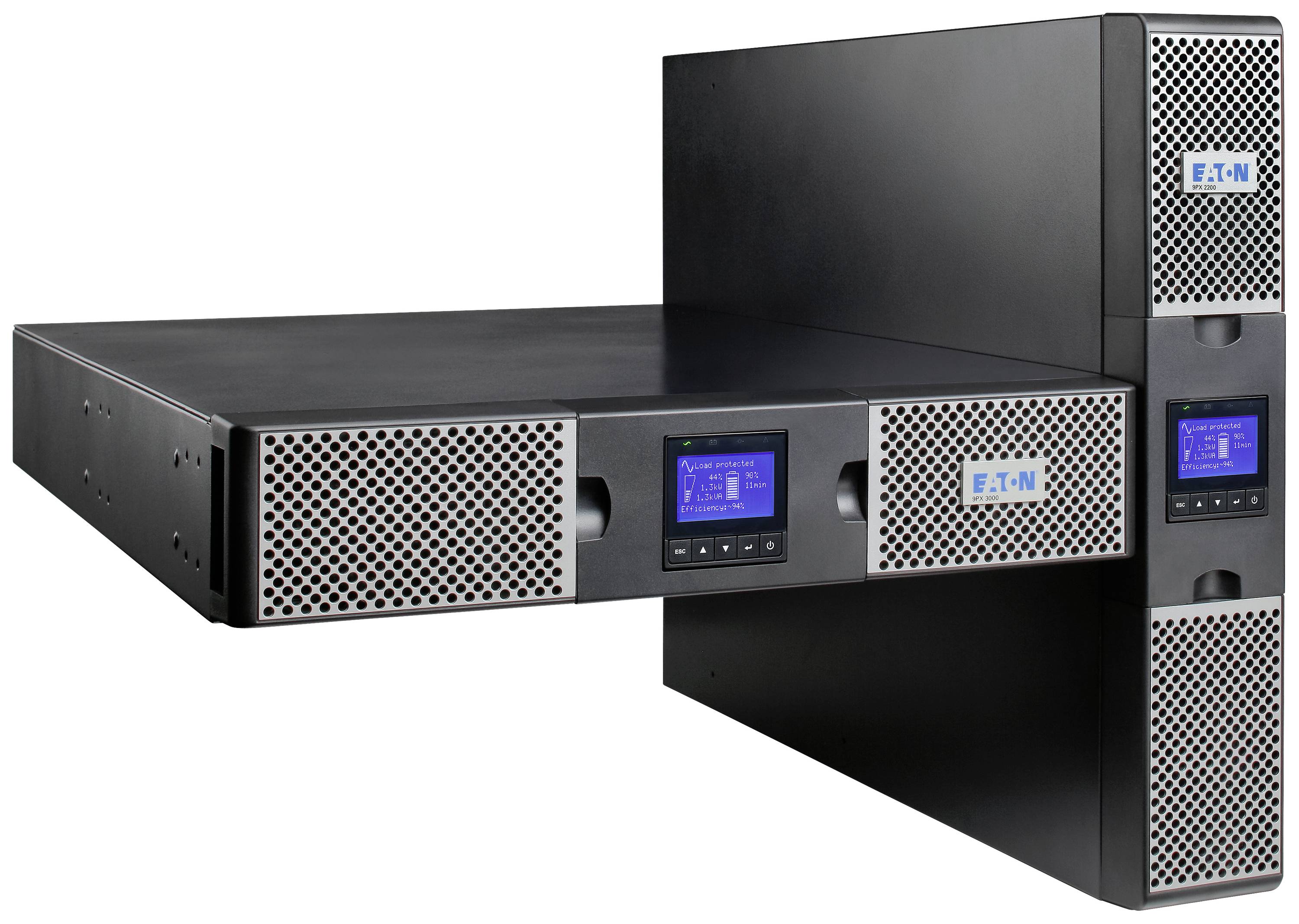

Eaton 9PX 1000i RT2U - 1000 (VA/Watt) UPS

Highlights & Details

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 1000 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 20 min

Bridging time, max load: 9 min

Surge protection for: Mains outlets

Type: 9PX1000IRT2U

Width: 440 mm

Height: 86.5 mm

Depth: 450 mm

Weight: 17.4 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362720 Eaton 9PX1000IRT2U 19" UPS 1000 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.
