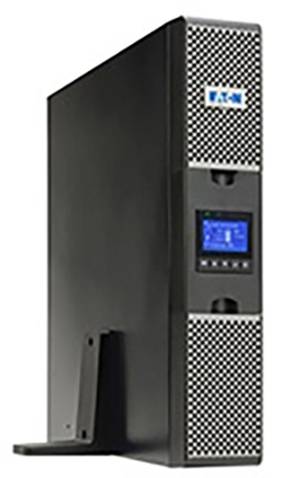

Black uninterruptible power supply (UPS) with digital display at the front, showing energy information.

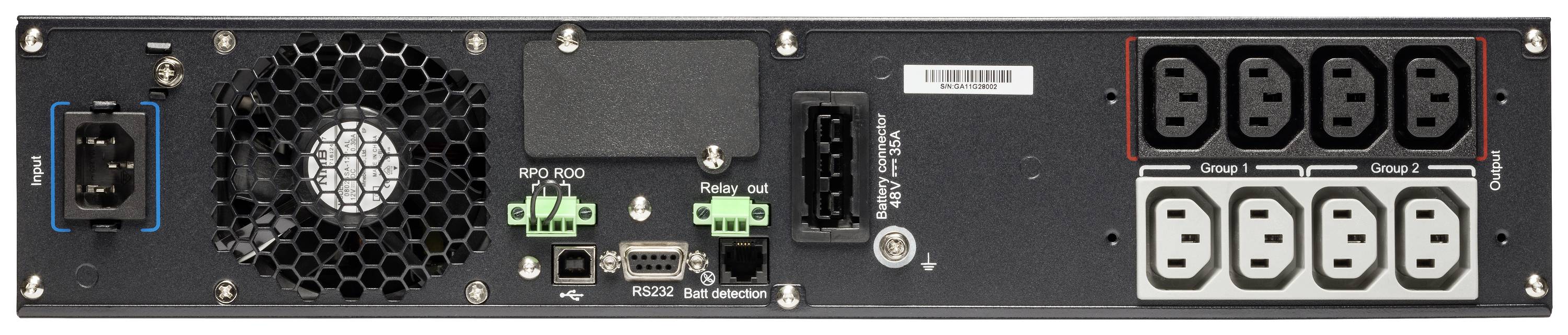

Back of a server power supply with fan, connection sockets, power adapter, and control elements for power supply.

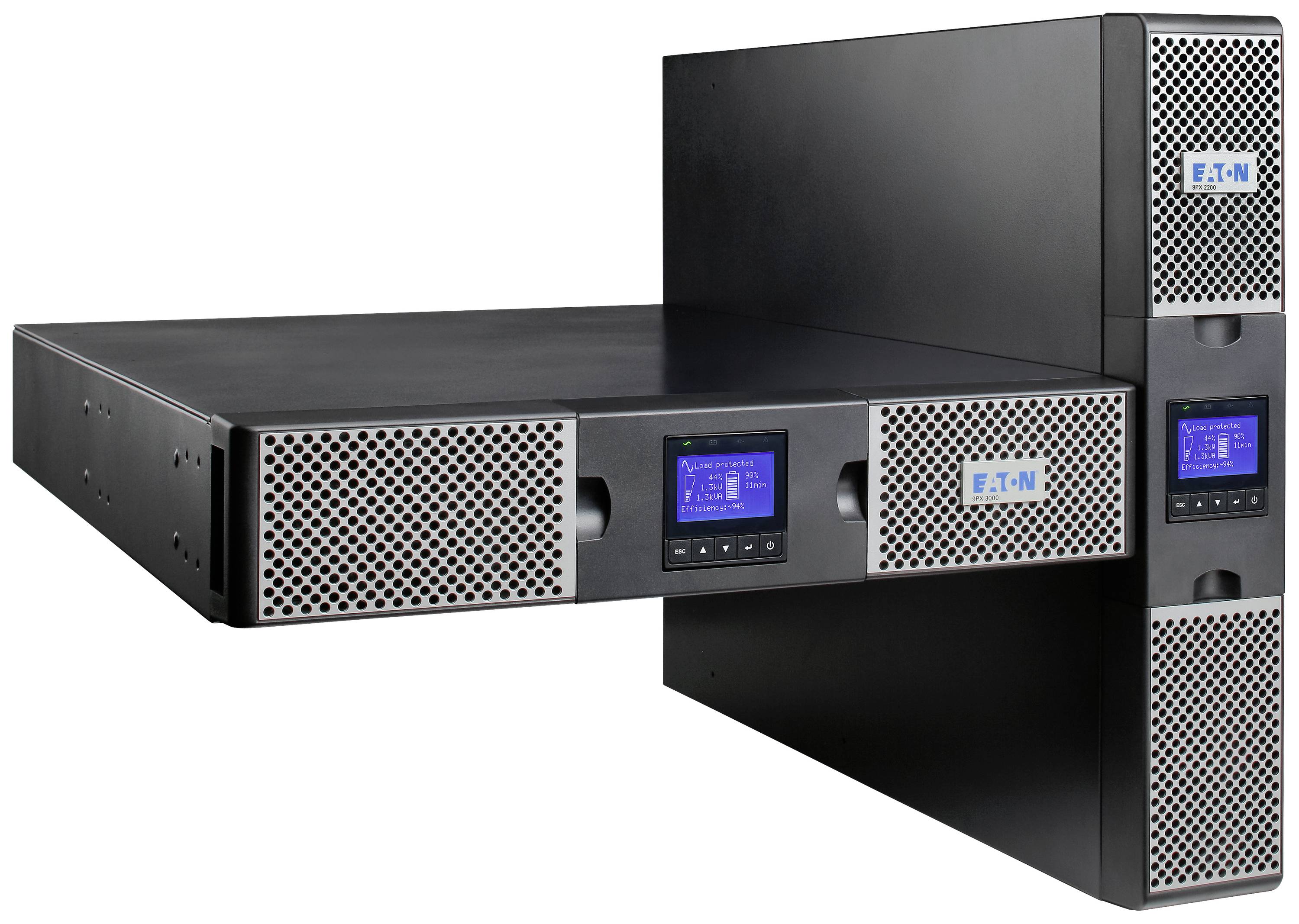

A black server with two ventilation grilles and a display reading 'Eaton' mounted in a server environment.

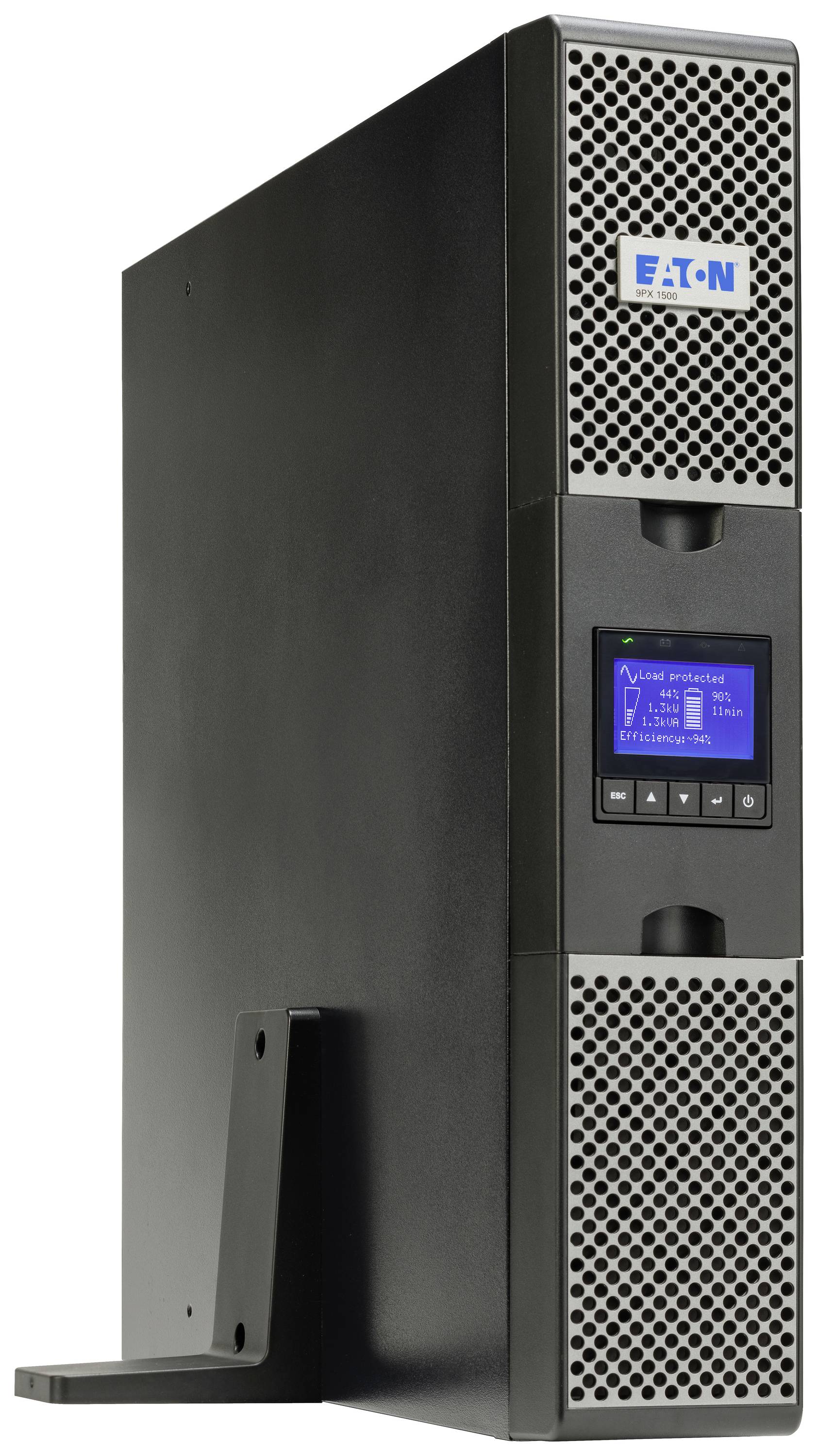

A black, vertically standing UPS device with a small blue screen displaying 'Eaton'.

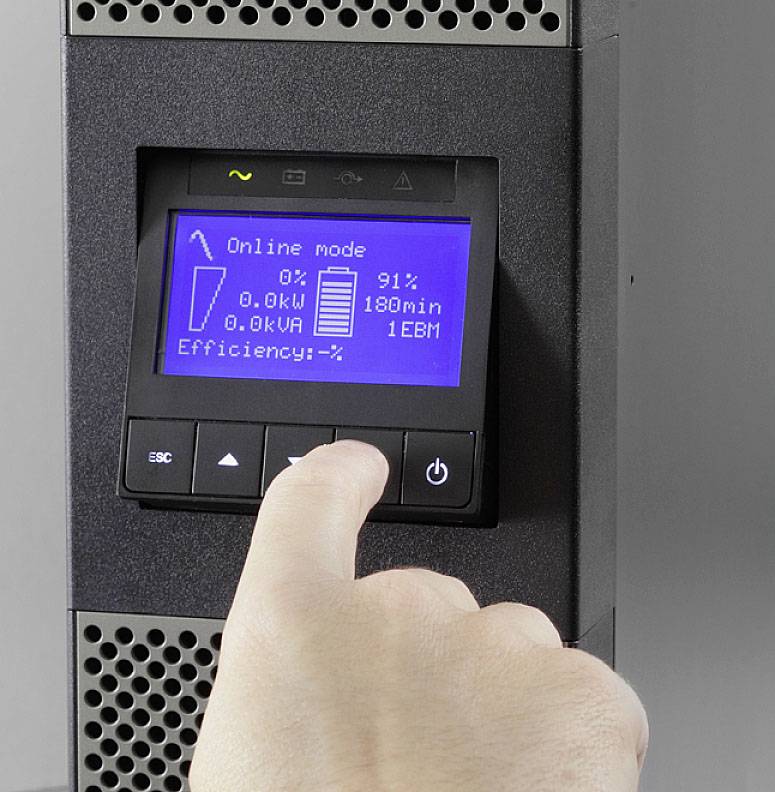

A person is operating an electronic device with a screen. The screen displays data: 'Online mode', performance, efficiency, and battery status.

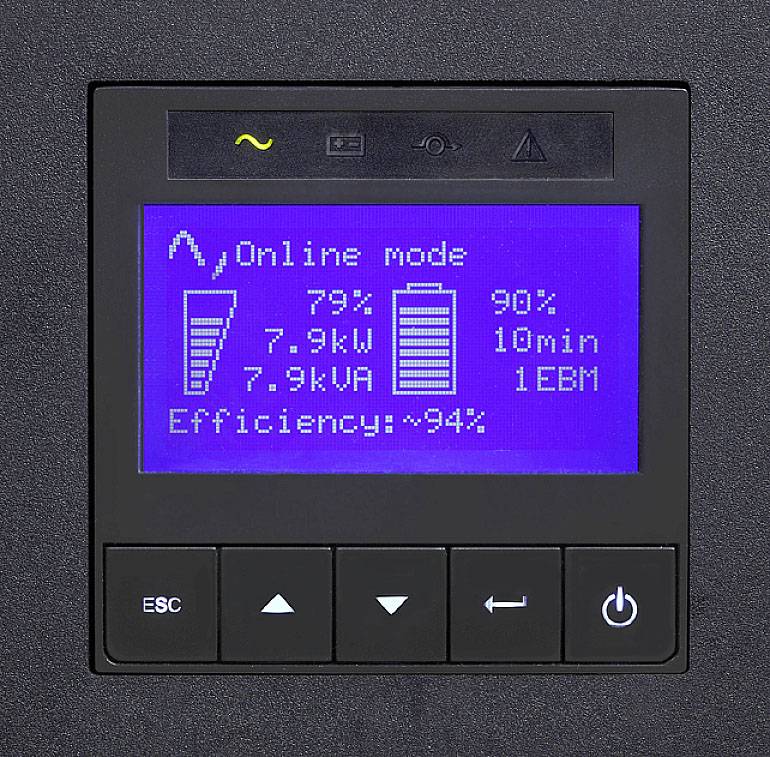

'Operating Mode: Online', LCD screen shows loading bar at 79% (7.9kW, 7.9kVA) and 90% (10min, 1EBM), Efficiency: 94%.

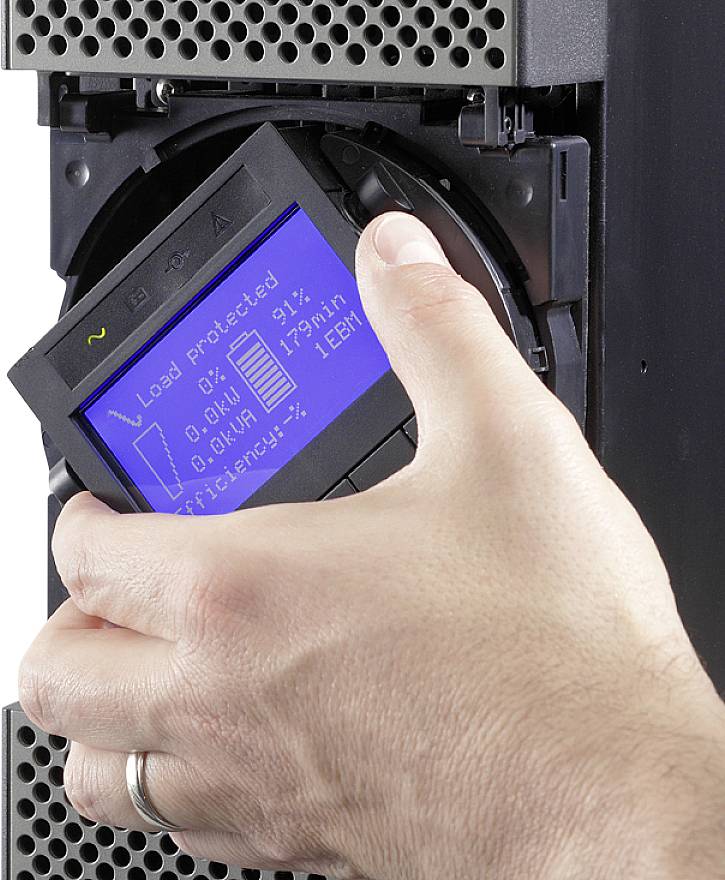

A hand is holding a cartridge. On the blue display, technical data are visible, including 'Load protected', '0 BKU', '179% LEBN'.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 9PX1500IRTN 19" UPS 1500 VA

Highlights & Details

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 1500 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 19 min

Bridging time, max load: 7 min

Surge protection for: Mains outlets

Type: 9PX1500IRTN

Width: 440 mm

Height: 86.5 mm

Depth: 450 mm

Weight: 18.9 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362722 Eaton 9PX1500IRTN 19" UPS 1500 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.
