Buy Eaton 9PX2200IRT2U 19" UPS 2200 VA

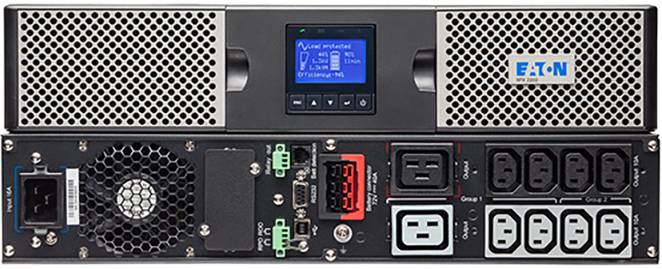

Front view of an Eaton rackmount UPS device with display and ventilation slots; rear view shows power sockets and fans.

Eaton UPS device with display, fan and multiple power outlets on the front and rear panels.

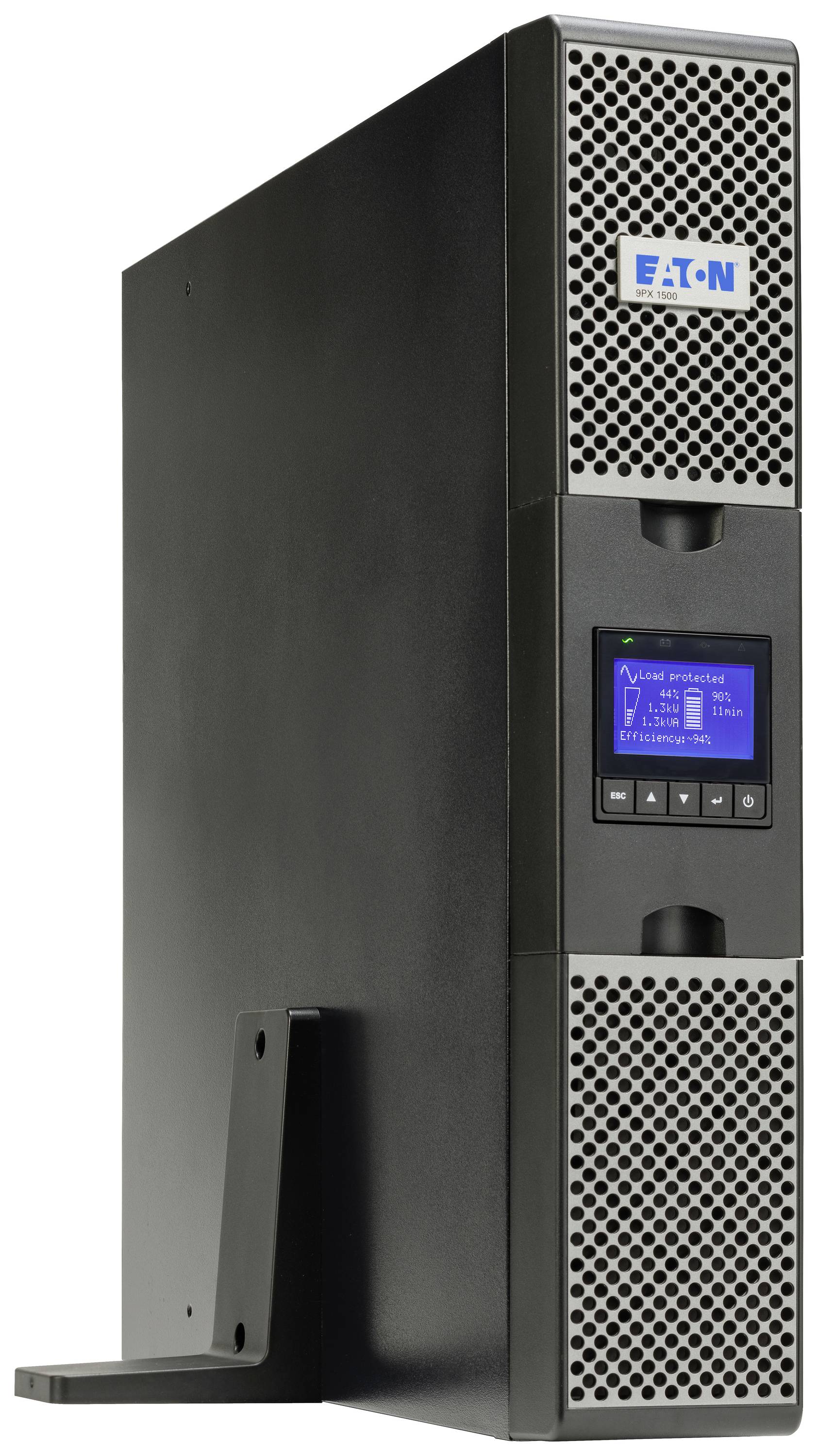

A black Eaton UPS device with a digital display on the front shows operational information.

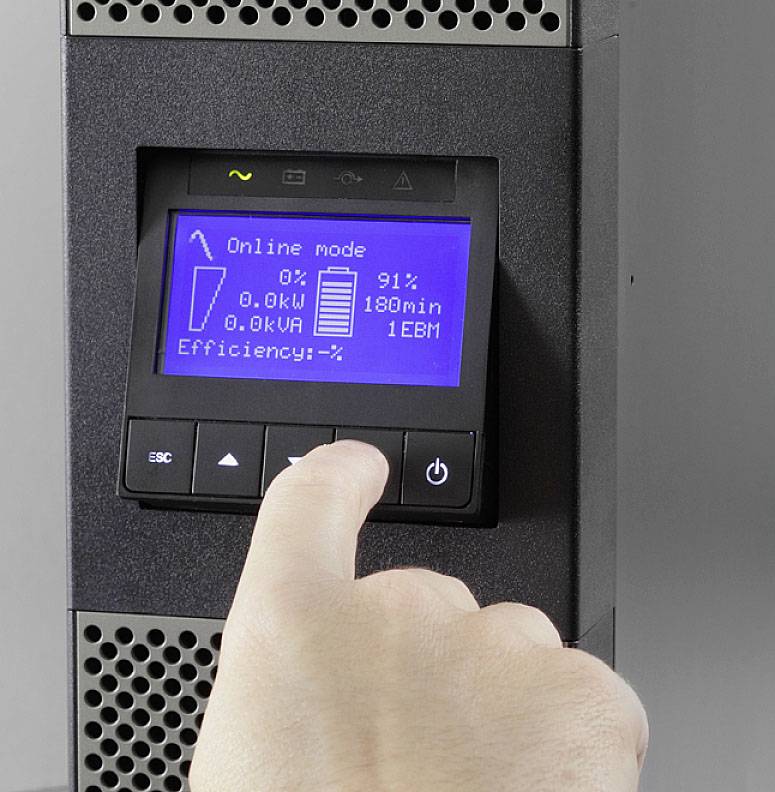

A person is tapping on the display of an electronic device. The screen shows 'Online mode', battery at 91%, and other performance data.

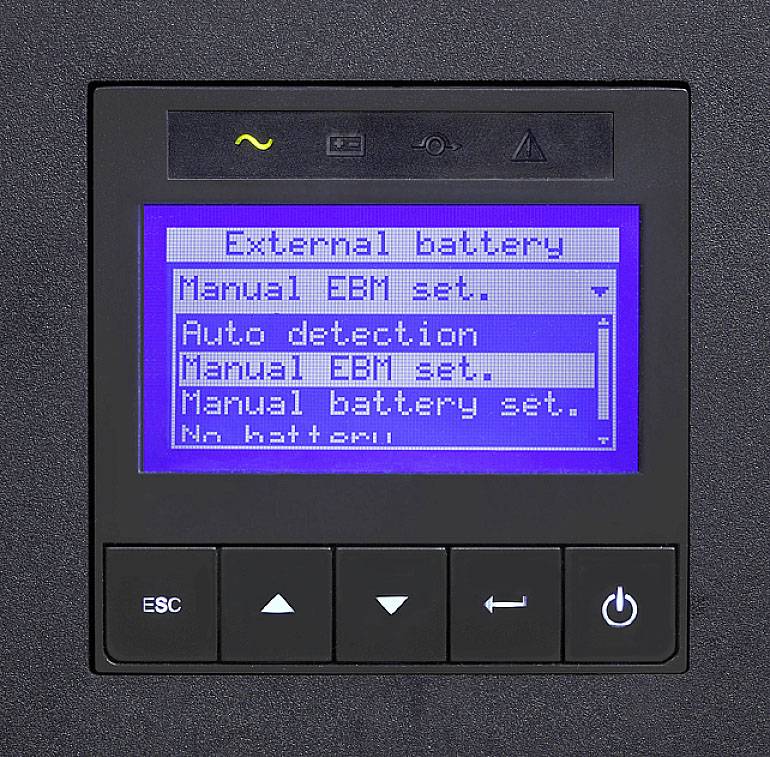

Device display with options: 'External battery', 'Auto detection', 'Manual EBM set' and 'No battery'. Control buttons below.

A display shows 'Online mode, 79% efficiency, 1 EBM'. Battery status: 79% capacity, 90% remaining time, 7.9 kW power.

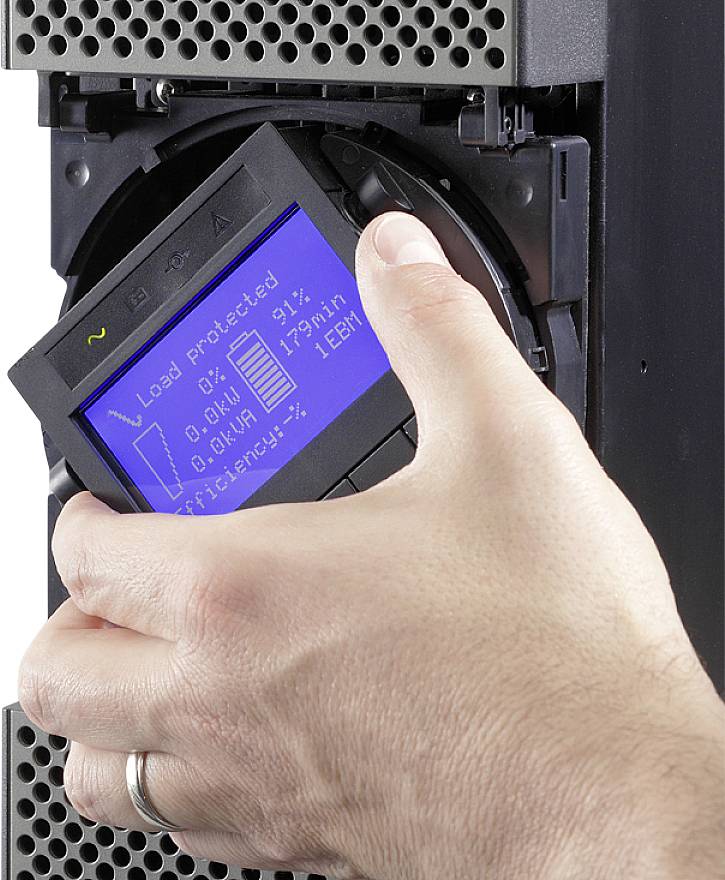

A hand is holding an electronic device with a screen, which is connected to a larger apparatus. The screen displays status information.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 9PX2200IRT2U 19" UPS 2200 VA

Highlights & Details

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 2200 VA

No. of outputs: 10 x

with surge protection: 10

of which battery-buffered: 10

Output: IEC C20 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 14 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets

Type: 9PX2200IRT2U

Width: 440 mm

Height: 86.5 mm

Depth: 605 mm

Weight: 25.02 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362724 Eaton 9PX2200IRT2U 19" UPS 2200 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.
