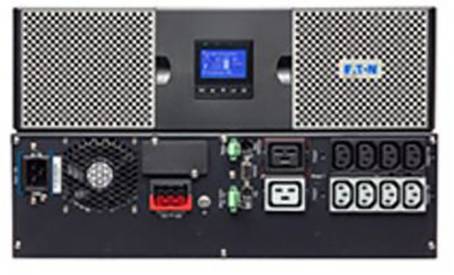

Front view of an electronic device with multiple power sockets and a small display in the centre, surrounded by ventilation grilles.

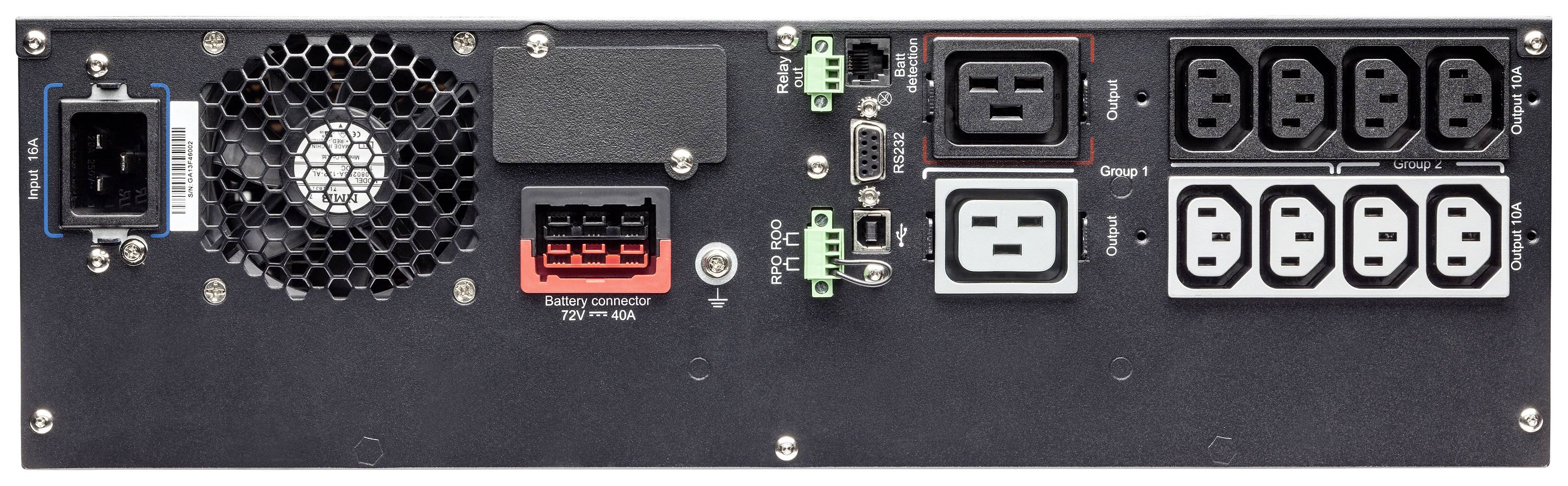

'Rear view of a server power supply with multiple ports and fans.'

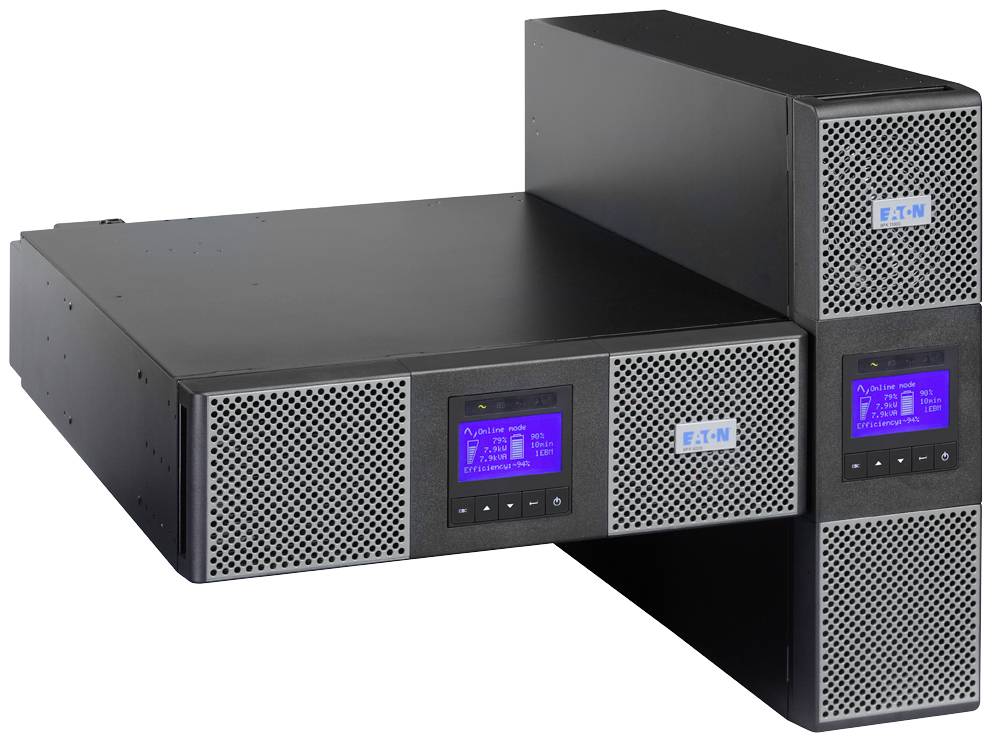

Two black uninterruptible power supply (UPS) devices with digital display, power strip, and blue operational information display. Top and side view.

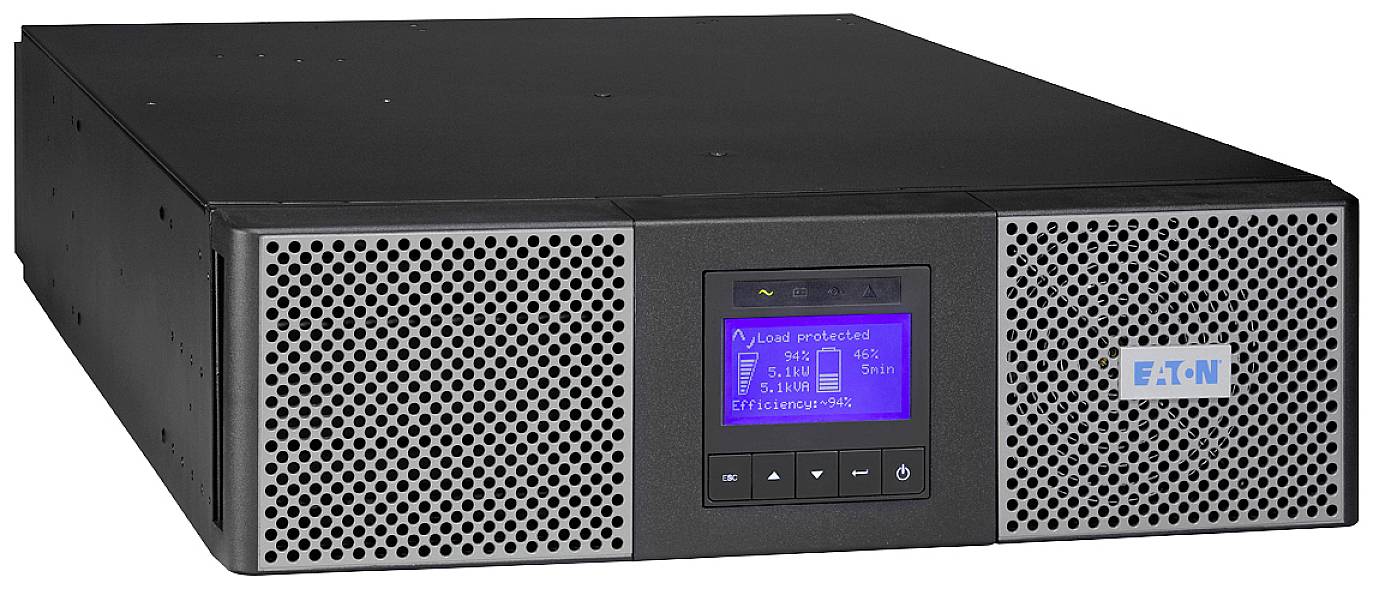

A black uninterruptible power supply (UPS) device with a digital display and control buttons.

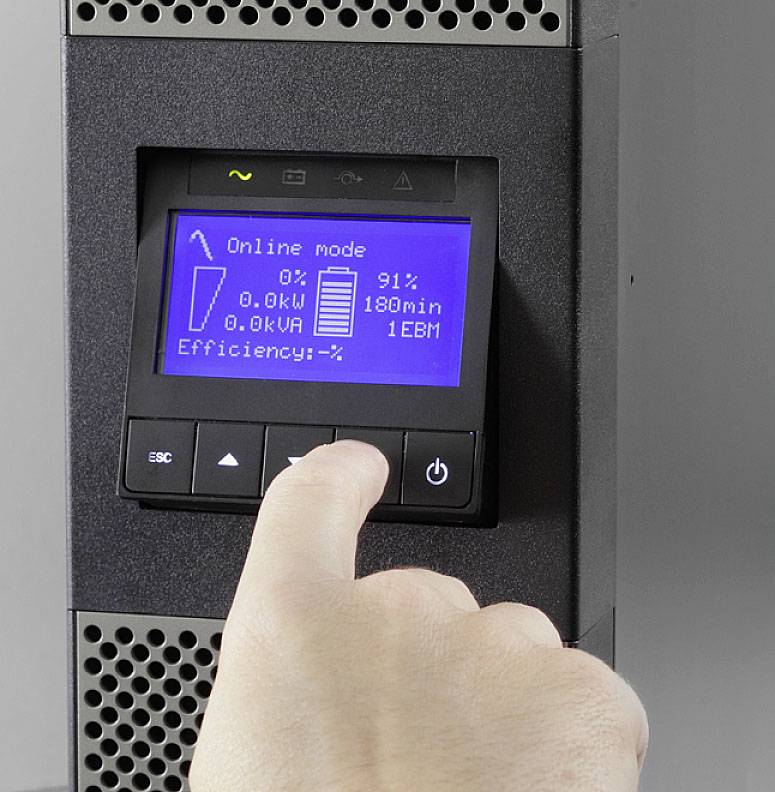

'A hand is operating a control display with a blue screen on an electronic device. The screen shows electricity consumption and efficiency.'

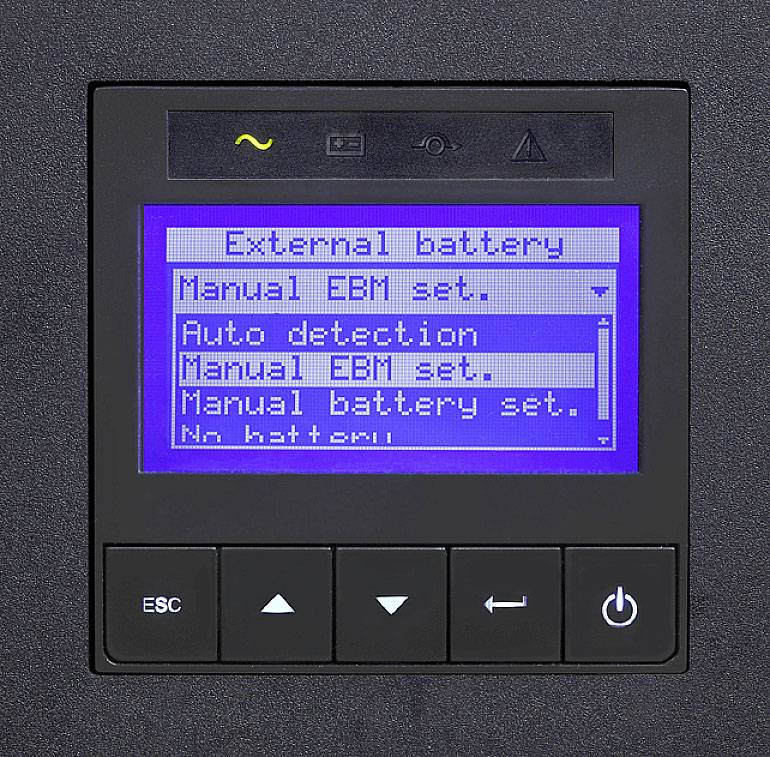

LCD display of an electronic device shows menu options: 'External battery', 'Auto detection', 'Manual EBM setting', 'No battery'.

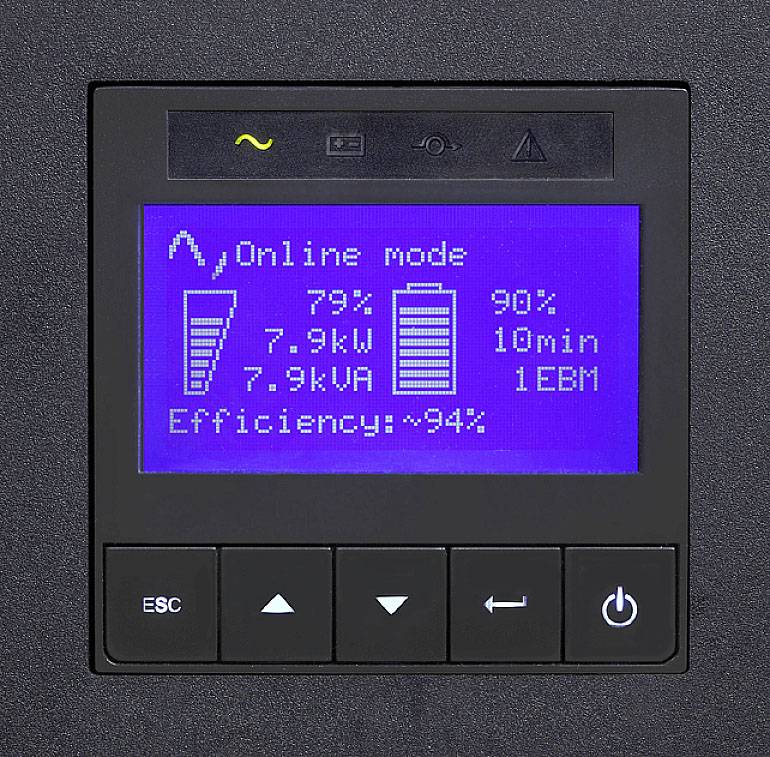

A display shows 'Online mode'. Left: Battery 79%, 7.9 kW, 7.9 kVA. Right: Battery 90%, 10 min. Bottom: 'Efficiency: 94%'.

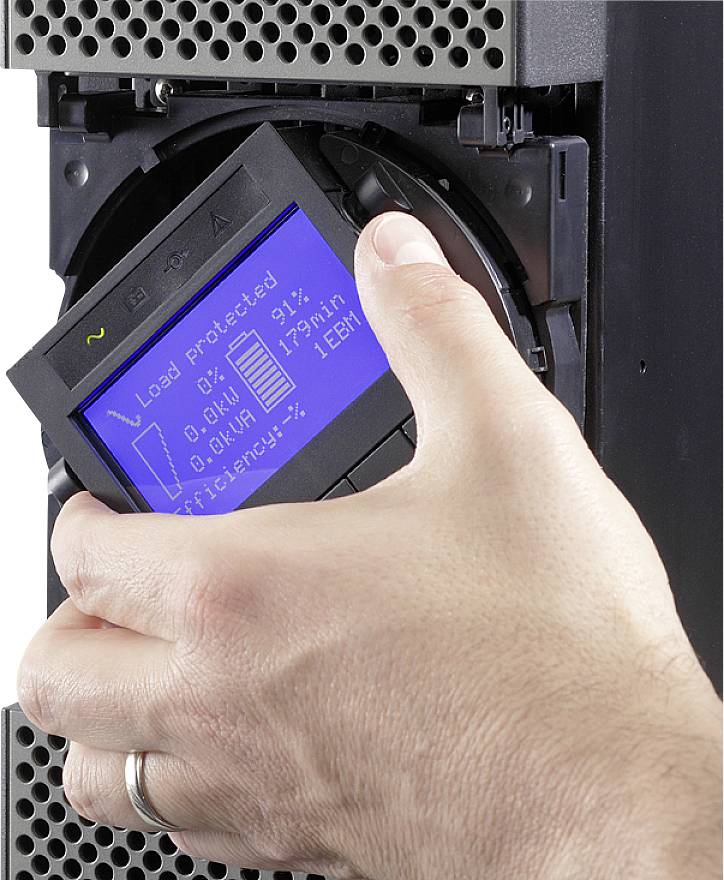

A hand slides an electronic device with a blue screen into a compartment. The screen displays information about the device's performance.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eaton 9PX 2200i RT3U - 2200 (VA/Watt) UPS

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 2200 VA

No. of outputs: 10 x

with surge protection: 10

of which battery-buffered: 10

Output: IEC C20 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 14 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets

Type: 9PX2200IRT3U

Width: 440 mm

Height: 130 mm

Depth: 485 mm

Weight: 24.52 kg

Screen size diagonal (inches): 24 inch

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362723 Eaton 9PX2200IRT3U 19" UPS 2200 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.
