Name: Eaton 9PX3000IRT2U 19" UPS 3000 VA
Brand: Eaton
SKU: 2362730

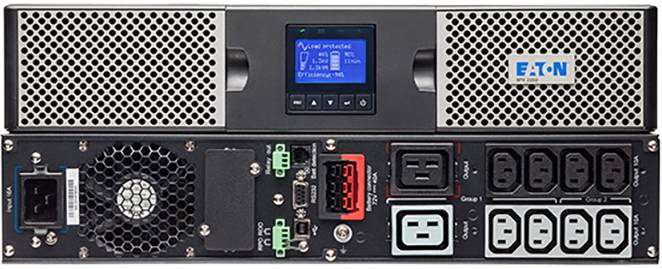

Front view of an uninterruptible power supply (UPS) with ventilation grilles and display. Rear shows various connections and sockets, suitable for server rooms.

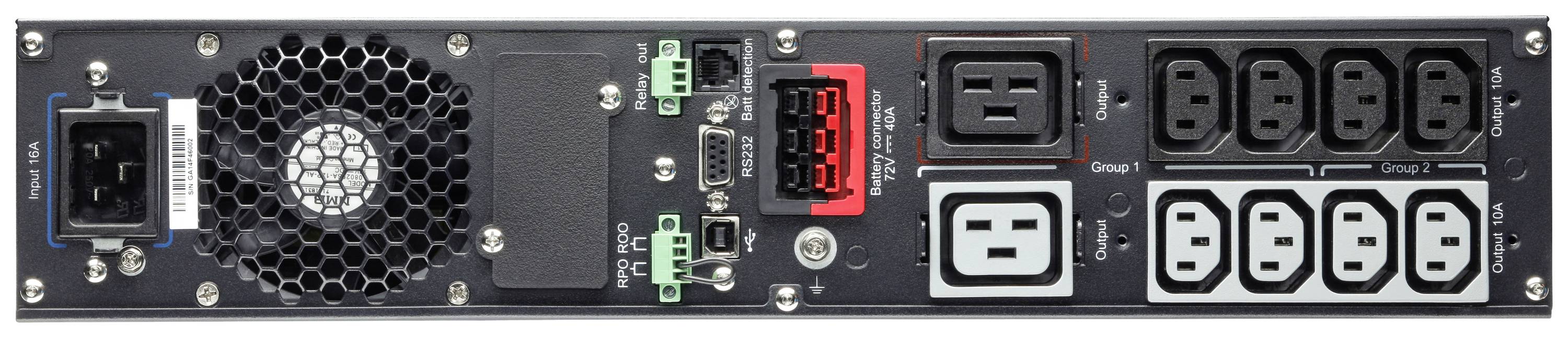

Back of a server with multiple power sockets, ventilation grilles, and ports. Numerous power connections on the right-hand side.

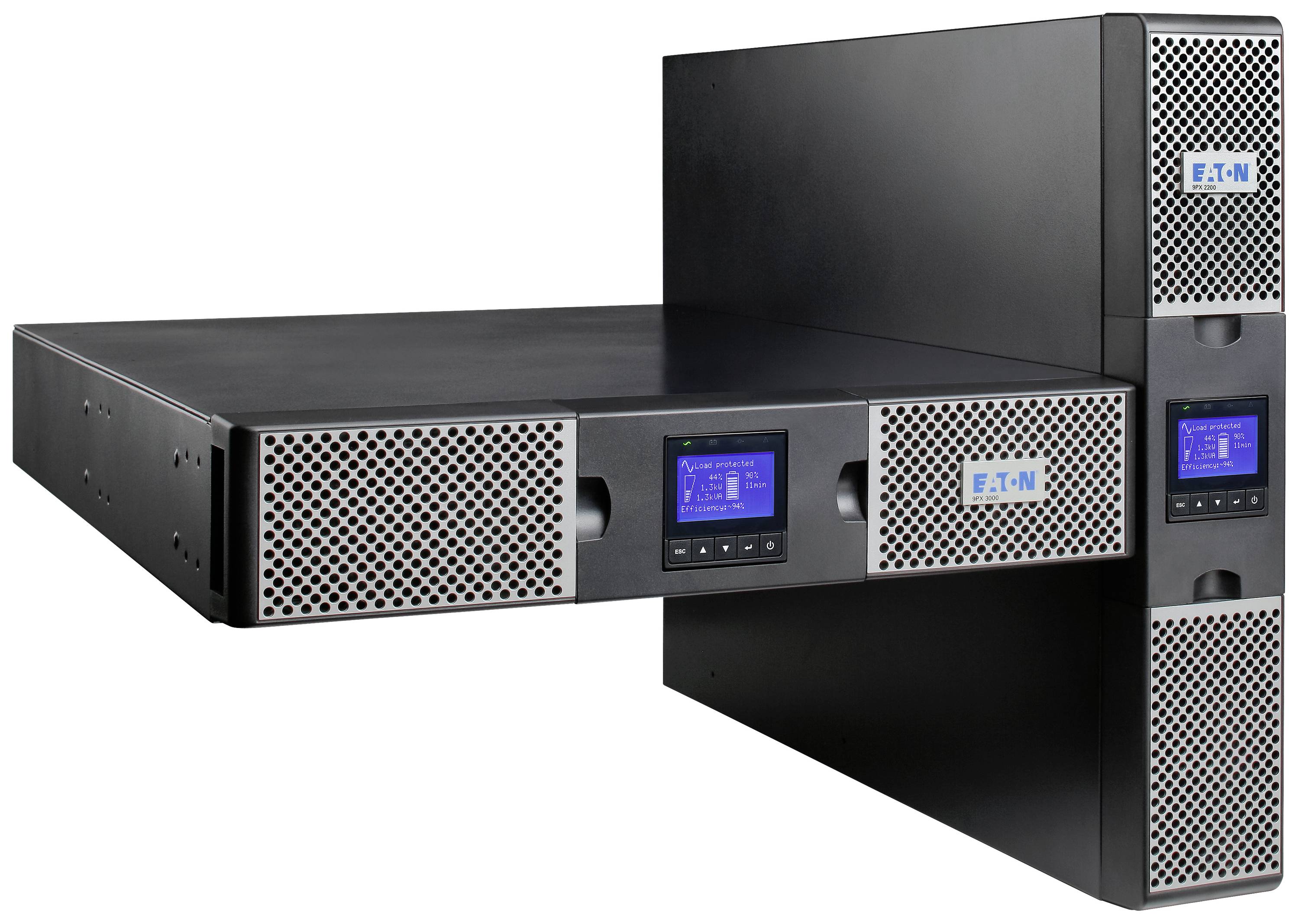

Server device with two visible ventilation grilles and a digital display on a black casing. Displays show energy information.

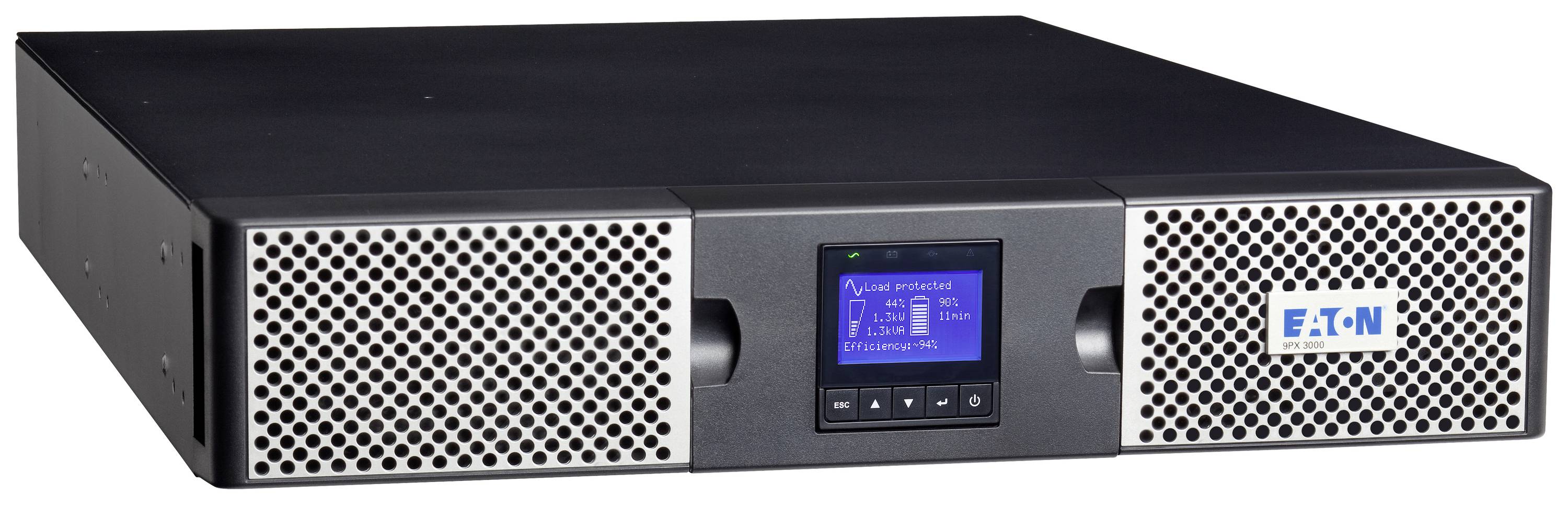

A black, rectangular device, presumably an uninterruptible power supply (UPS), with ventilation grilles and a digital display in the centre.

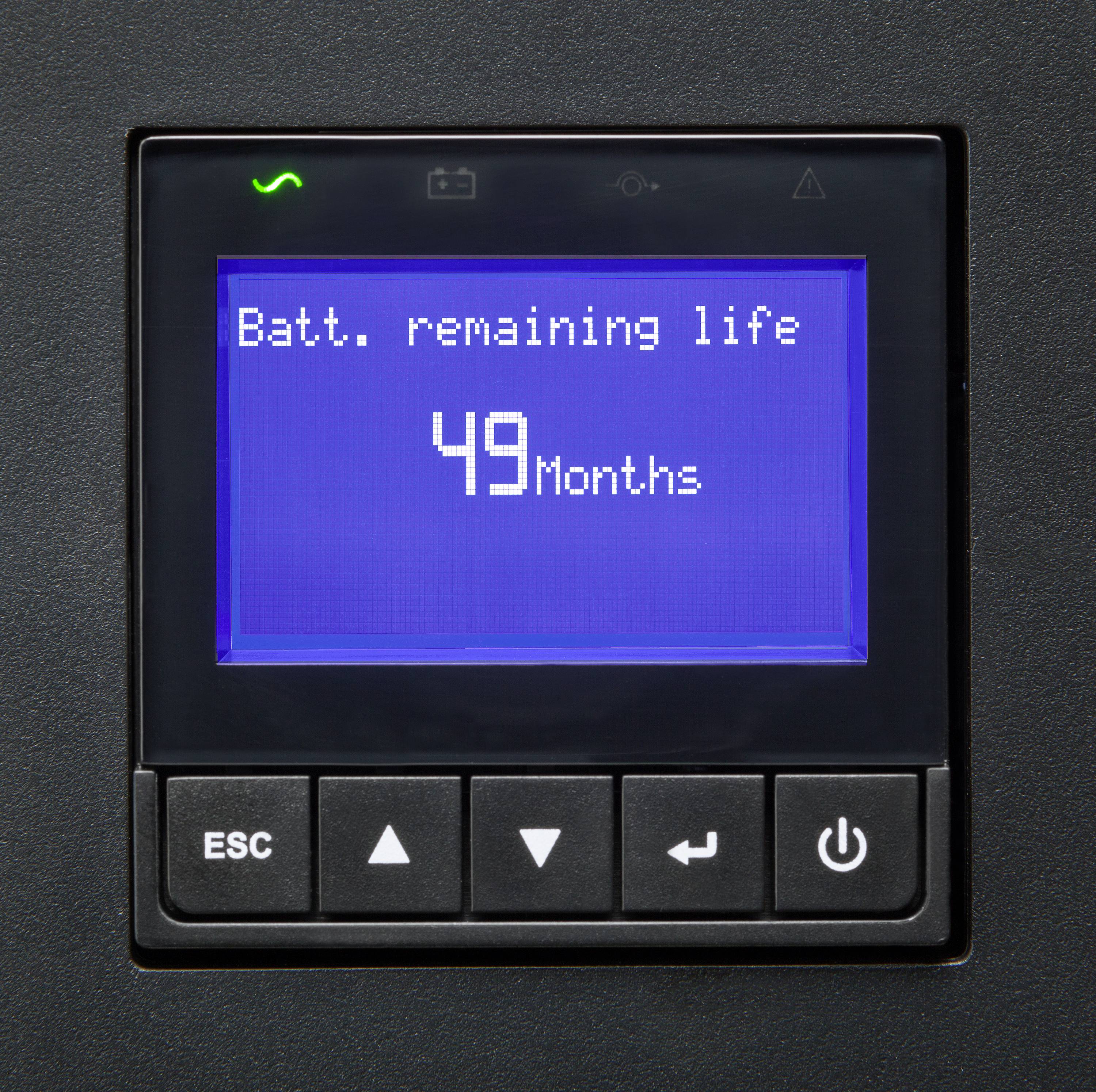

A screen displays 'Batt. remaining life 49 Months'. Beneath this are control buttons with symbols and an 'ESC' key.

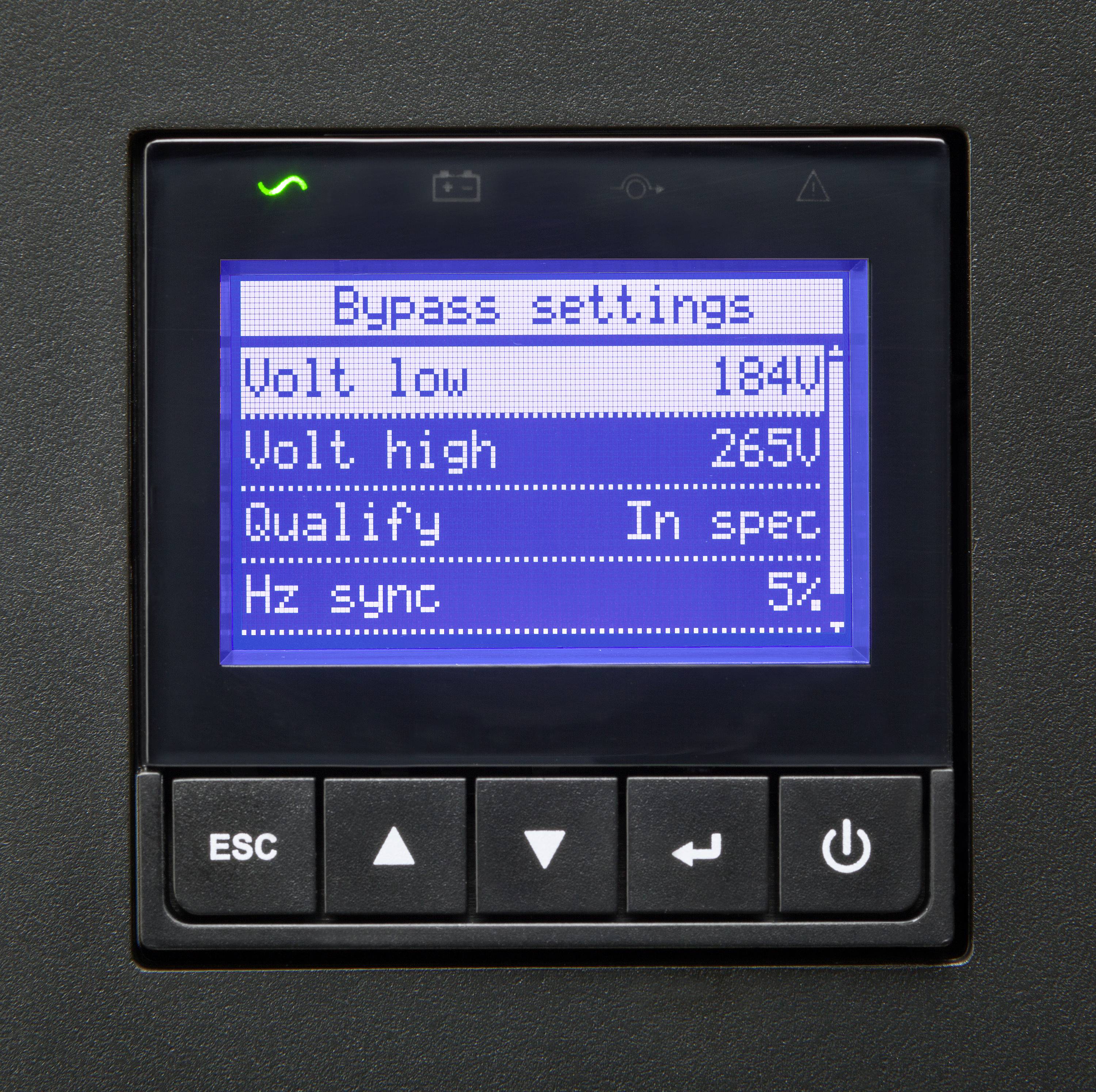

Screen display showing 'Bypass settings'. Displayed: Volt low 184V, Volt high 265V, Qualify In spec, Hz sync 5%.

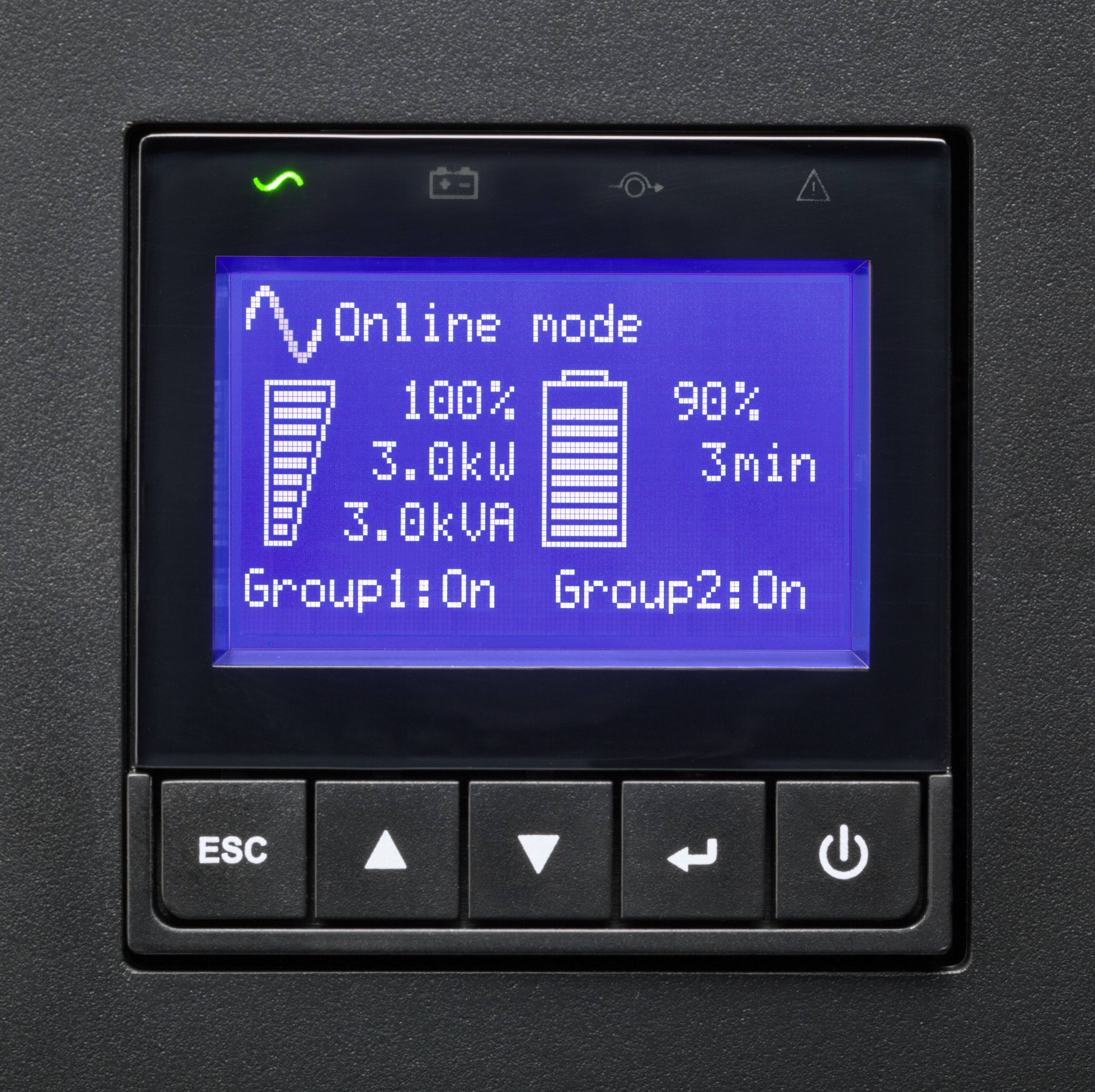

Display of UPS system shows 'Online mode', battery status: 100% and 90%, power: 3.0 kW, 3.0 kVA, runtime: 3 minutes. Groups 1 and 2 active.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Eaton 9PX 3000i RT2U - 3000 (VA/Watt) UPS

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 3000 VA

No. of outputs: 10 x

with surge protection: 10

of which battery-buffered: 10

Output: IEC C20 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 13 min

Bridging time, max load: 4 min

Surge protection for: Mains outlets

Type: 9PX3000IRT2U

Width: 440 mm

Height: 86.5 mm

Depth: 605 mm

Weight: 27.57 kg

Screen size diagonal (inches): 24 inch

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Output power capacity: 3 kVA

Typical backup time at half load: 9.5 min

Rack mount kit: yes

USB port: yes

Hot-swap battery: yes

Management card included: no

RS-232 ports: 1

Power factor: 1

Automatic battery test: yes

Input operation voltage (max): 276 V

Input operation voltage (min): 176 V

Output operation voltage (min): 200 V

Output operation voltage (max): 240 V

Documents & Downloads

Datasheet

Datasheet 2362730 Eaton 9PX3000IRT2U 19" UPS 3000 VA

User & Safety Instructions

User & Safety Instructions 2362730 Eaton 9PX3000IRT2U 19" UPS 3000 VA

Conformity certificate

Conformity certificate 2362730 Eaton 9PX3000IRT2U 19" UPS 3000 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.

Scope of delivery

IEC connection cable

System requirements

Windows XP, Windows Vista and Windows 7, 8 & 51
