Buy Eaton 9PX3000IRT3U 19" UPS 3000 VA

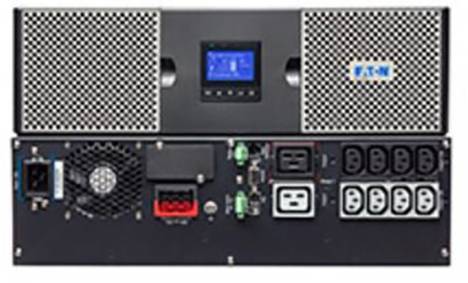

Rear view of an electrical distribution board with multiple sockets, connections, fan, and battery terminal.

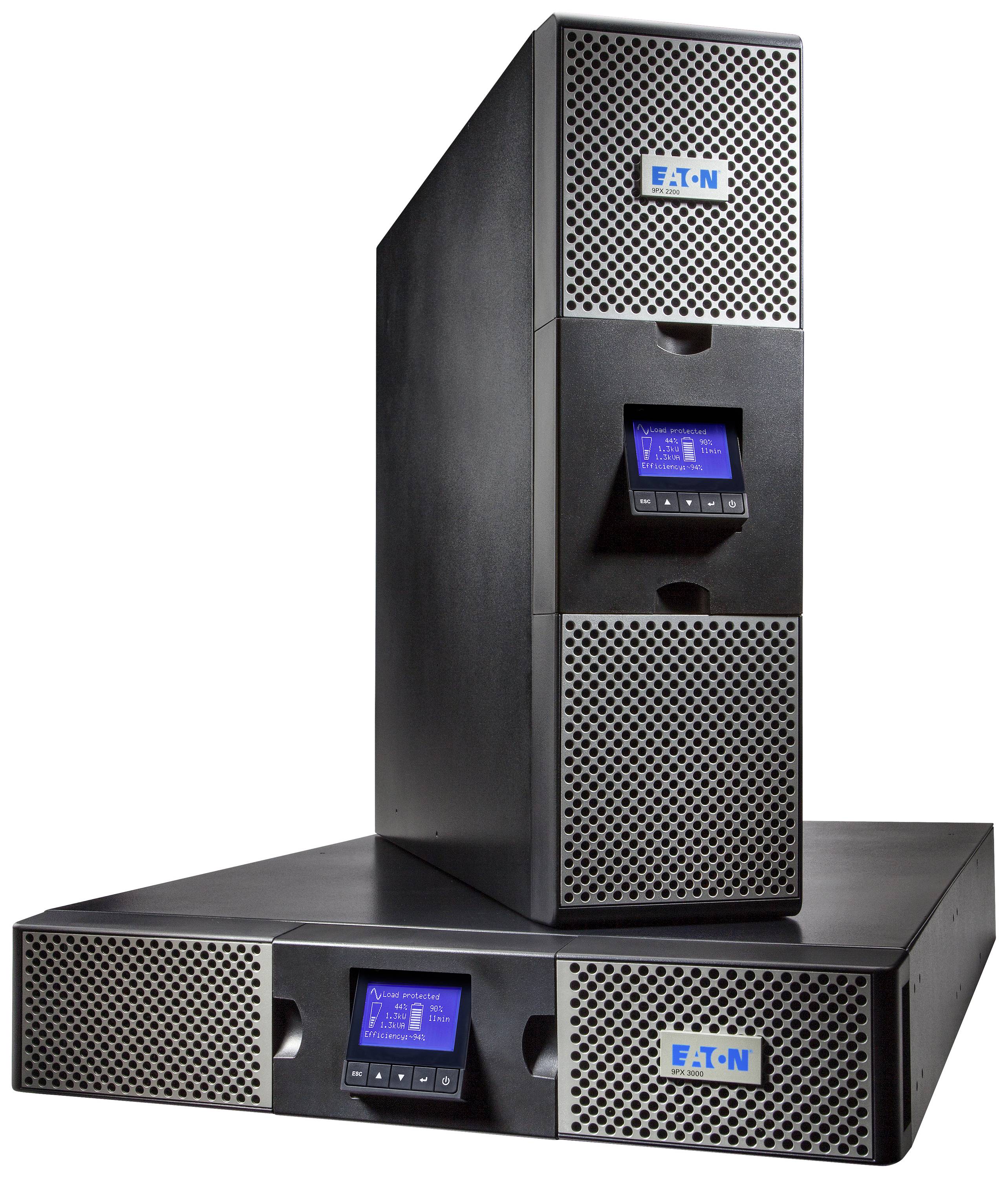

'Two black EATON server enclosures with ventilation grilles and blue displays, one standing, the other horizontal, on a white background.'

A black Eaton server device with ventilation grilles and a digital display in the centre, showing technical information.

Display screen of a device shows 'Battery remaining life 49 Months'.

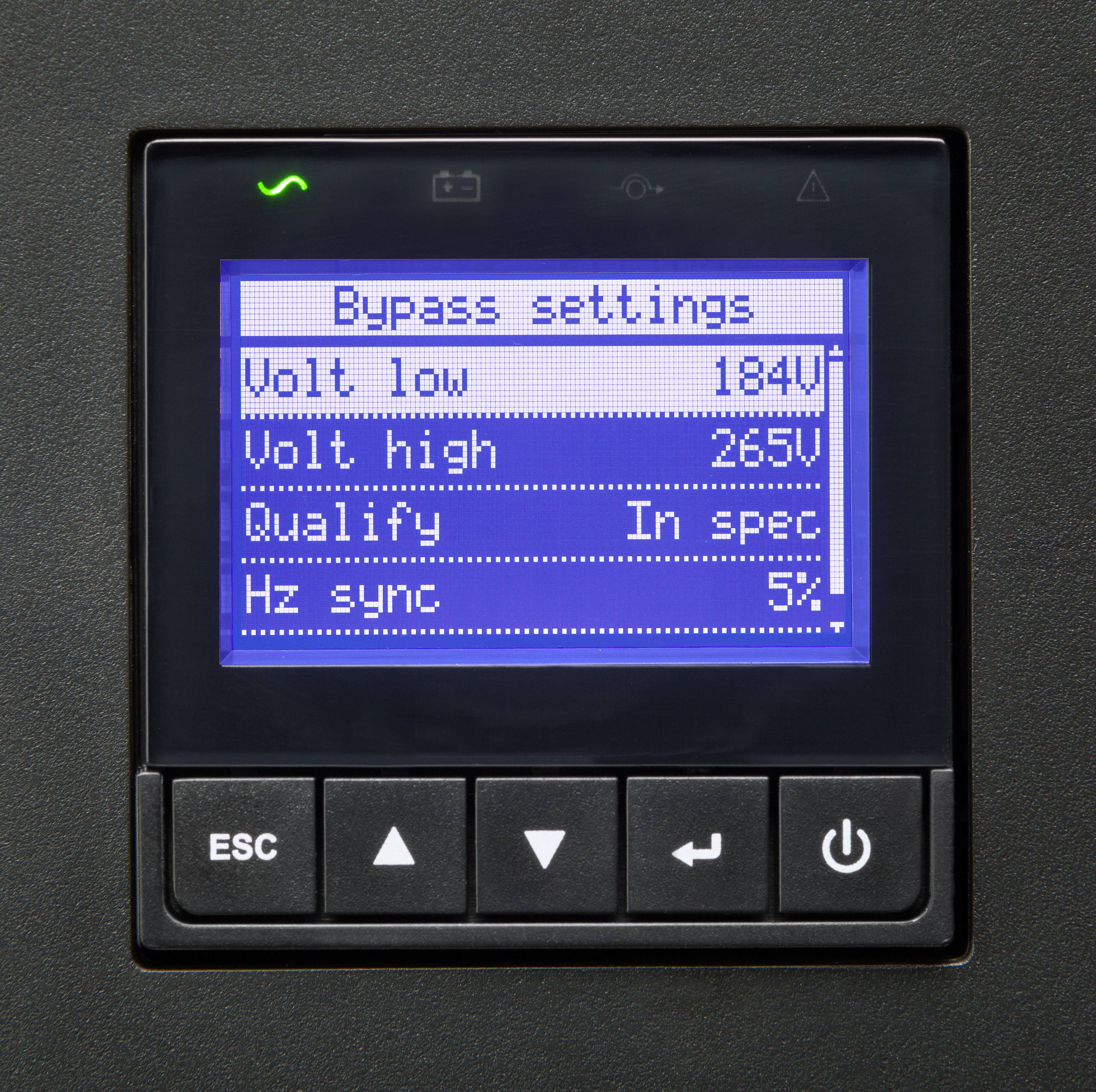

'Bypass settings' display on electronic device. Settings: 'Volt low' 184V, 'Volt high' 265V, 'Qualify' 'In spec', 'Hz sync' 5%.

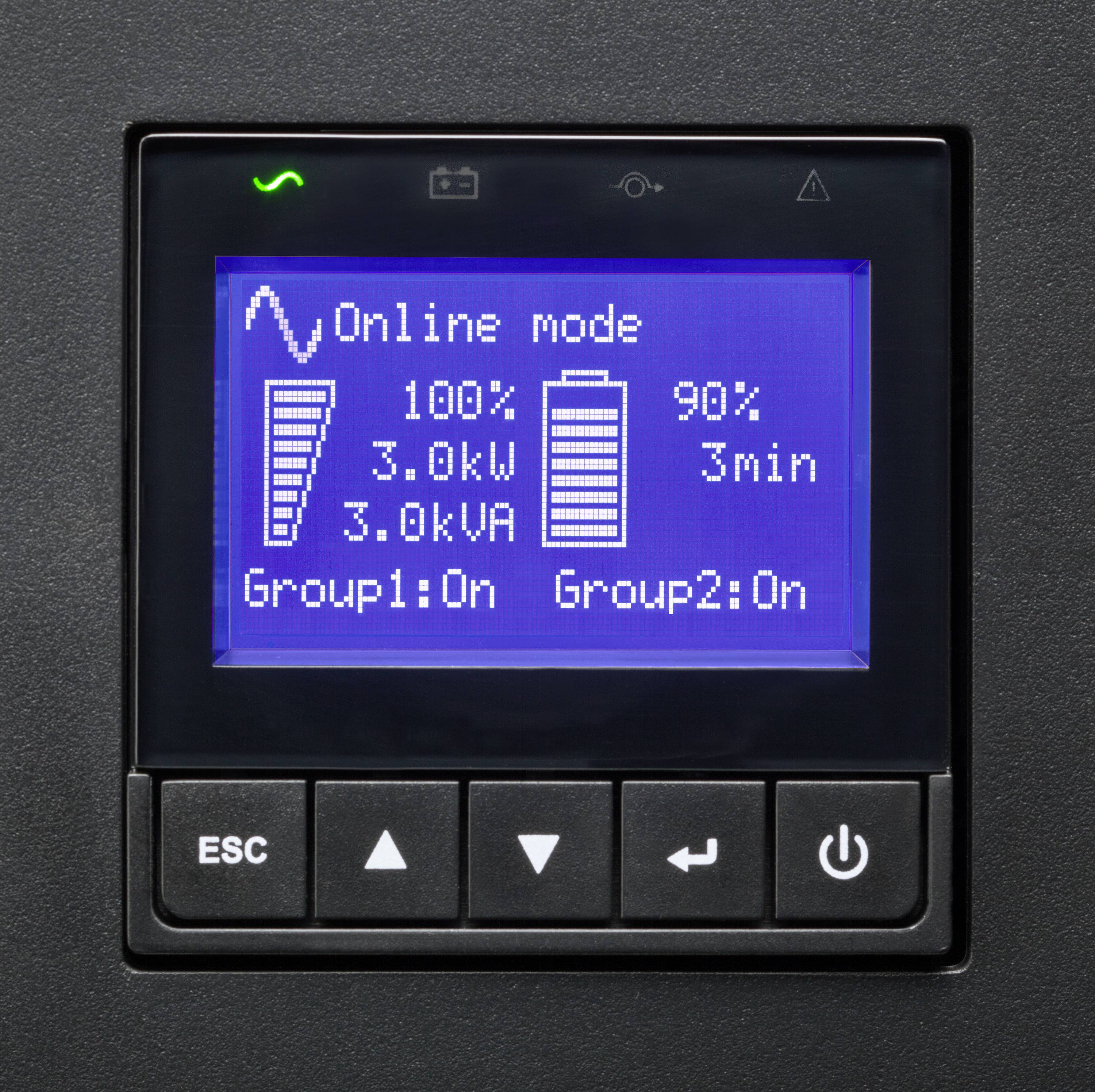

Display of a UPS controller in 'online mode': Left battery 100%, 3.0kW, 3.0kVA; Right battery 90%, 3 mins; Groups 1 and 2 are switched on.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eaton 9PX3000IRT3U 19" UPS 3000 VA

Power factor 1 (Watt=VA)
Up to 94% efficiency in online operation
Multilingual LC-display with measured value display

Technical specifications

Product type: 19" UPS

Nominal power: 3000 VA

No. of outputs: 10 x

with surge protection: 10

of which battery-buffered: 10

Output: IEC C20 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 13 min

Bridging time, max load: 4 min

Surge protection for: Mains outlets

Type: 9PX3000IRT3U

Width: 440 mm

Height: 130 mm

Depth: 485 mm

Weight: 27.41 kg

Screen size diagonal (inches): 24 inch

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2362729 Eaton 9PX3000IRT3U 19" UPS 3000 VA

User & Safety Instructions

User & Safety Instructions 2362729 Eaton 9PX3000IRT3U 19" UPS 3000 VA

Description

Eaton 9PX 1000-3000W ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunication equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Standard with USB & RS232 interface for your network communication, remote on/OFF
UPS management software (for LAN & WAN) on CD-ROM with data cable included
All models come standard with automatic bypass for maximum availability, HOT-SWAP batteries
All models come standard with a complete 19" mounting kit
All Netpack models also include a Web-SNMP card
HOT SWAP versions with removable bypass for replacement during operation.
