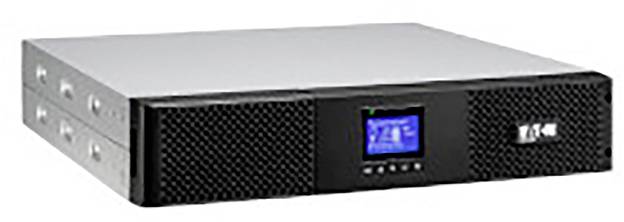

A black, rectangular electronic device with a digital display in the centre, sitting on a table surface.

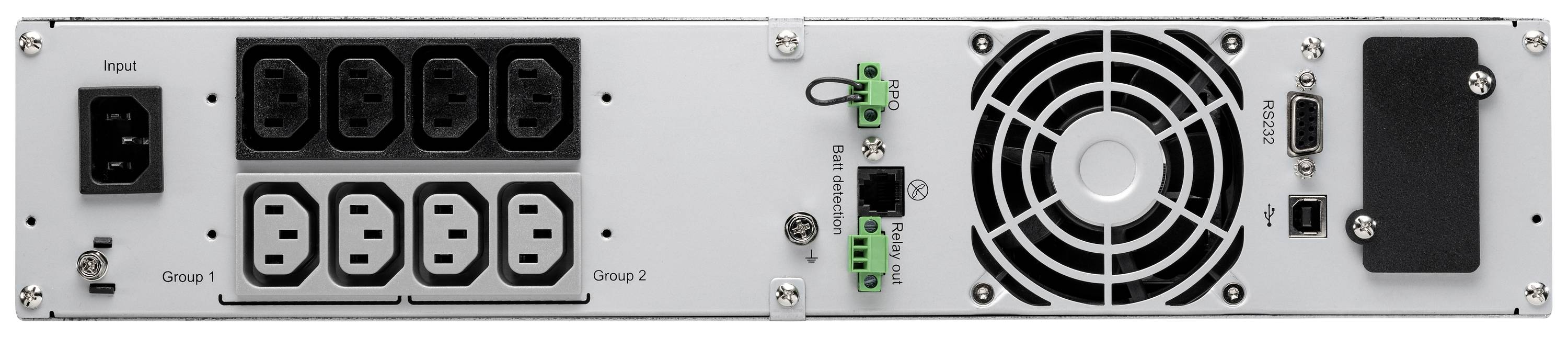

Back of an electronic device with multiple power sockets, ventilation fan, connections, and group switches.

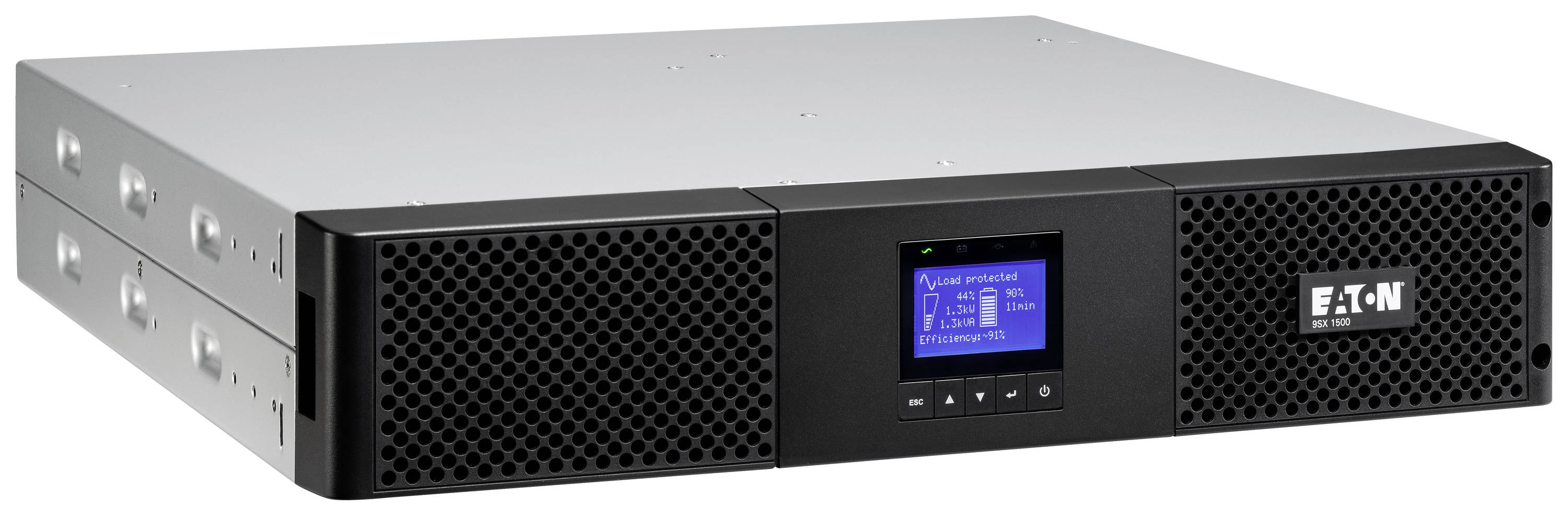

A black and silver electronic device with a display and the label 'Eaton', apparently an uninterruptible power supply (UPS).

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eaton 9SX 2000i Rack2U - 2 / 1.8 (kVA/kilowatt) UPS

With output power factor 0.9, e.g. 3000VA / 2700W
Complete mounting kit for 19" rack installation (rack models)
Bridging time can be extended with up to 4 battery modules (EBM) (except 700VA Tower)

Technical specifications

Product type: 19" UPS

Nominal power: 2000 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 8

Output: IEC C14 plug

Features: Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module

Bridging time normal load: 17 min

Bridging time, max load: 6 min

Surge protection for: Mains outlets

Type: 9SX2000IR

Width: 438 mm

Height: 86.5 mm

Depth: 608 mm

Weight: 26.5 kg

Screen size diagonal (inches): 24 inch

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362711 Eaton 9SX2000IR 19" UPS 2000 VA

Description

Eaton 9SX 700-6000VA ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040-3 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunications equipment, VOICE over IP (VOIP)

This text is machine translated.

Features

Available interfaces, RS232, USB, 1*relay and emergency-off, incl. RS323 + USB cable
Communication slot for optional SNMP or relay card
Power measurement in kW/h, automatic battery detection
Software Suite, Shutdow and Monitoring Software.
