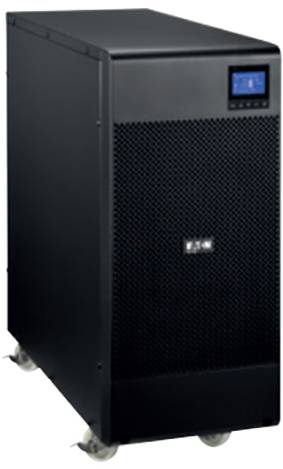

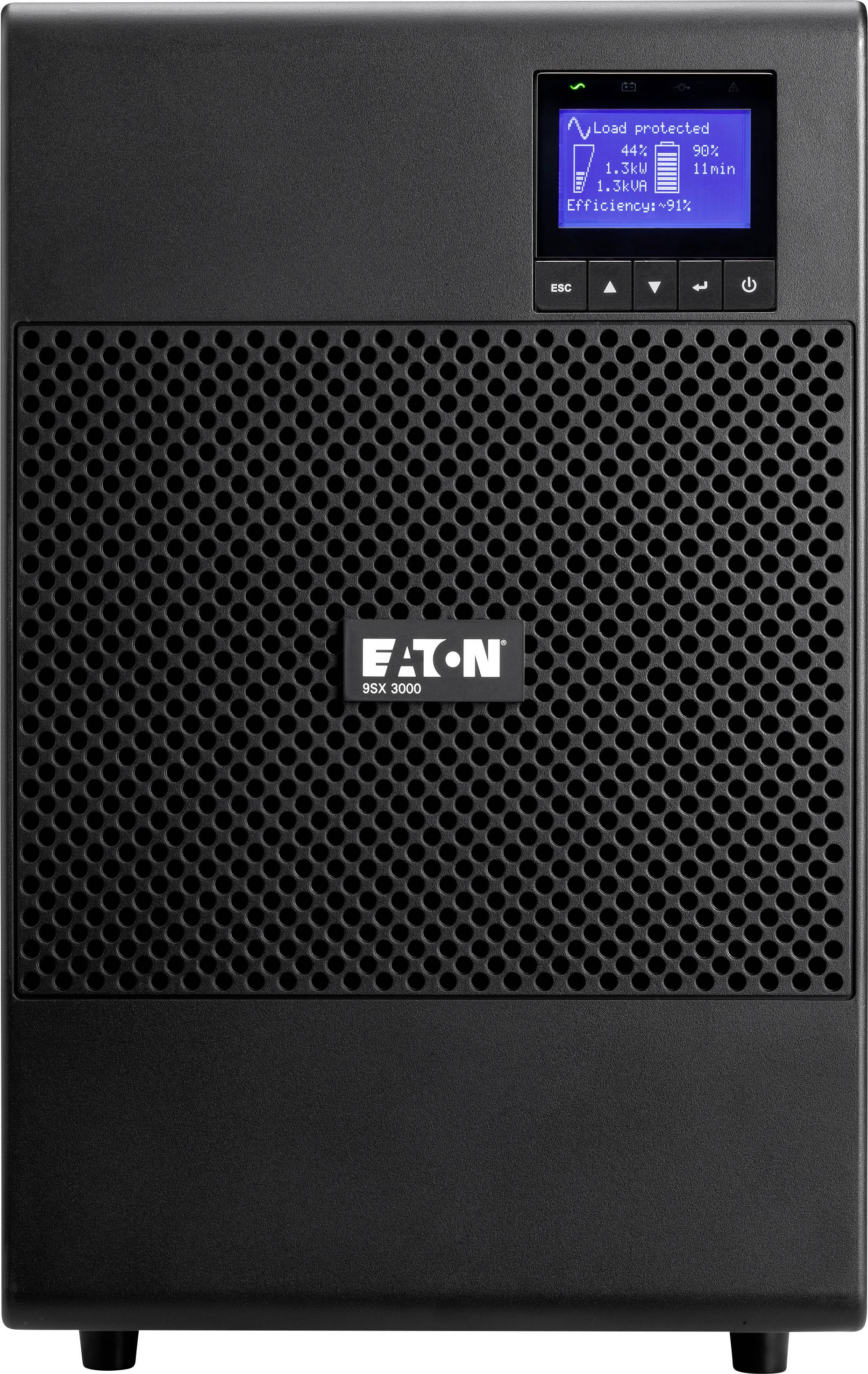

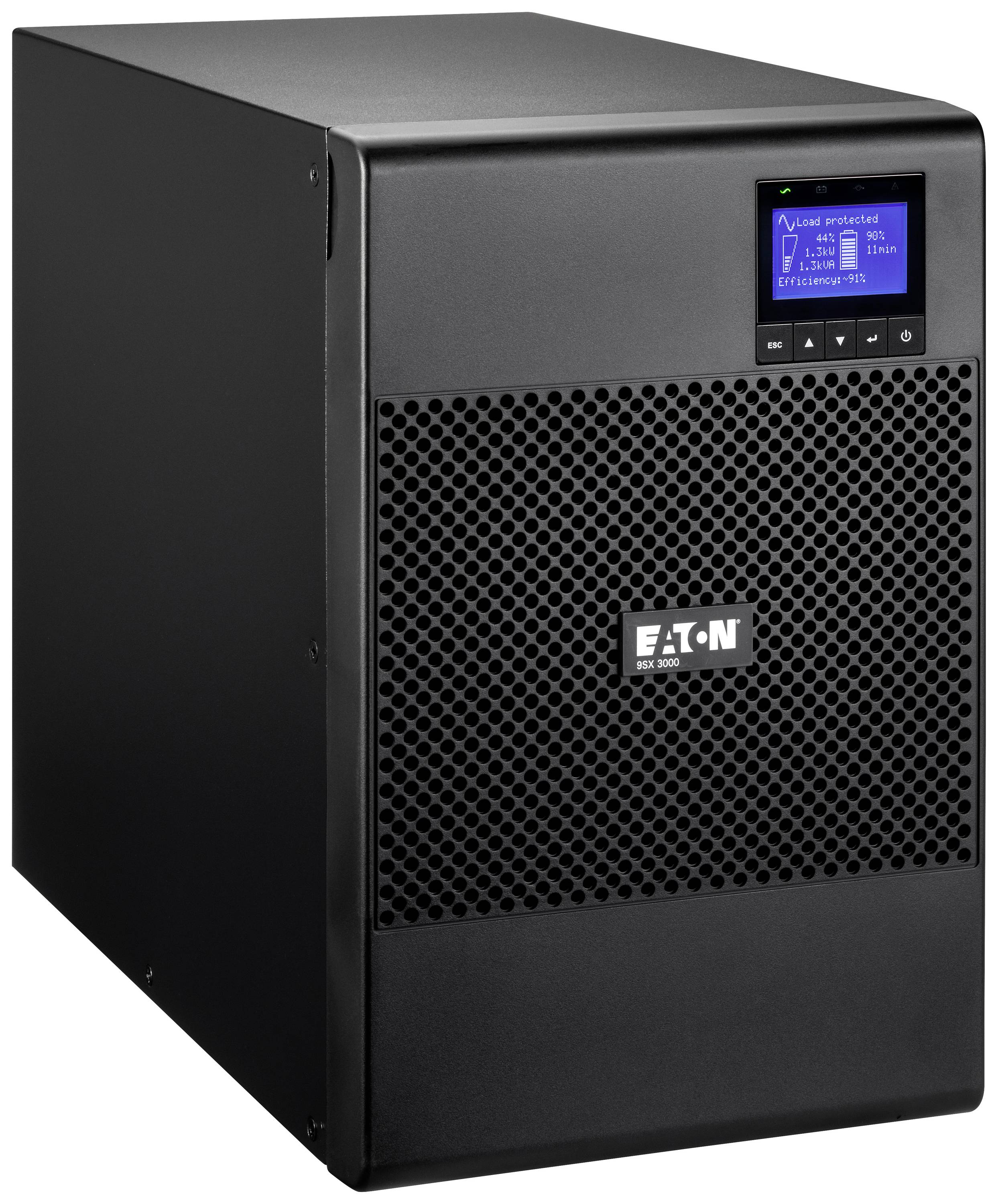

Eaton 9SX6KI UPS system 6000 VA
EAN:
Part number:
Item no:
Highlights & Details
Eaton 9SX 6000i - 6000/5400 (VA/Watt) UPS
- With output power factor 0.9, e.g. 3000VA / 2700W
- Complete mounting kit for 19" rack installation (rack models)
- Bridging time can be extended with up to 4 battery modules (EBM) (except 700VA Tower)
Technical specifications
- Product type
UPS system
- Nominal power
6000 VA
- No. of outputs
7 x
- with surge protection
7
- of which battery-buffered
7
- Output
Terminal strip
- Features
Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module
- Bridging time normal load
23 min
- Bridging time, max load
8 min
- Surge protection for
Mains outlets
- Type
9SX6KI
- Width
244 mm
- Height
575 mm
- Depth
542 mm
- Weight
65.5 kg
- Cable length
0 cm
- Screen size diagonal (inches)
24 inch
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2362704 Eaton 9SX6KI UPS system 6000 VA
Description
Eaton 9SX 700-6000VA ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040-3 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunications equipment, VOICE over IP (VOIP)
This text is machine translated.
This text is machine translated.
Features

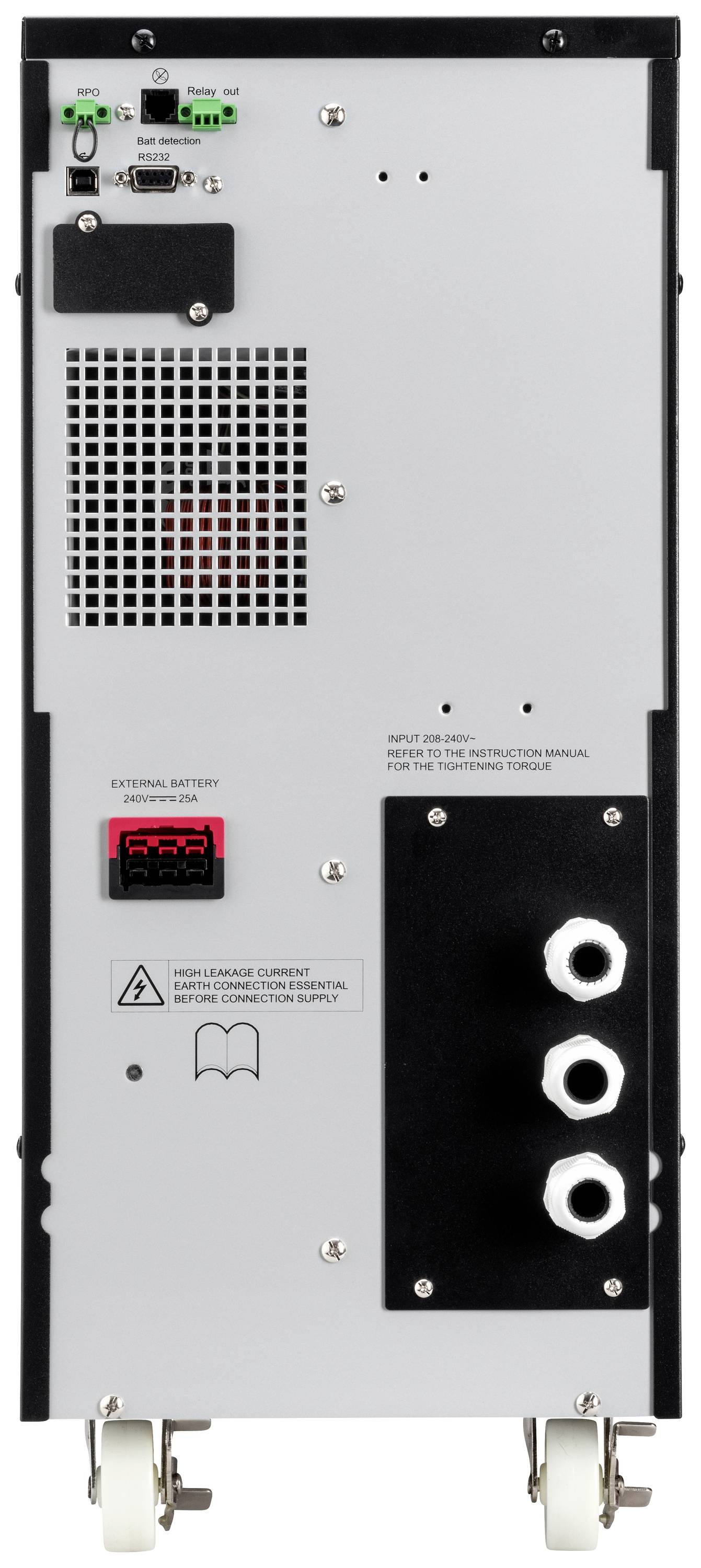

- Available interfaces, RS232, USB, 1*relay and emergency-off, incl. RS323 + USB cable
- Communication slot for optional SNMP or relay card
- Power measurement in kW/h, automatic battery detection
- Software Suite, Shutdow and Monitoring Software.
Scope of delivery
- IEC connection cable
System requirements
- Windows XP, Windows Vista and Windows 7, 8 & 82
