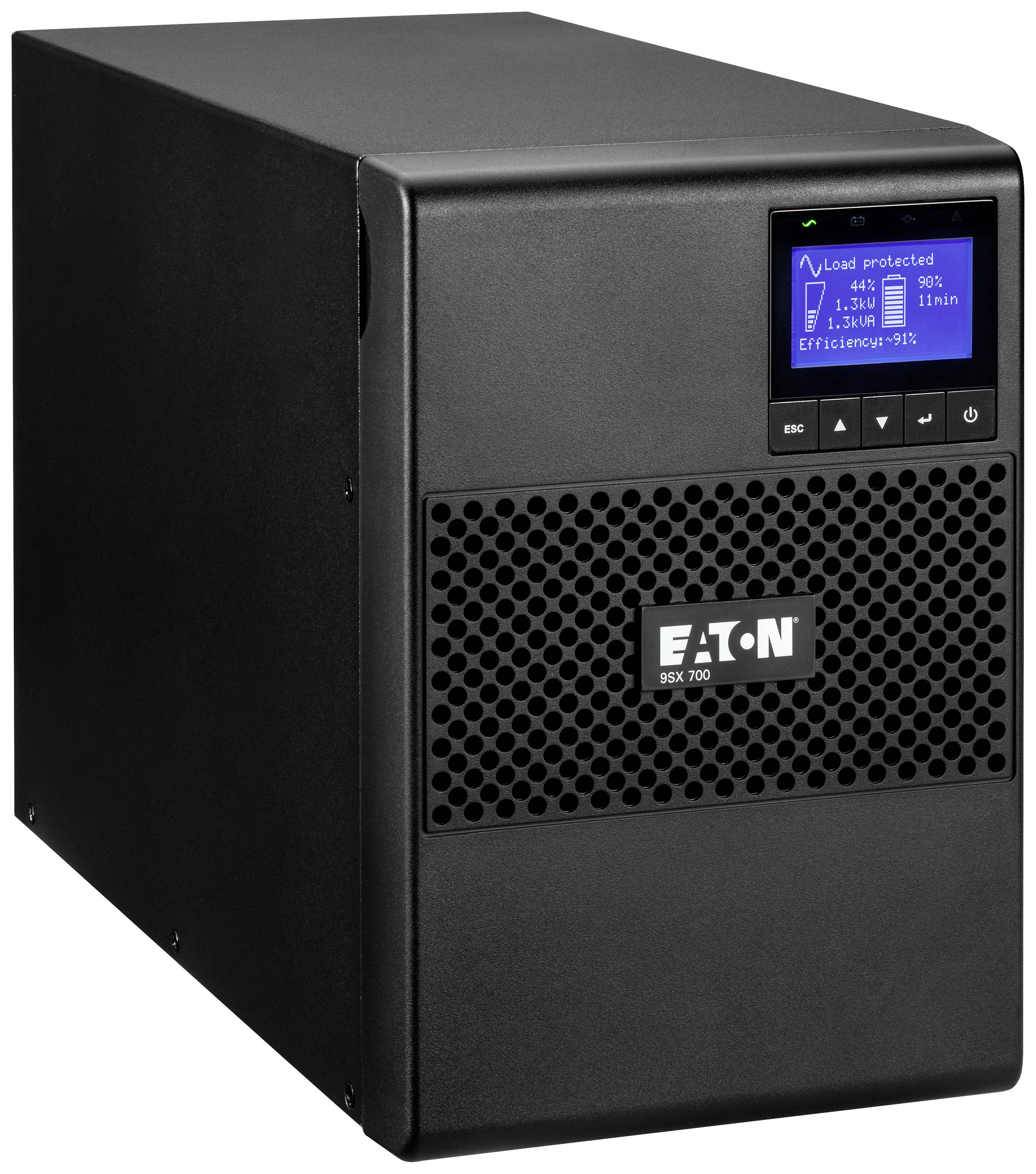

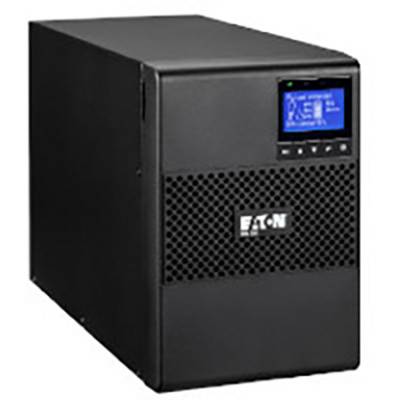

Eaton 9SX700I UPS system 700 VA
EAN:
Part number:
Item no:
Eaton 9SX700I UPS system 700 VA
Highlights & Details
- With output power factor 0.9, e.g. 3000VA / 2700W
- Complete mounting kit for 19" rack installation (rack models)
- Bridging time can be extended with up to 4 battery modules (EBM) (except 700VA Tower)
Technical specifications
- Product type
UPS system
- Nominal power
700 VA
- No. of outputs
6 x
- with surge protection
6
- of which battery-buffered
6
- Output
IEC C14 plug
- Features
Alarm
USB port
LCD
Serial port
Network interface card
Relay card
Switching module
- Bridging time normal load
18 min
- Bridging time, max load
7 min
- Surge protection for
Mains outlets
- Type
9SX700I
- Width
160 mm
- Height
252 mm
- Depth
357 mm
- Weight
11.5 kg
- Screen size diagonal (inches)
24 inch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2362698 Eaton 9SX700I UPS system 700 VA
Description
Eaton 9SX 700-6000VA ON-LINE, DOUBLE-WANDLERTECHNIK - highest protection against power failures, voltage and frequency fluctuations - highest class VFI-SS-111 according to EN 62040-3 - pure sine output - Application area: High-performance protection for tower and rack servers, automation systems, controls, medical technology, telecommunications equipment, VOICE over IP (VOIP)
This text is machine translated.
This text is machine translated.
Features
- Available interfaces, RS232, USB, 1*relay and emergency-off, incl. RS323 + USB cable
- Communication slot for optional SNMP or relay card
- Power measurement in kW/h, automatic battery detection
- Software Suite, Shutdow and Monitoring Software.
Scope of delivery
- IEC connection cable
System requirements
- Windows XP, Windows Vista and Windows 7, 8 & 45
