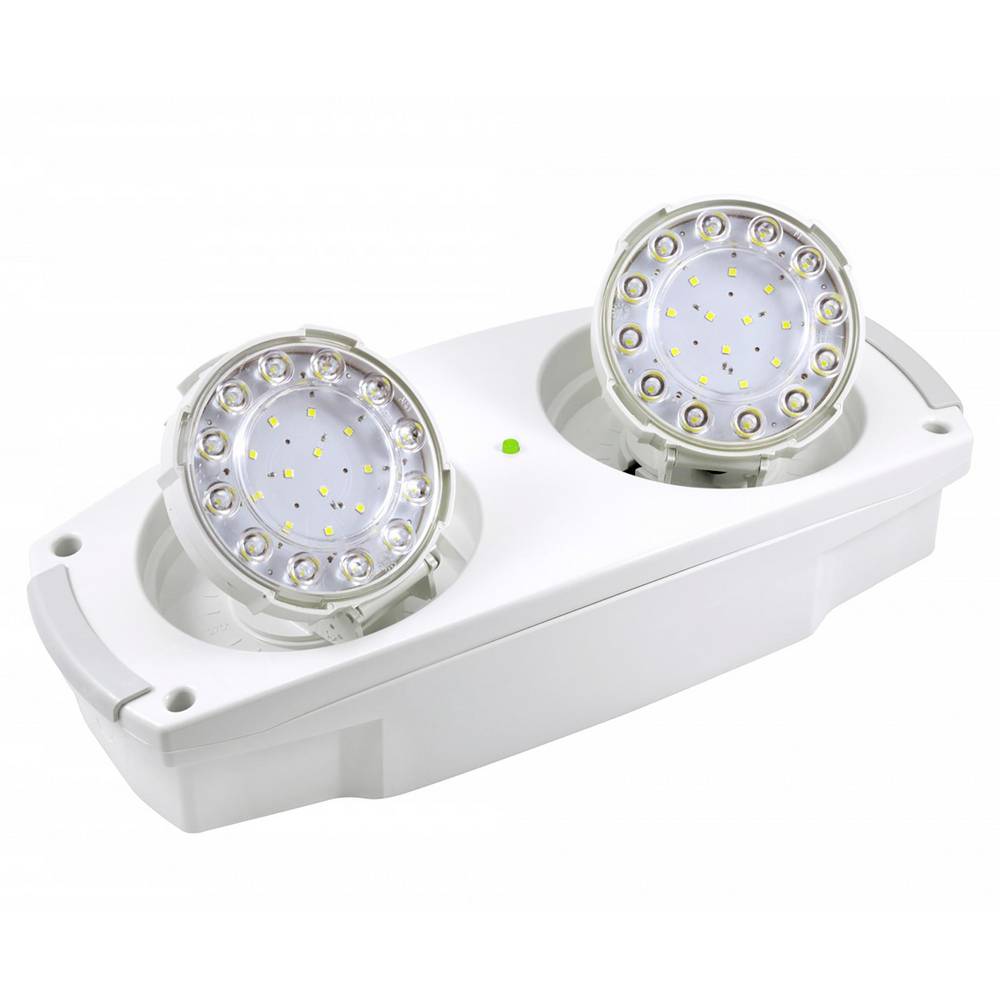

Eaton BL2MD-C3-AT LED escape route lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Wall mounting/ceiling mounting
- Function: Emergency exit lighting
- Suitable for type plate: Other
- With pictogram: No.
- Suitable for standby circuit: No.
- Suitable for continuous switching: No.
- With remote switch connection: Yes
- With remote control: No.
- Emergency monitoring system: Automatic self-test
- Emergency power supply system: Decentralized (single battery)
- NiCd rechargeable battery technology
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 2
- Socket: Without
- Number of lamp heads: 2
- Housing material: Plastic
- Housing color: White
- Cover material: Transparent plastic
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- Removable operating device: No.
- Light distributors: Refractor lens
- Constant luminous flux regulation: No.
- Protection class (IP) IP65
- Impact strength: IK07
- Protection class according to IEC 61140:II
- Lamp with limited surface temperature "D-sign" according to EN 60598-2-24: No.
- Rated ambient temperature according to IEC 62722-2-1: 5..40 °C.
- Rated light current according to IEC 62722-2-1: 400 lm
- Max. System power 3.8 W
- Colour temperature 6293.15..7313.15 K
- Power factor 0.8
- Nominal operation time 3 h
- Width 178 mm
- Height/depth 106 mm
- Length: 417 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 2
- Conductor cross-section: 1.5 mm²
- Connection type: Plug connection
- Dim
(L x W) 417 mm x 178 mm
- Product type
LED escape route lighting
- Operating voltage
220 V
240
3.8 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Number of pins
2
- Width
178 mm
- Depth
106 mm
IP65
- Protection class
II
- Factory colour
White
- Length
417 mm
- Colour
Daylight white
- Mounting type
Wall
Ceiling
- Total luminous flux
400 lm
- LEDs
2
7313 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795728 Eaton BL2MD-C3-AT LED escape route lighting
User & Safety Instructions
User & Safety Instructions 3795728 Eaton BL2MD-C3-AT LED escape route lighting
Description
Eaton BeamLite II single battery with auto test function, 3 h safety lighting duration with eFocus (close and wide illumination, programmed by the user), 400 lumens protection class IP65, insulation class II.
