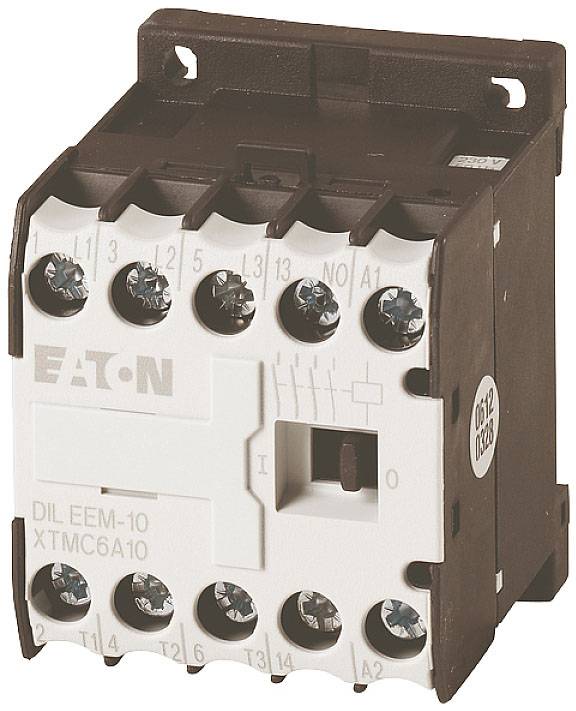

Eaton DILEEM-10(230V50HZ,240V60HZ) Electrical contactor 3 makers 3 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
3 kW
Connection
Screws
Type
DILEEM-10(230V50HZ,240V60HZ)
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Current type: AC actuation
- Voltage type for operation: AC
- rated operating power IE at AC-4, 400 V: 2.2 kW
- rated operating current IE at AC-1, 400 V: 22 A
- rated operating current IE at AC-3, 400 V: 6.6 A
- rated operating current IE at AC-4, 400 V: 5 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILEEM-10(230V50HZ,240V60HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
230 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
230 - 240 V AC
3 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
