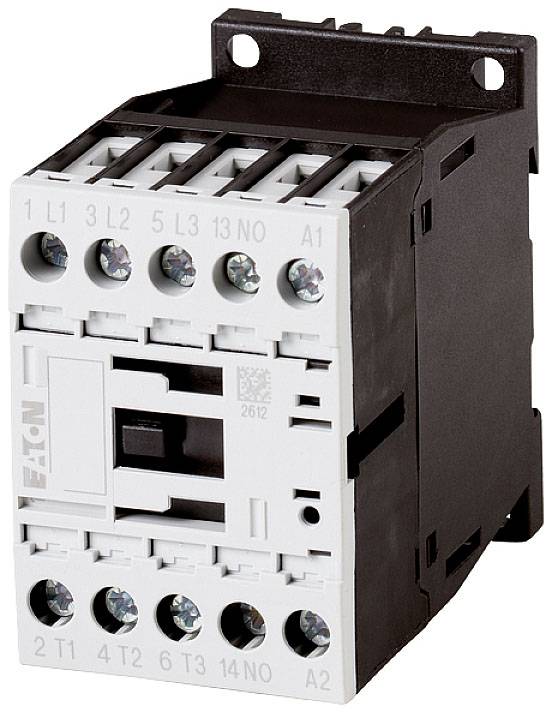

Eaton DILM12-10(230V50/60HZ) Electrical contactor 3 makers 5.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
5.5 kW
Connection
Screws
Type
DILM12-10(230V50/60HZ)
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Current type: Alternating current actuation
- Voltage type for activation: AC
- rated operating power IE at AC-4, 400 V: 3 kW
- rated operating current IE at AC-1, 400 V: 22 A
- rated operating current IE at AC-3, 400 V: 12 A
- rated operating current IE at AC-4, 400 V: 7 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM12-10(230V50/60HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
5.5 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
45 mm
68 mm
75 mm
FALSE
5.5 kW
3
0
1
0
12 A
22 A
230-230 V
230-230 V
0-0 V
Screw connection
24-690 V
24-690 V
AC
7 A
3 kW
7.4 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306678 Eaton DILM12-10(230V50/60HZ) Electrical contactor 3 makers 5.5 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2306678 Eaton DILM12-10(230V50/60HZ) Electrical contactor 3 makers 5.5 kW 1 pc(s)
