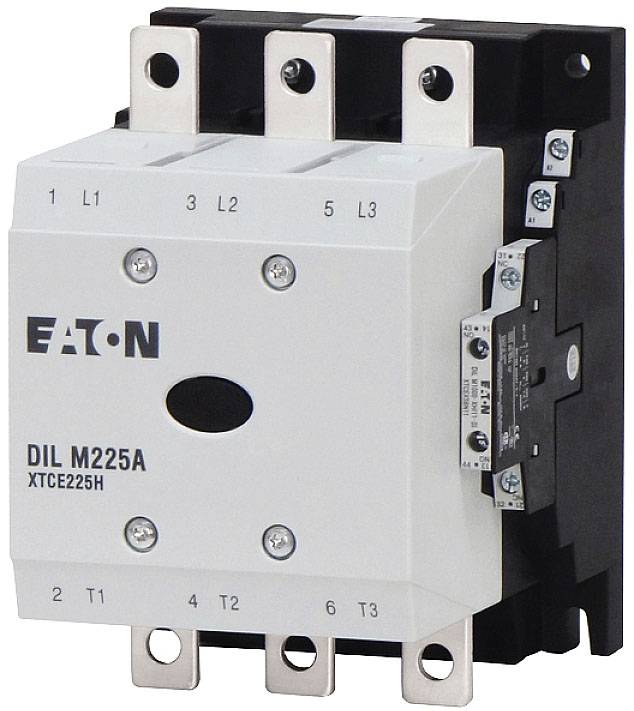

Eaton DILM225A/22(RAC240) Electrical contactor 3 makers 110 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
110 kW
Connection
Terminal strip
Type
DILM225A/22(RAC240)
Datasheet (PDF)
Number
Total (€ 1,147.06 / piece)
€ 1,147.06
plus VAT.
14-day return policy included
Technical specifications
- Current type: AC actuation
- Voltage type for operation: AC
- rated operating power IE at AC-4, 400 V: 90 kW
- rated operating current IE at AC-1, 400 V: 356 A
- rated operating current IE at AC-3, 400 V: 225 A
- rated operating current IE at AC-4, 400 V: 164 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM225A/22(RAC240)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
2 breakers
2 makers
- Control voltage (min.)
190 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
190 - 240 V AC
110 kW
- Connection
Terminal strip
- Content
1 pc(s)
- RoHS-compliant
Yes
140 mm
190 mm
158 mm
FALSE
110 kW
3
0
2
2
225 A
190-240 V
190-240 V
0-0 V
Rail connection
190-240 V
190-240 V
AC
164 A
90 kW
111 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306693 Eaton DILM225A/22(RAC240) Electrical contactor 3 makers 110 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2306693 Eaton DILM225A/22(RAC240) Electrical contactor 3 makers 110 kW 1 pc(s)
