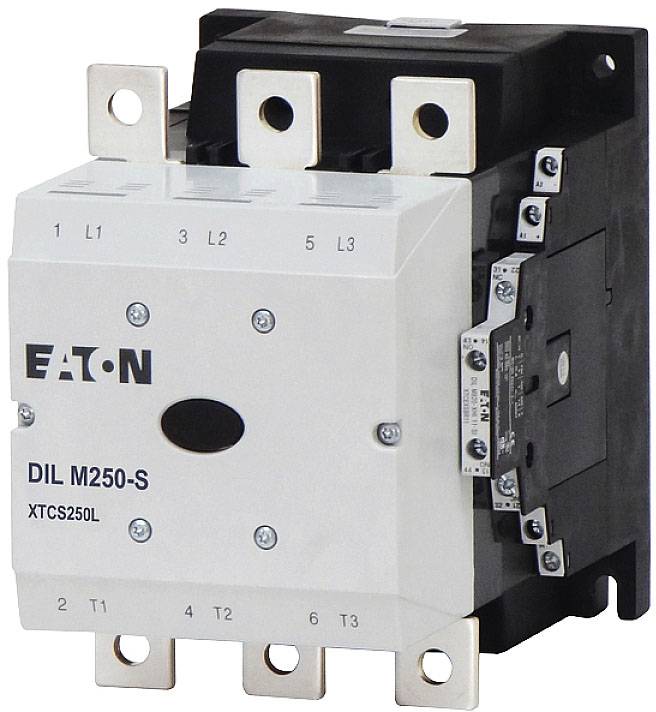

Eaton DILM250-S/22(220-240V50/60HZ) Electrical contactor 3 makers 132 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
132 kW
Connection
Screws
Type
DILM250-S/22(220-240V50/60HZ)
Datasheet (PDF)
Number
Total (€ 1,503.36 / piece)
€ 1,503.36
plus VAT.
14-day return policy included
Technical specifications
- Current type: Alternating current actuation
- Voltage type for activation: AC
- rated operating power IE at AC-4, 400 V: 110 kW
- rated operating current IE at AC-1, 400 V: 429 A
- rated operating current IE at AC-3, 400 V: 250 A
- rated operating current IE at AC-4, 400 V: 200 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM250-S/22(220-240V50/60HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
2 breakers
2 makers
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
132 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
140 mm
189 mm
208 mm
FALSE
132 kW
3
0
2
2
250 A
220-240 V
220-240 V
0-0 V
Screw connection
220-240 V
220-240 V
AC
200 A
110 kW
149 kW
- UKCA
yes
