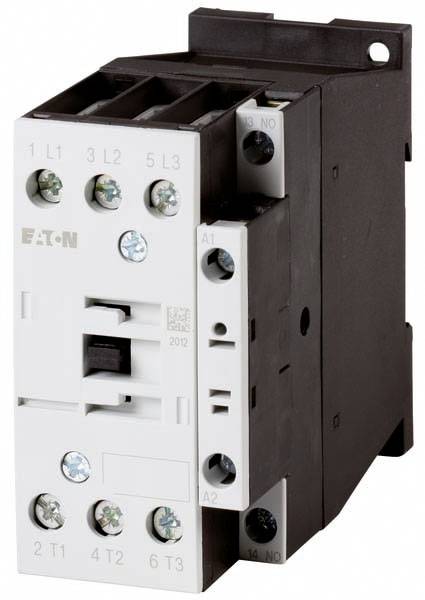

Eaton DILM32-10(24V50HZ) Electrical contactor 3 makers 15 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
15 kW
Connection
Screws
Type
DILM32-10(24V50HZ)
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Current type: Alternating current actuation
- Voltage type for activation: AC
- rated operating power IE at AC-4, 400 V: 7 kW
- rated operating current IE at AC-1, 400 V: 45 A
- rated operating current IE at AC-3, 400 V: 32 A
- rated operating current IE at AC-4, 400 V: 15 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM32-10(24V50HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
15 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
45 mm
85 mm
97 mm
FALSE
15 kW
3
0
1
0
32 A
45 A
24-24 V
0-0 V
0-0 V
Screw connection
24-690 V
24-690 V
AC
15 A
7 kW
14.9 kW
- UKCA
yes
