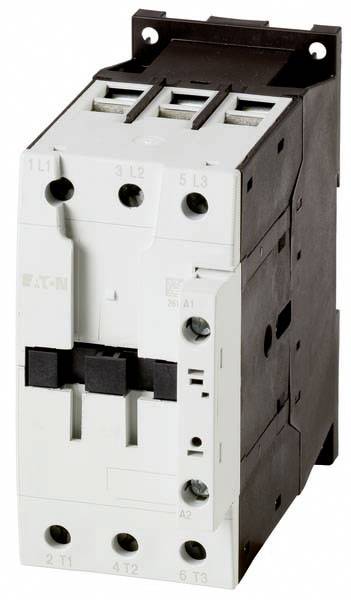

Eaton DILM40(230V50/60HZ) Electrical contactor 3 makers 18.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
18.5 kW
Connection
Screws
Type
DILM40(230V50/60HZ)
Datasheet (PDF)
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14-day return policy included
Technical specifications
- Current type: Alternating current actuation
- Voltage type for activation: AC
- rated operating power IE at AC-4, 400 V: 9 kW
- rated operating current IE at AC-1, 400 V: 60 A
- rated operating current IE at AC-3, 400 V: 40 A
- rated operating current IE at AC-4, 400 V: 18 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM40(230V50/60HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
18.5 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
55 mm
115 mm
132.1 mm
FALSE
18.5 kW
3
0
0
0
40 A
60 A
230-230 V
230-230 V
0-0 V
Screw connection
230-690 V
230-690 V
AC
18 A
9 kW
22 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306706 Eaton DILM40(230V50/60HZ) Electrical contactor 3 makers 18.5 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2306706 Eaton DILM40(230V50/60HZ) Electrical contactor 3 makers 18.5 kW 1 pc(s)
