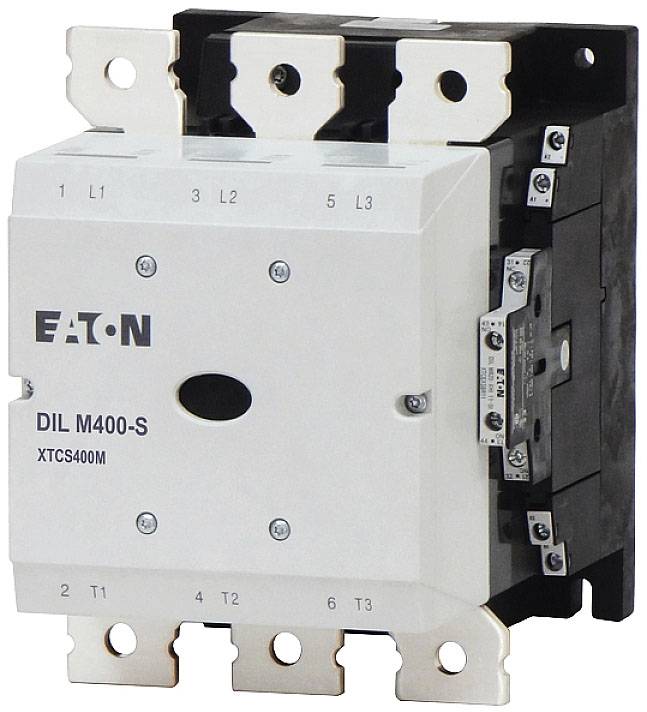

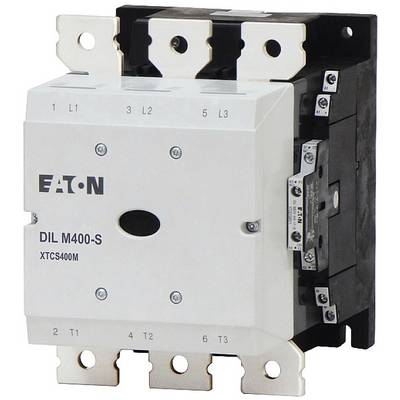

Eaton DILM400-S/22(220-240V50/60HZ) Electrical contactor 3 makers 200 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
200 kW
Connection
Terminal strip
Type
DILM400-S/22(220-240V50/60HZ)
Datasheet (PDF)
Number
Total (€ 2,419.33 / piece)
€ 2,419.33
plus VAT.
Technical specifications
- Current type: AC actuation
- Voltage type for operation: AC
- rated operating power IE at AC-4, 400 V: 160 kW
- rated operating current IE at AC-1, 400 V: 612 A
- rated operating current IE at AC-3, 400 V: 400 A
- rated operating current IE at AC-4, 400 V: 296 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILM400-S/22(220-240V50/60HZ)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
2 breakers
2 makers
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
200 kW
- Connection
Terminal strip
- Content
1 pc(s)
- RoHS-compliant
Yes
160 mm
209 mm
216 mm
FALSE
200 kW
3
0
2
2
400 A
220-240 V
220-240 V
0-0 V
Rail connection
220-240 V
220-240 V
AC
296 A
160 kW
223 kW
- UKCA
yes
