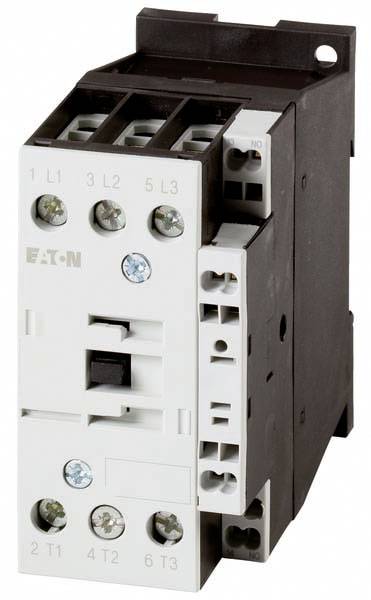

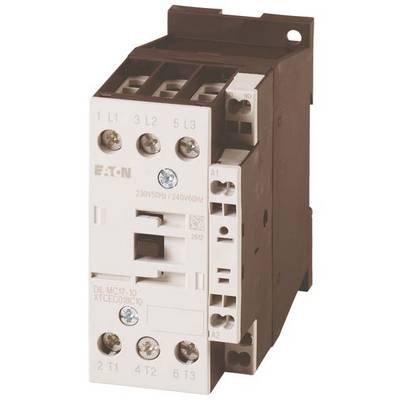

Eaton DILMC17-10(RDC24) Electrical contactor 3 makers 7.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
7.5 kW
Connection
Screws
Type
DILMC17-10(RDC24)
Datasheet (PDF)
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Technical specifications
- Current type: DC actuation
- Voltage type for operation: DC
- rated operating power IE at AC-4, 400 V: 4.5 kW
- rated operating current IE at AC-1, 400 V: 40 A
- rated operating current IE at AC-3, 400 V: 18 A
- rated operating current IE at AC-4, 400 V: 10 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILMC17-10(RDC24)
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
24 V DC
- Control voltage (max.)
27 V DC
- Control voltage range
24 - 27 V DC
7.5 kW
- Connection
Screws
- Dim
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2306743 Eaton DILMC17-10(RDC24) Electrical contactor 3 makers 7.5 kW 1 pc(s)
