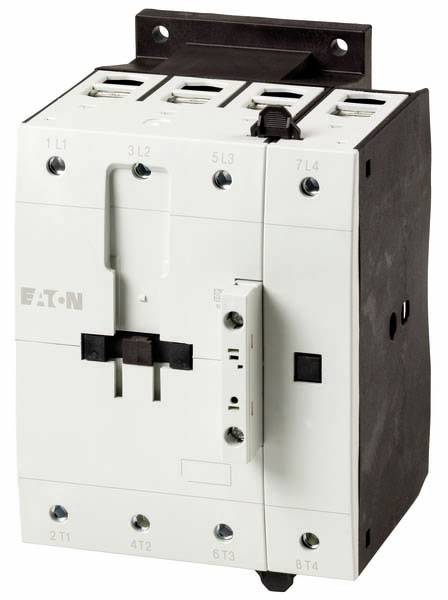

Eaton DILMP125(RAC240) Electrical contactor 4 makers 37 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
4-pin
Power
37 kW
Connection
Screws
Type
DILMP125(RAC240)
Datasheet (PDF)
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Current type: AC actuation
- Voltage type for operation: AC
- rated operating power IE at AC-4, 400 V: 28 kW
- rated operating current IE at AC-1, 400 V: 125 A
- rated operating current IE at AC-3, 400 V: 80 A
- rated operating current IE at AC-4, 400 V: 115 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILMP125(RAC240)
- No. of pins
4-pin
- Contact type
4 makers
- Control voltage (min.)
190 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
190 - 240 V AC
37 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
122 mm
170 mm
160 mm
FALSE
37 kW
4
0
0
0
80 A
125 A
190-240 V
190-240 V
0-0 V
Screw connection
230-690 V
230-690 V
AC
115 A
28 kW
44.7 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306753 Eaton DILMP125(RAC240) Electrical contactor 4 makers 37 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2306753 Eaton DILMP125(RAC240) Electrical contactor 4 makers 37 kW 1 pc(s)
