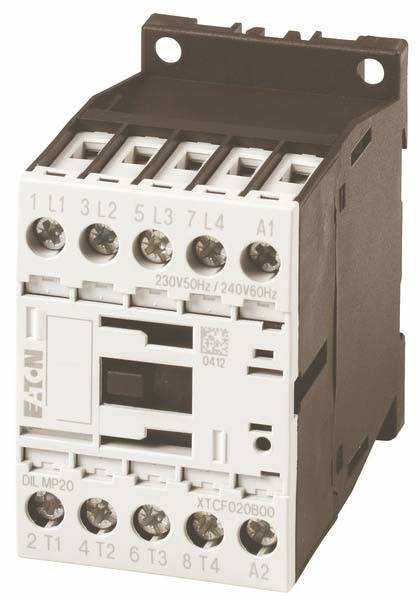

Image similar
Image similar
Eaton DILMP20(24VDC) Electrical contactor 4 makers 5.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
4-pin
Power
5.5 kW
Connection
Screws
Type
DILMP20(24VDC)
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Current type: DC actuation
- Voltage type for operation: DC
- rated operating power IE at AC-4, 400 V: 4.5 kW
- rated operating current IE at AC-1, 400 V: 22 A
- rated operating current IE at AC-3, 400 V: 12 A
- rated operating current IE at AC-4, 400 V: 10 A
- suitable for series installation: no.
- Product type
Electrical contactor
- Type
DILMP20(24VDC)
- No. of pins
4-pin
- Contact type
4 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
5.5 kW
- Connection
Screws
- Content
1 pc(s)
- RoHS-compliant
Yes
45 mm
68 mm
75 mm
FALSE
5.5 kW
4
0
0
0
12 A
22 A
0-0 V
0-0 V
24-24 V
Screw connection
24-690 V
24-690 V
DC
10 A
4.5 kW
0 kW
- UKCA
yes
