Buy Eaton DILMP45-10(RDC24) Electrical contactor 1 breaker 45 A 1 pc(s)

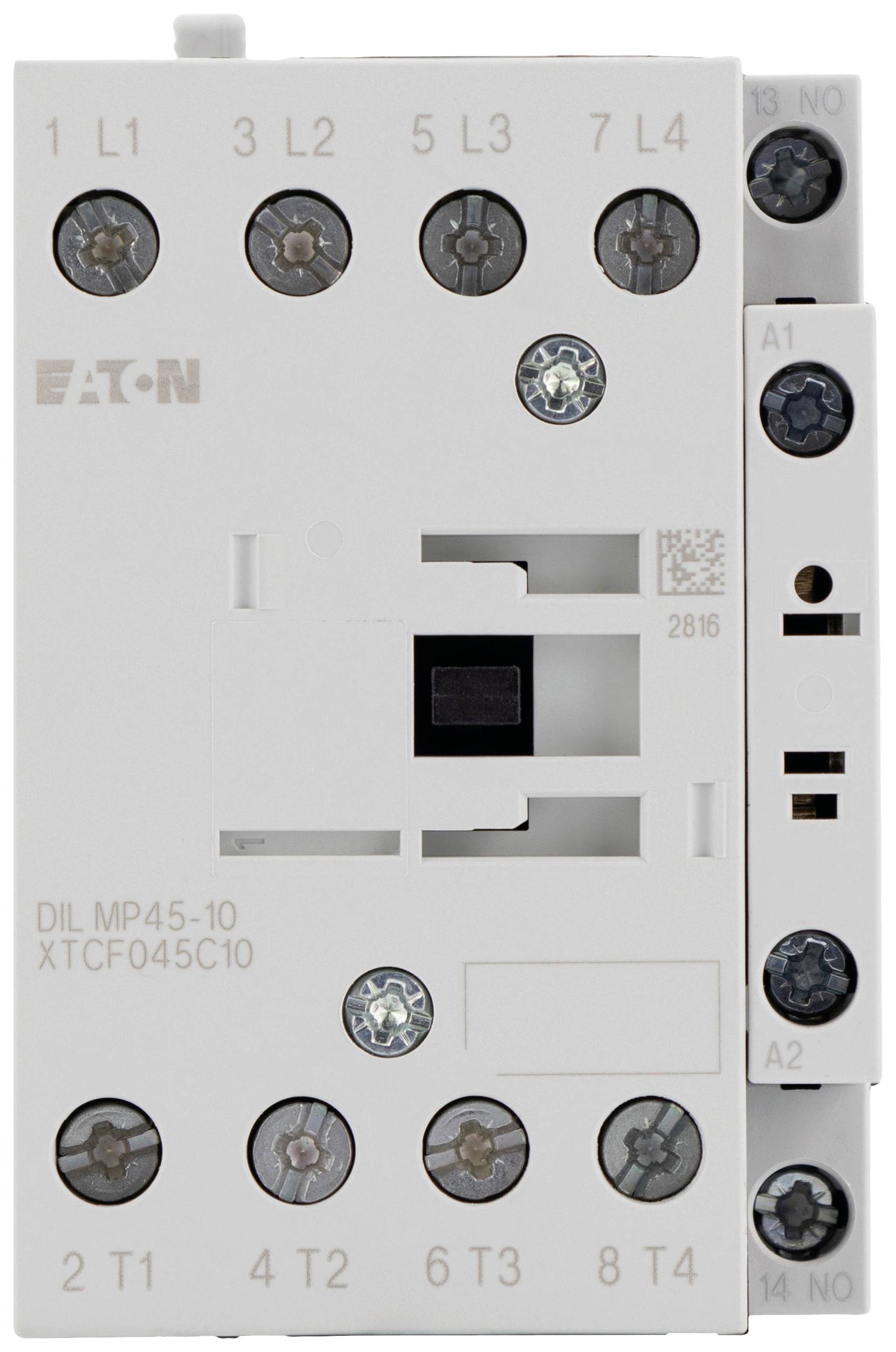

'A white electric contactor by Eaton, model DIL MP45-10. The terminals are marked with L1, L2, L3, T1, T2 and T3.'

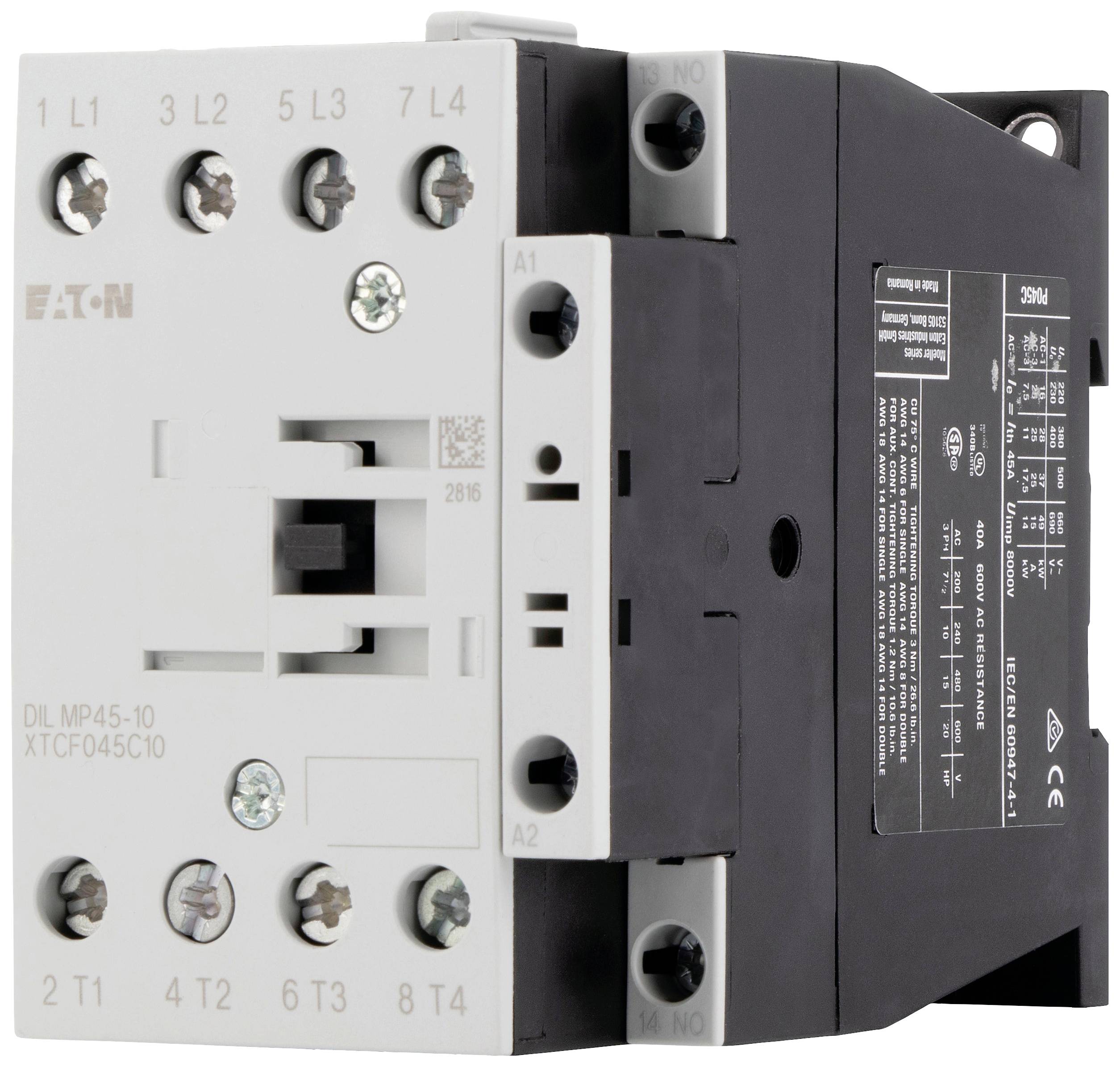

'Eaton Industrial Contactor DIL MP45-10' with connections and technical specifications on the page. Suitable for industrial electrical applications.

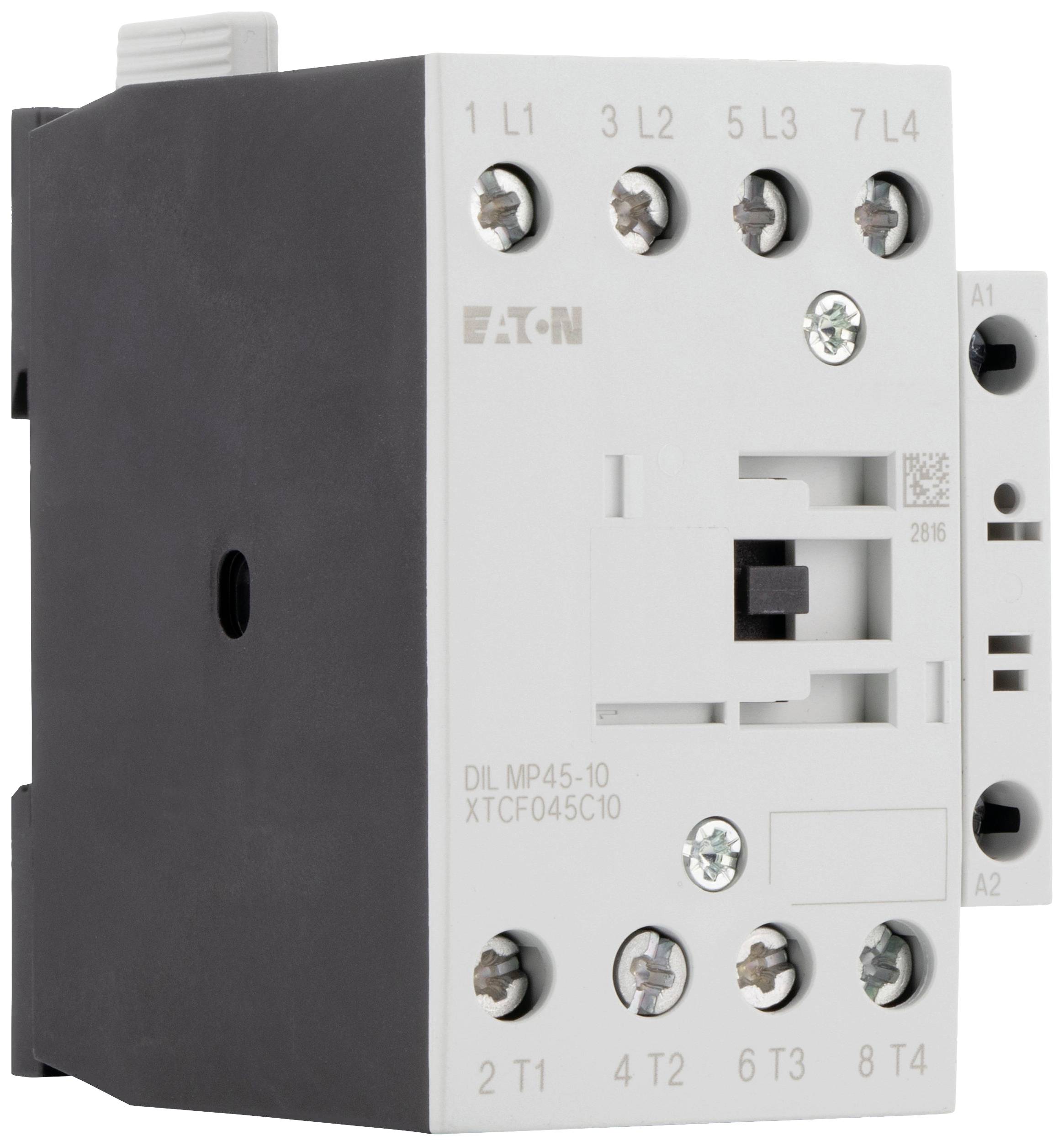

Eaton electric contactor, Model DIL MP45-10. Used to control and protect electrical circuits.

1/3

Product type

Electrical contactor

No. of pins

4-pin

Current load

45 A

Connection

Screws

Type

DILMP45-10(RDC24)

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 197.47 / piece)

€ 197.47

plus VAT.

14 days return policy included

Report legal concerns

Technical specifications

Product type: Electrical contactor

Type: DILMP45-10(RDC24)

No. of pins: 4-pin

Contact type: 1 breaker

Auxiliary contact type: 1 breaker

Current load: 45 A

Connection: Screws

Durability: 10000000

: IP00

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 58 mm

Height: 85 mm

Depth: 97 mm

Dim: (W x H x D) 58 x 85 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 58 mm

: 85 mm

: 97 mm

: FALSE

: 11 kW

: 4

: 0

: 1

: 0

: 25 A

: 45 A

: 0-0 V

: 0-0 V

: 24-27 V

: Screw connection

: 24-690 V

: 24-690 V

: DC

: 15 A

: 7 kW

: 11 kW

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3193569 Eaton DILMP45-10(RDC24) Electrical contactor 1 breaker 45 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3193569 Eaton DILMP45-10(RDC24) Electrical contactor 1 breaker 45 A 1 pc(s)

Description

Power contactor, application: Power contactors for 4-pole current consumers, contactors up to 200 A, 4-pole, usage category: AC-1: Non or slightly inductive loads, resistance ovens, NAC-3: Cage rotor motors: Start, switch off during operation.
