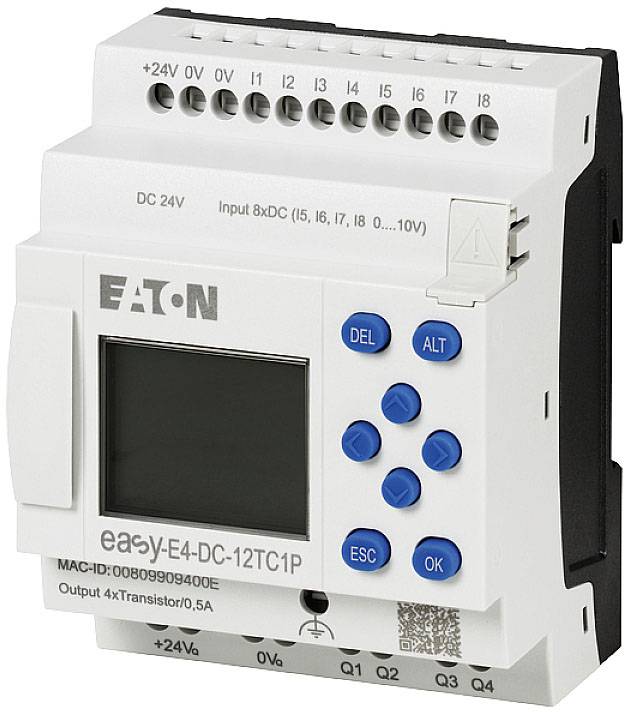

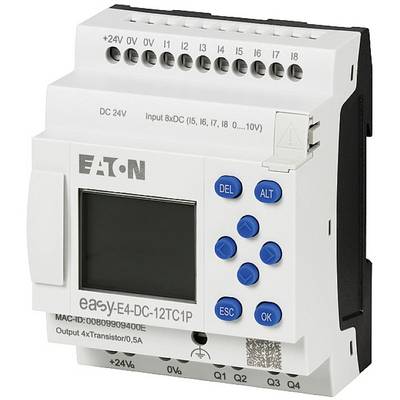

Eaton EASY-E4-DC-12TC1P 197506 Relay
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Technical specifications
- Number of digital outputs: 4
- Number of hardware interfaces Industrial Ethernet: 1
- Number of HW interfaces other: 1
- Expandable: Yes
- Expansion device: No.
- Front installation possible: Yes
- Basic unit: Yes
- With relay output: No.
- Switching current: 0.5 A
- Type
EASY-E4-DC-12TC1P
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- No. of outputs (max.)
4
- Type
Control relay
- Min. operating voltage
20.4 V DC
- Operating voltage
20.4 - 28.8 V DC
- Max. operating voltage
28.8 V DC
- Height
90 mm
- Length
58 mm
- Width
71.5 mm
IP20
- Dim
(L x W x H) 58 x 71.5 x 90 mm
- Display
Yes
- Manufacturer part #
197506
- Fitting type (details)
Mounting rail;Wall/direct mounting
- Real-time clock
Yes
- Factory colour
Multicolour
- UKCA
yes
- Product type
Relay
Documents & Downloads
Datasheet
Datasheet 2306778 Eaton EASY-E4-DC-12TC1P 197506 Relay
User & Safety Instructions
User & Safety Instructions 2306778 Eaton EASY-E4-DC-12TC1P 197506 Relay
