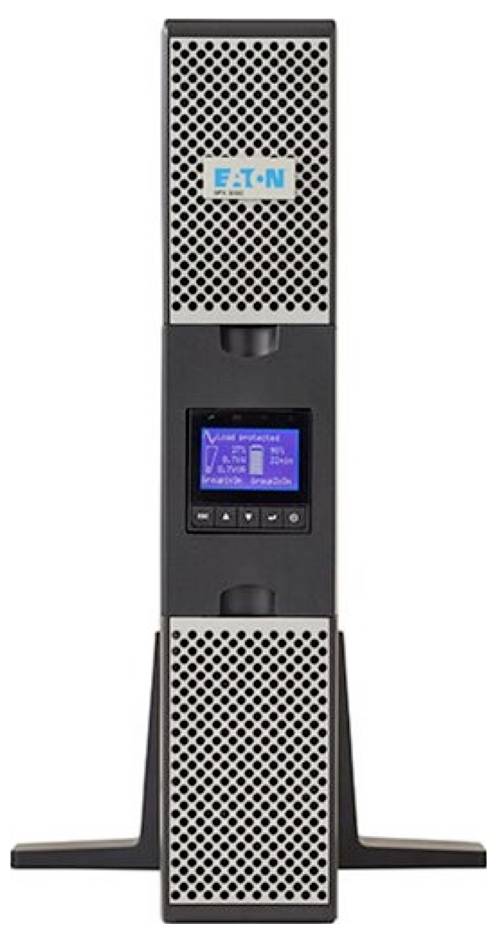

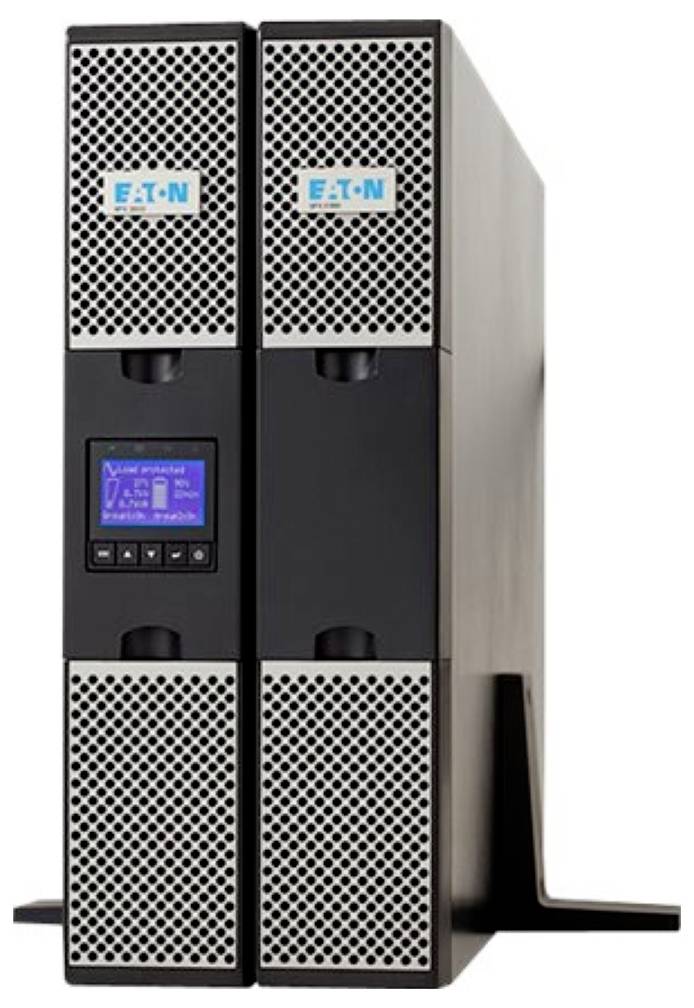

Eaton EATON 9PX 1500 RT 120V UPS 1500 VA
EAN:
Part number:
Item no:
Highlights & Details
Eaton 9PX 1500RT uninterruptible power supply (UPS) dual converter (Online) 1.5 kVA 1350 W 8 AC outputs
- Offers an output of 1350 watts with a capacity of 1500 VA
- With maintenance-free, sealed lead-acid battery
- Conforms to the ENERGY STAR and other environmental standards

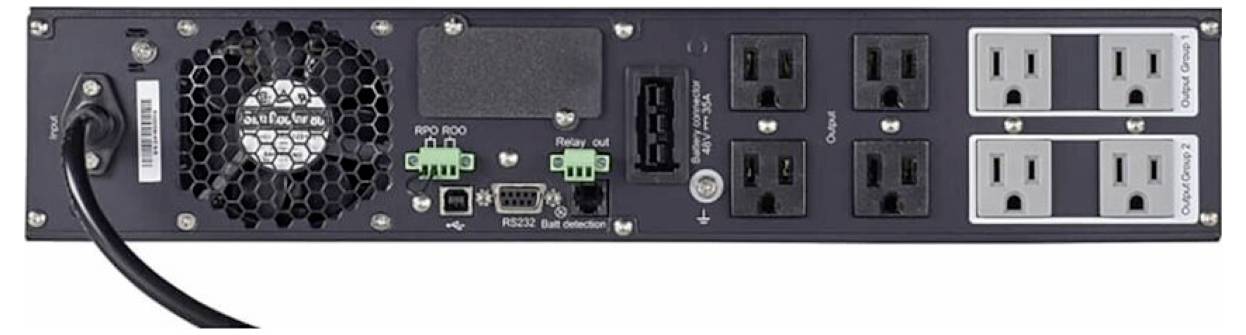

- Includes 8 output ports for versatile connectivity options

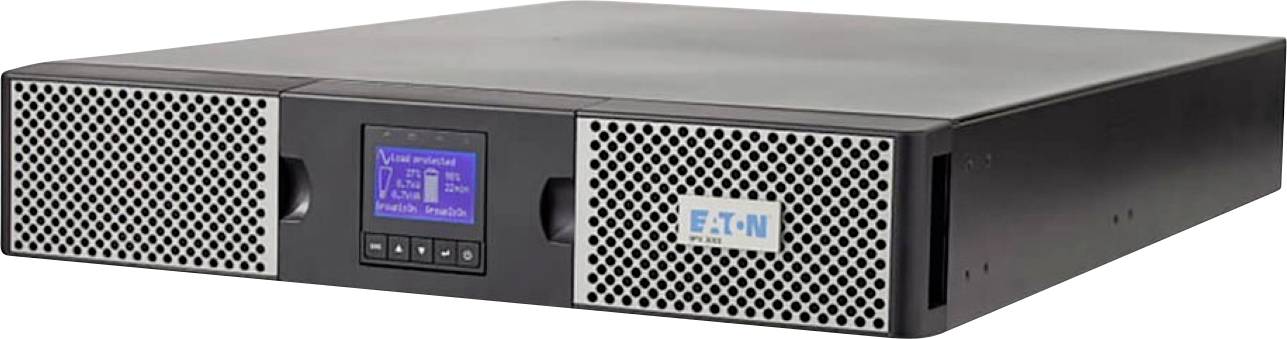

- Integrated design, suitable for rack mounting
Technical specifications
- Number of AC outputs: 8 AC outputs
- Rechargeable battery technology: Lead-acid (VRLA)
- Form factor: Rackmount/tower
- Rack capacity 2U
- Product type
UPS
- Nominal power
1500 VA
- No. of outputs
8 x
- Output
USB
- Features
USB port
- Bridging time, max load
5 min
- Type
EATON 9PX 1500 RT 120V
- Width
440 mm
- Height
86.5 mm
- Depth
450 mm
- Weight
19.3 kg
- Cable length
2.44 m
- Factory colour
Black
- No. of USB A 2.0 ports
1 x
- Max. operating noise
40 dB
1350 W
- Response time
0 ms
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Auto-restart
yes
- Storage relative humidity (H-H)
0 - 96 %
- Serial interface
yes
- Output power capacity
1.5 kVA
- Rack mount kit
yes
- Bracket
yes
- USB port
yes
- Hot-swap battery
yes
- Management card included
no
- RS-232 ports
1
- Web-based management
yes
- Manual
yes
- Efficiency
90 %
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
0 - 96 %
- Input current Total Harmonic Distortion (THD)
3 %
- Output voltage Total Harmonic Distortion (THD)
3 %
- Storage temperature (T-T)
0 - 35 °C
- Surge protection
yes
- Cold start
yes
- Automatic battery test
yes
- Input operation voltage (max)
125 V
- Input operation voltage (min)
100 V
- Output operation voltage (min)
100 V
- Output operation voltage (max)
125 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740281 Eaton EATON 9PX 1500 RT 120V UPS 1500 VA
Description

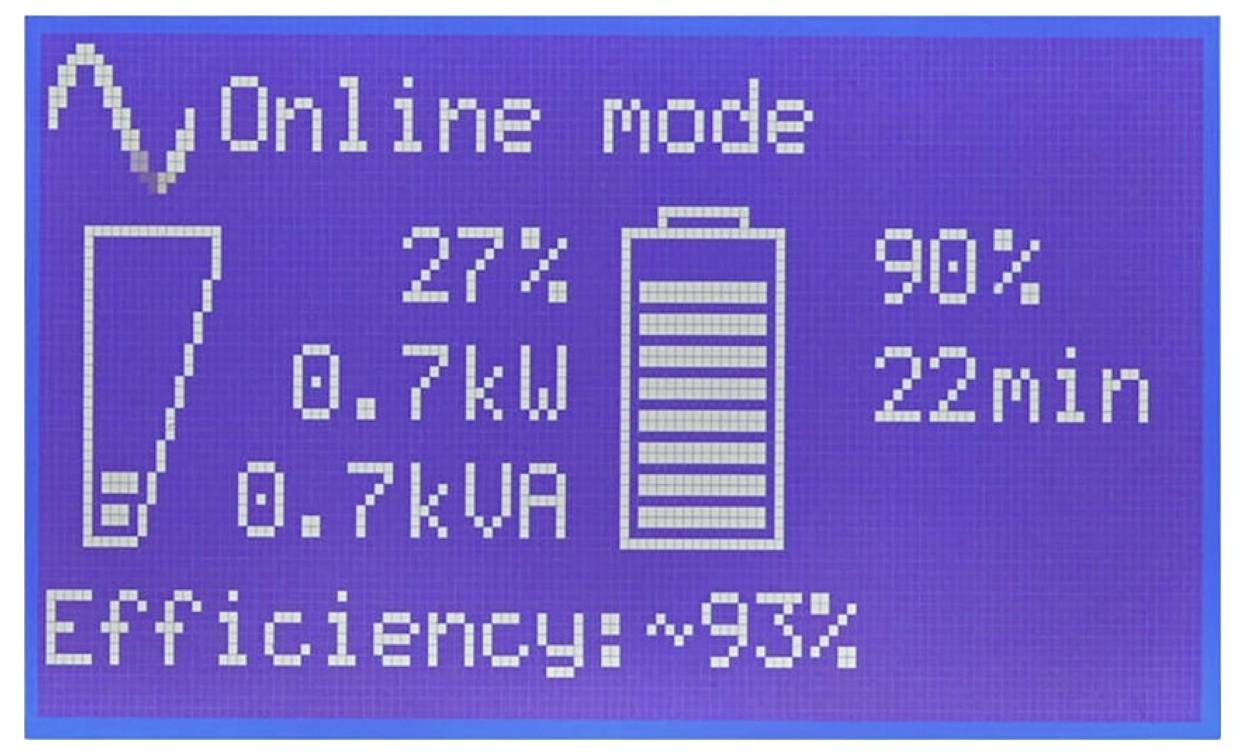

The Eaton 9PX 1500VA 1350W 120V online double-conversion UPS was developed in order to ensure a reliable current protection for sensitive electronic devices. With an efficiency of 90% and the support of a wide range of input voltages, this UPS offers performance in demanding environments. The maintenance-free, sealed lead-acid battery provides a running time of up to 5 minutes at full load and provides the necessary energy in the event of power failures with minimal maintenance. With its integrated design, the UPS is suitable for rack mounting and has various connection options, such as USB and serial cables for remote administration. It meets several environmental standards, including ENERGY STAR certification, making it an environmentally friendly choice. With an LCD-display, automatic self-test and advanced battery management functions the Eaton 9PX provides for a smooth operation and reliable performance in protecting critical devices.
