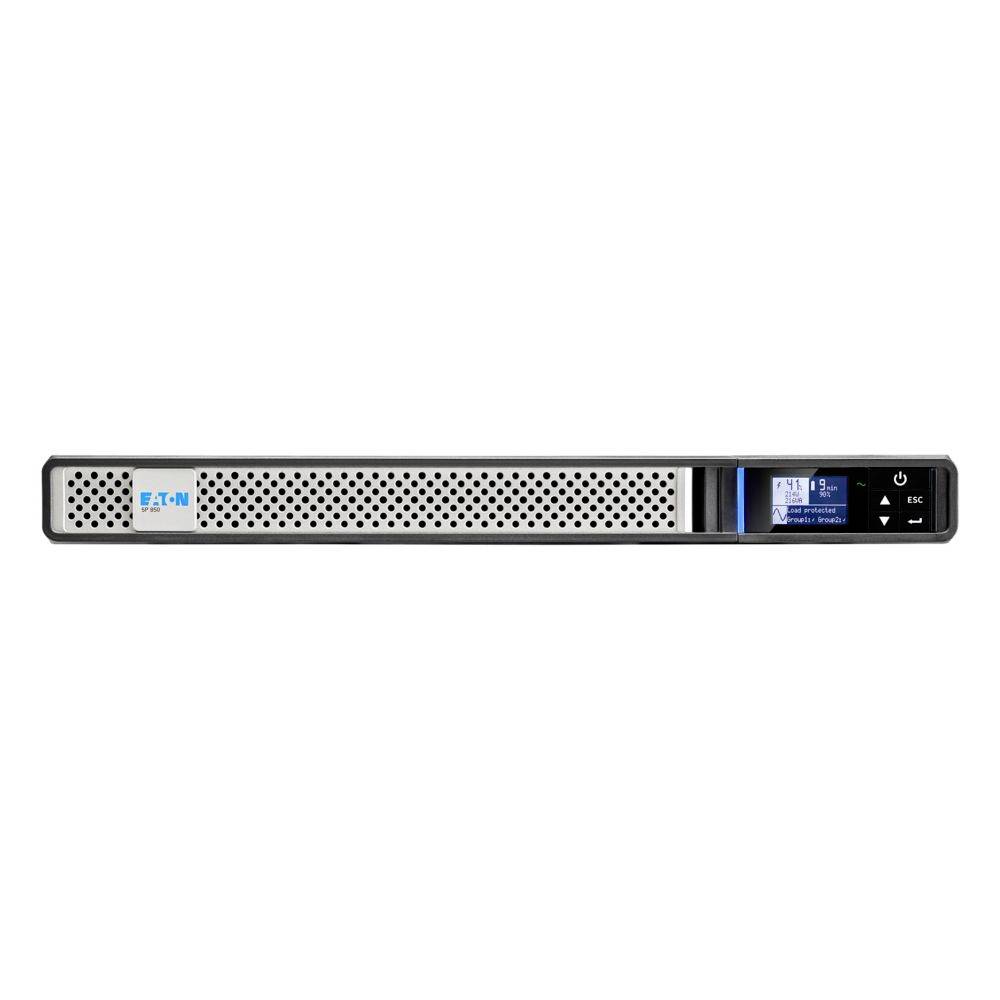

Front view of a rack-mounted Eaton power device with perforated silver grille, small blue display, and control buttons on the right.

Front view of a rack-mounted Eaton power device with perforated silver grille, small blue display, and control buttons on the right.

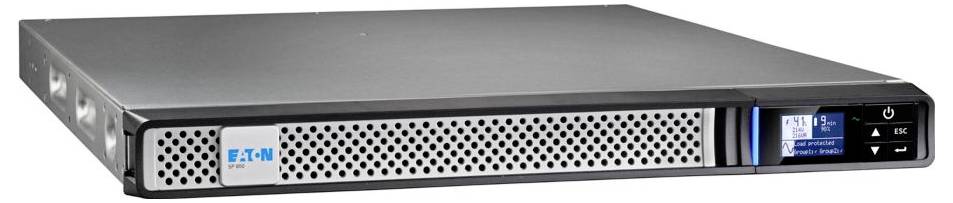

Front view of a rack-mounted Eaton server unit with a perforated silver faceplate, blue status light, and small display on the right.

Rear view of a rack device with three power inputs, cooling fan, status light, USB port, a covered module bay, and AC power inlet.

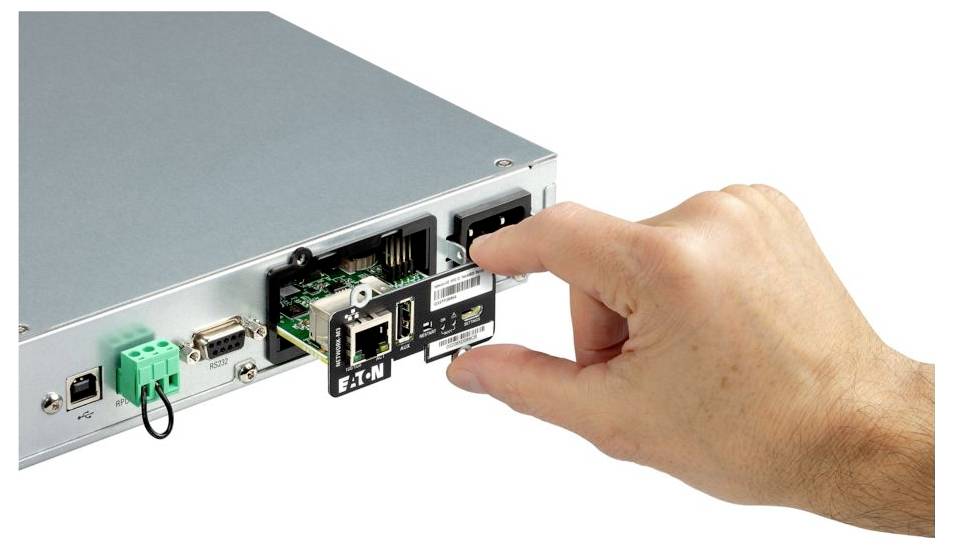

Hand inserting an Eaton networking module into the rear port of a silver server or industrial device.<br>

1/4

Eaton

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton 5P850IRNG2 uninterruptible power supply (UPS) line-interactive 0.85 kVA 680 W 4 AC outputs

Highlights & Details

Line interactive
0.85 kVA 680 W
Waveform: Sinusoidal
4 AC outputs
Lead acid seal (VRLA) 6 V 7 Ah
Rack mount black, silver
This text is machine translated.

Technical specifications

Number of AC outputs: 4 AC outputs
Rechargeable battery technology: Lead-acid (VRLA)
Form factor: Rackmount
Product color: Black, silver

Product type: UPS

Type: EATON UPS 5P 850VA G2 Rack 1U 1p NetPack

Width: 438 mm

Height: 43.2 mm

Depth: 509 mm

Weight: 13.8 kg

Battery capacity: 7 Ah

Battery voltage: 6 V

Max. operating noise: 35 dB

: 680 W

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Automatic Voltage Regulation (AVR): yes

Serial ports quantity: 1

Serial interface: yes

Output power capacity: 0.85 kVA

Typical backup time at half load: 13 min

Heat dissipation: 307 BTU/h

Rack mount kit: yes

USB port: yes

Hot-swap battery: yes

RS-232 ports: 1

: yes

: yes

Quick installation guide: yes

Efficiency: 98 %

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 90 %

Power factor: 0.8

Input operation voltage (max): 294 V

Input operation voltage (min): 150 V

Output operation voltage (min): 200 V

Output operation voltage (max): 240 V
