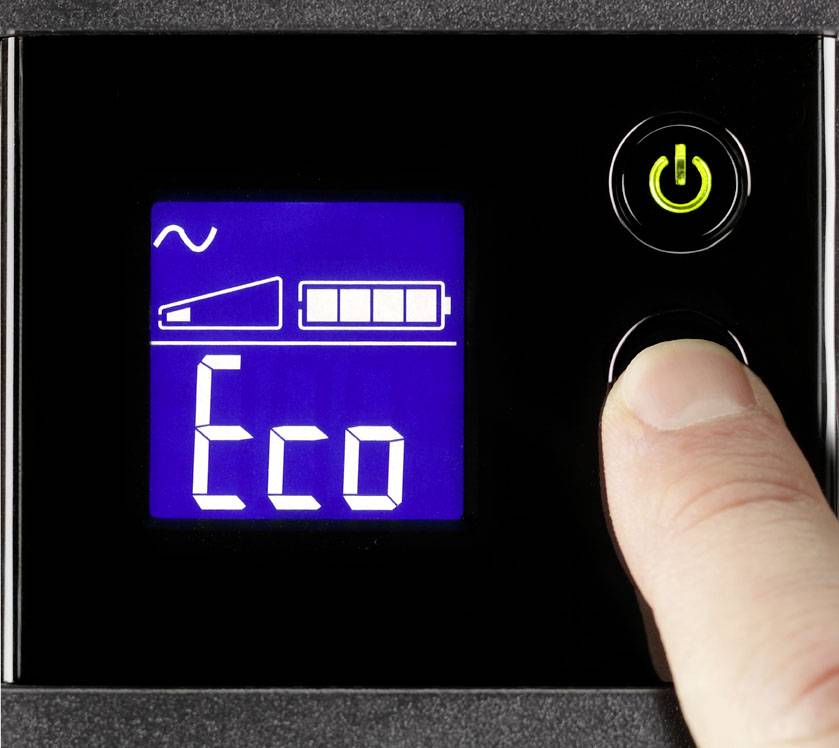

A hand is pressing a button next to a display showing 'Eco' and a battery symbol. This indicates an energy-saving mode.

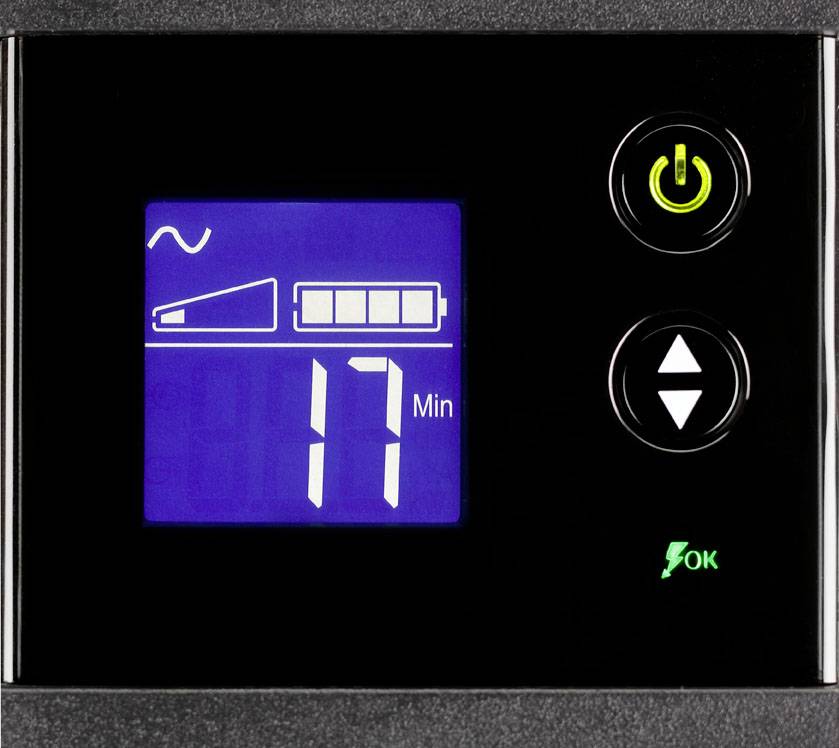

Display of an electrical device shows charging status and remaining time '17 mins', with green functional symbol.

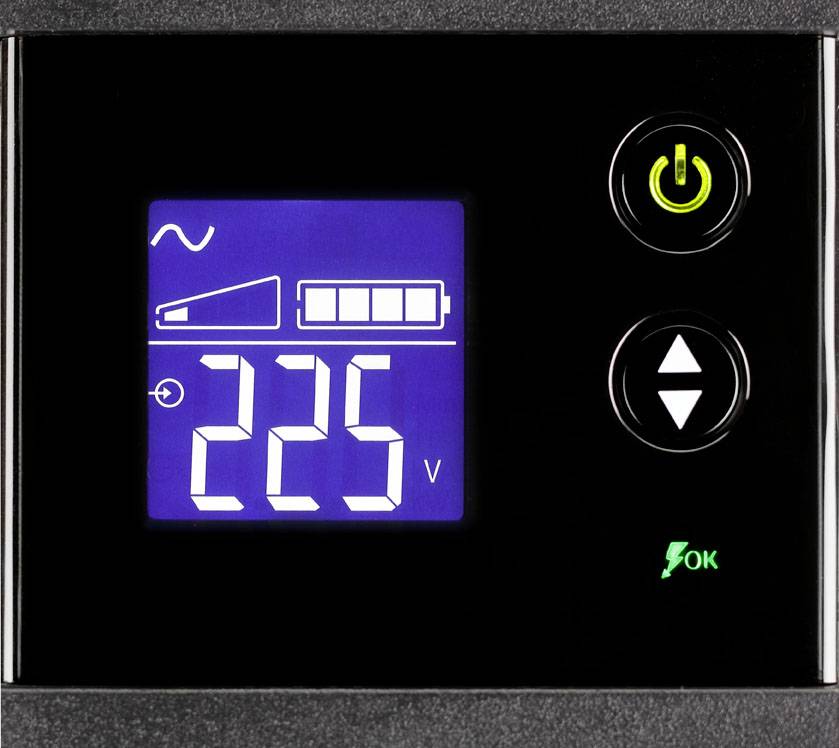

Digital display with a blue screen shows 225V, battery level indicator, and symbols for power, up and down buttons.

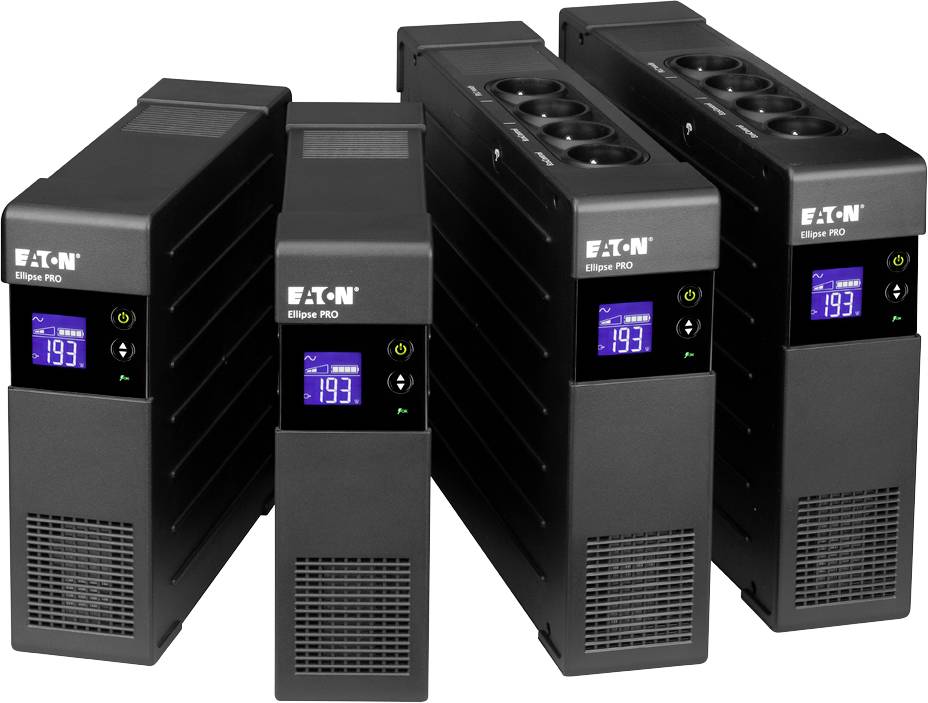

Four uninterruptible power supply devices (UPS) from Eaton lined up, each showing digital displays with the number '19.3'.

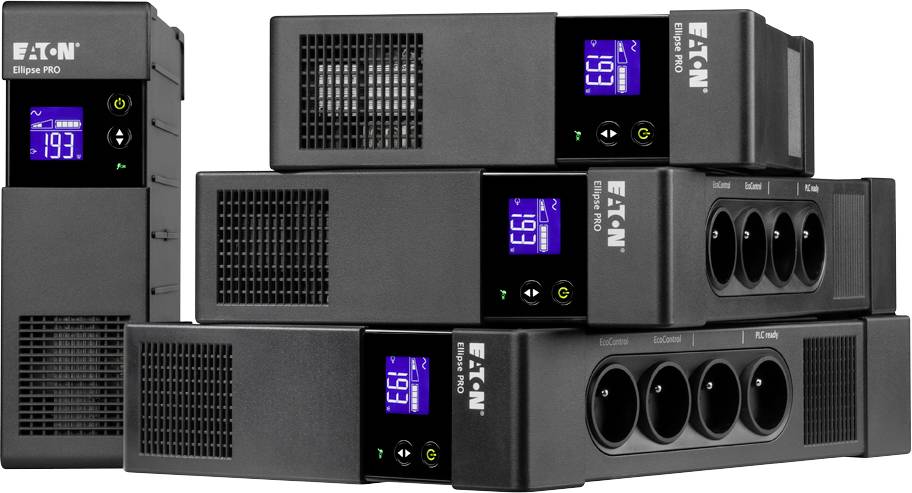

'A stack of Eaton Ellipse PRO UPS units with digital displays showing performance data. Devices in various sizes and configurations.'

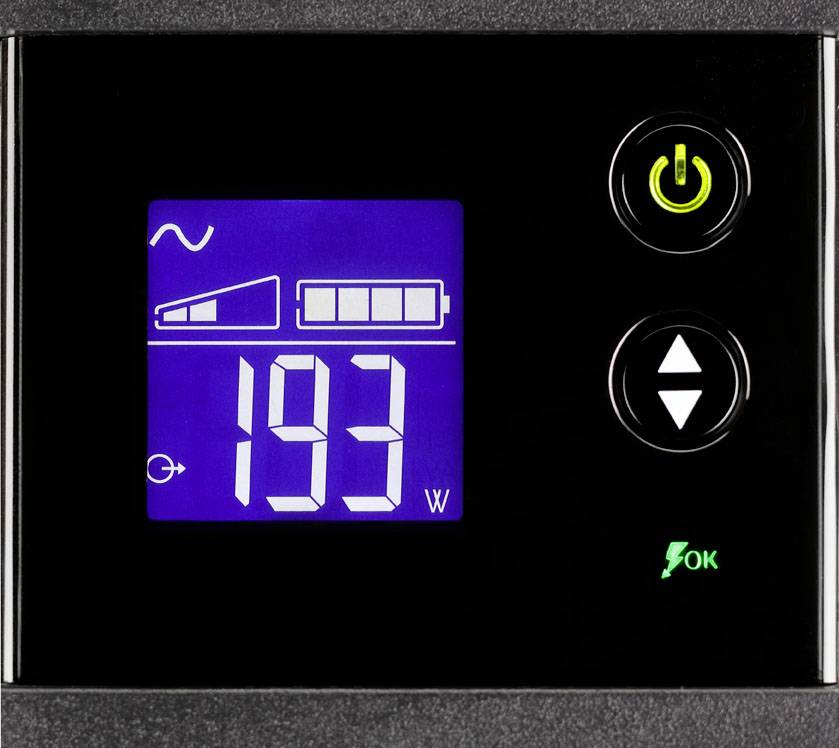

Digital display of a device shows 193 watts. Symbols for power setting and battery status are visible.

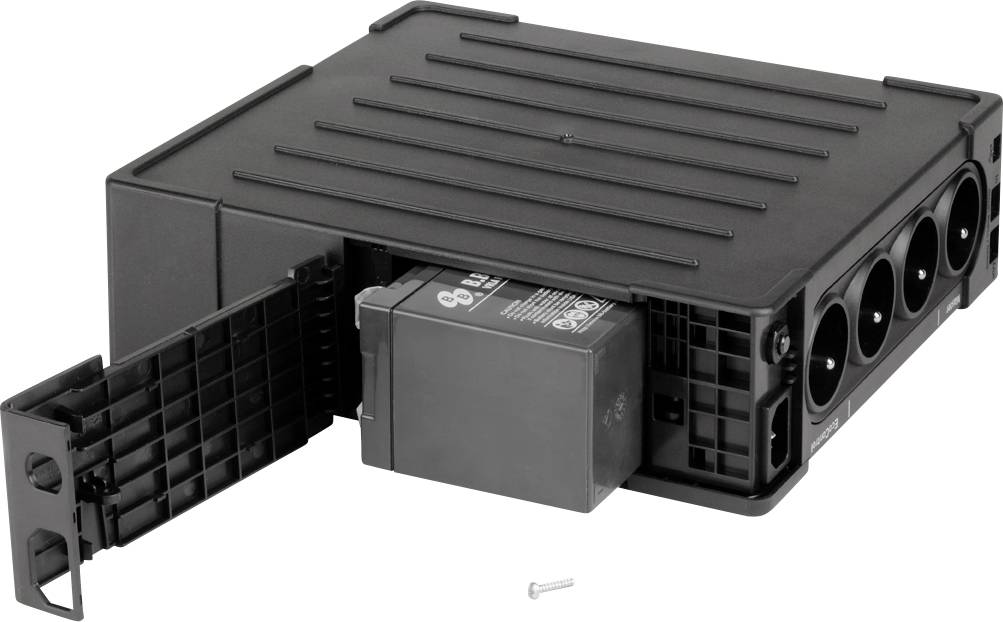

A black technical device with multiple socket connections and a removable battery. One cover is open.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton Ellipse PER 1200 DIN - 1200/750 (VA/Watt) UPS

Highlights & Details

LCD display, Eco-Control (master-slave function)
All systems with DIN-SCHUKO or IEC-IEC output sockets
650-850VA 3x surge protection + battery backup, 1x surge protection only

Technical specifications

Insurance coverage: Unlimited

Product type: UPS system

Nominal power: 1200 VA

No. of outputs: 8 x

with surge protection: 8

of which battery-buffered: 4

Output: IEC C14 plug

Features: Alarm
USB port
LCD

Bridging time normal load: 9 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets
Networks (RJ45)
ISDN (RJ45)

Type: ELP1200DIN

Width: 82 mm

Height: 275 mm

Depth: 390 mm

Weight: 9.9 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362798 Eaton ELP1200DIN UPS system 1200 VA

Description

Eaton ELLIPSE Pro - class VI-SY-313 according to EN 62040-3 - Power failure and surge protection with voltage control - Application area: Power failure & surge protection for PCs, workstations, home entertainment, network components and storage

This text is machine translated.

Features

1200-1600VA 4x surge protection + battery backup, 4x surge protection only
UPS management software on CD-ROM with data cable included
19" rack mount kit available on 2HE and wall mount wallmount kit available as an option.
