Buy Eaton ELP650DIN UPS system 650 VA

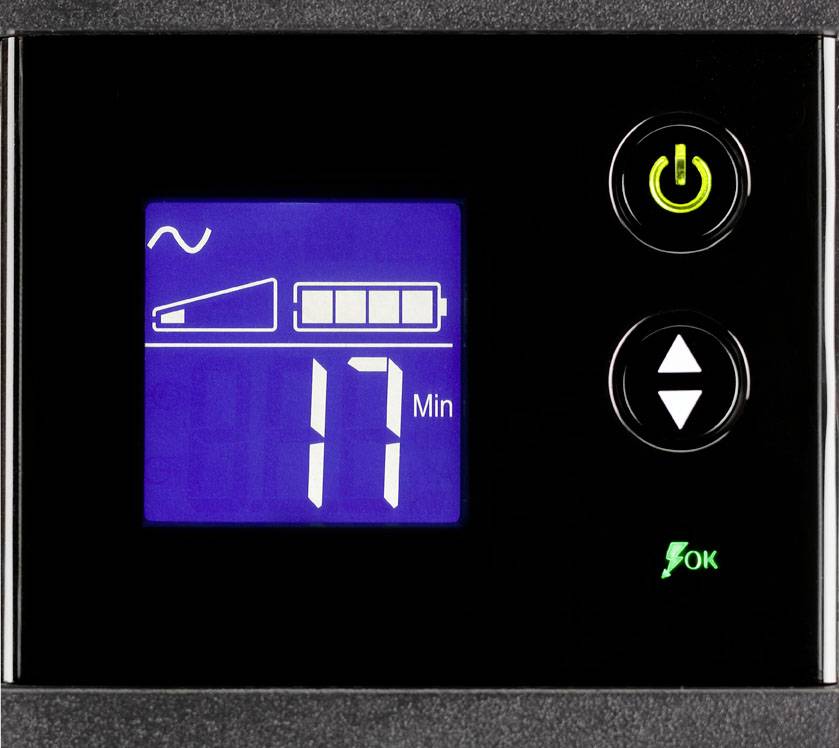

Digital control panel with a blue screen displays '17 Min' for remaining time. Upper button and OK indicator are illuminated green.

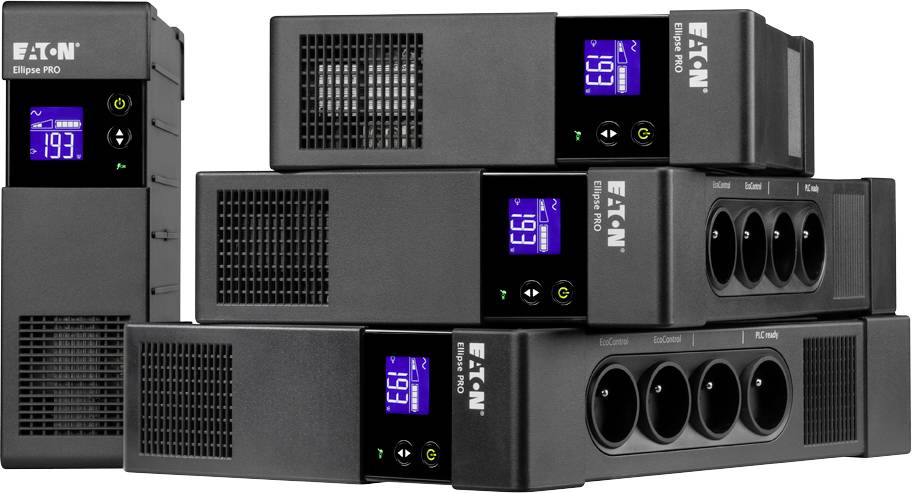

'Illustrated are several EATON uninterruptible power supplies with digital displays showing their operational status. The devices are stacked.'

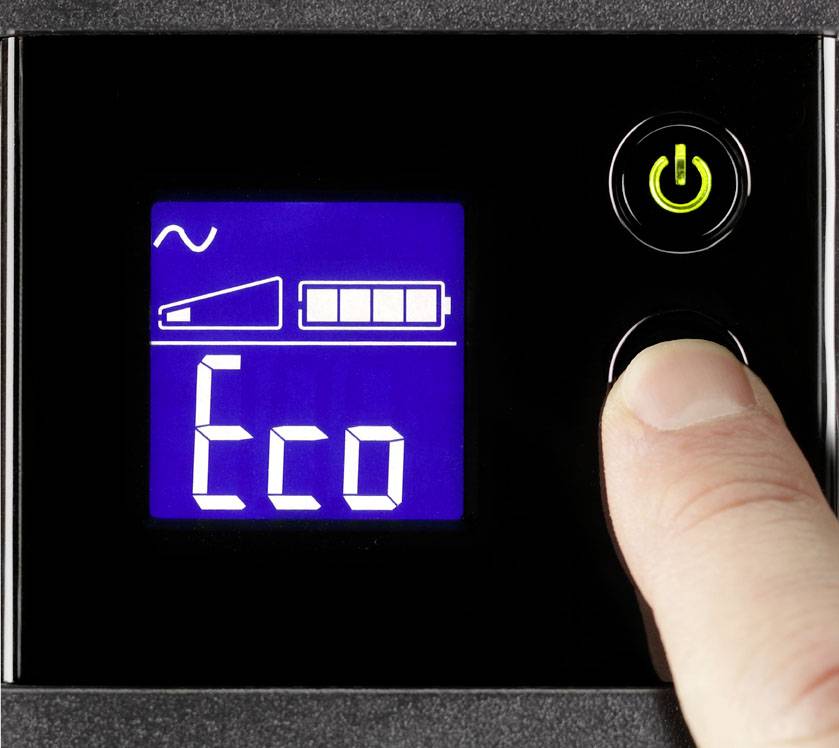

A finger presses the 'Eco' button on an electronic display with a battery symbol and wave line; a green power indicator illuminates.

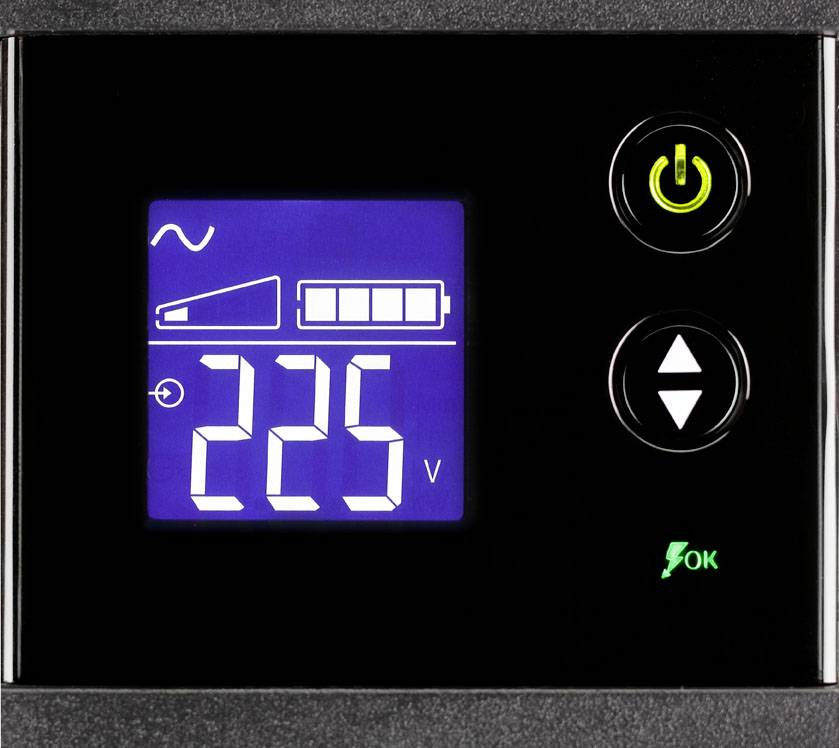

Digital display of a device shows '225 V', with symbols for battery and power switch. Display is illuminated in blue, button in green.

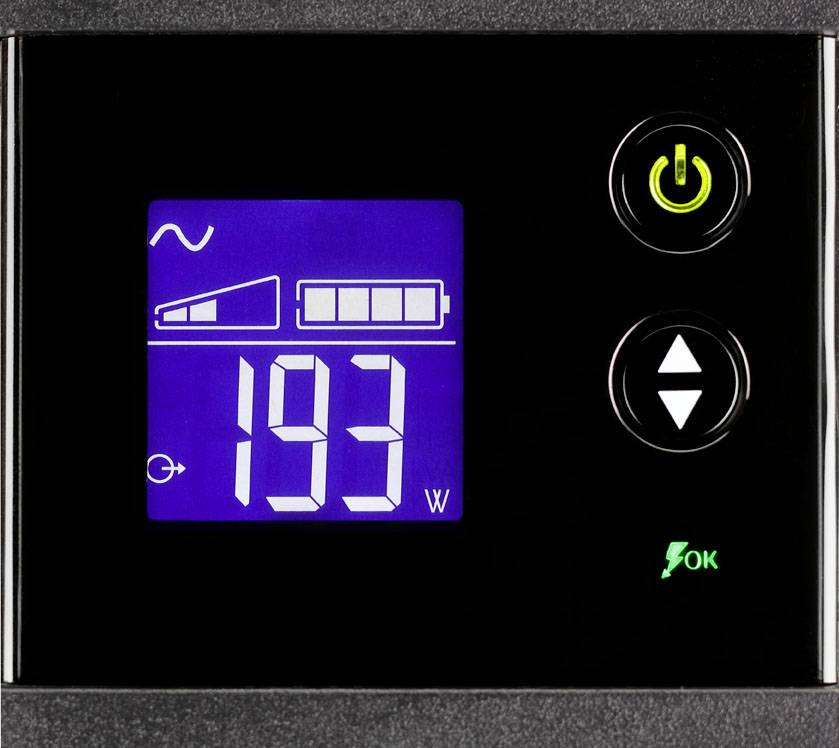

Electronic display with blue backlighting shows '193 W'. Two symbols above. Round buttons on the right with a green 'OK' indicator.

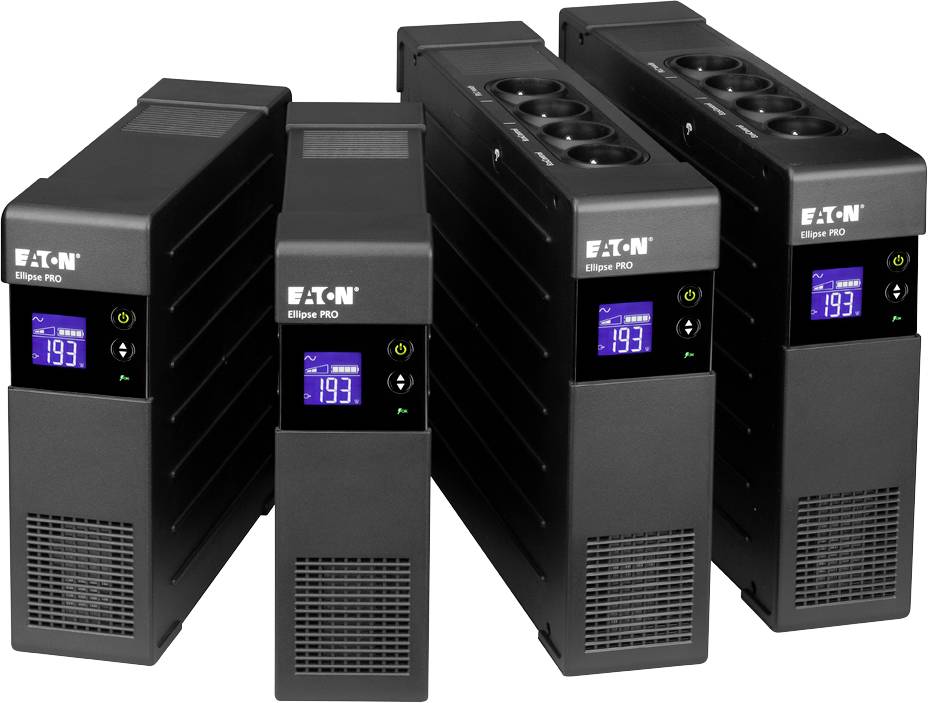

Four black Eaton uninterruptible power supplies, Ellipse PRO model, with digital displays showing '19.3'.

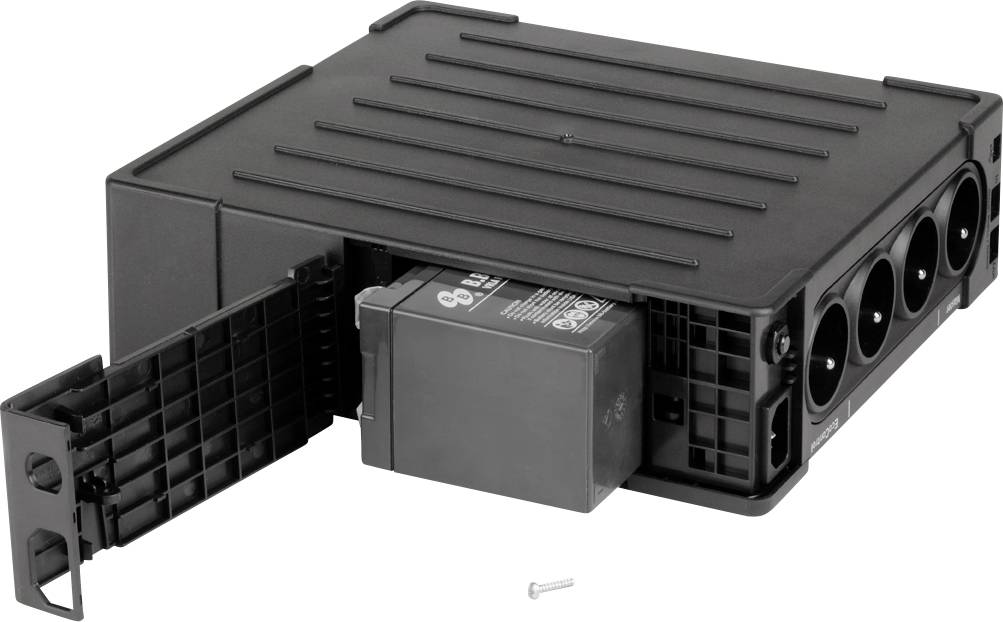

A black, rectangular electrical device with multiple power sockets and a removable battery on its side.

1/7

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton Ellipse PER 650 DIN - 650/400 (VA/Watt) UPS

Highlights & Details

LCD display, Eco-Control (master-slave function)
All systems with DIN-SCHUKO or IEC-IEC output sockets
650-850VA 3x surge protection + battery backup, 1x surge protection only

Technical specifications

Insurance coverage: Unlimited

Product type: UPS system

Nominal power: 650 VA

No. of outputs: 4 x

with surge protection: 4

of which battery-buffered: 3

Output: IEC C14 plug

Features: Alarm
USB port
LCD

Bridging time normal load: 9 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets
Networks (RJ45)
ISDN (RJ45)

Type: ELP650DIN

Width: 82 mm

Height: 260 mm

Depth: 285 mm

Weight: 6.6 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362781 Eaton ELP650DIN UPS system 650 VA

Description

Eaton ELLIPSE Pro - class VI-SY-313 according to EN 62040-3 - Power failure and surge protection with voltage control - Application area: Power failure & surge protection for PCs, workstations, home entertainment, network components and storage

This text is machine translated.

Features

1200-1600VA 4x surge protection + battery backup, 4x surge protection only
UPS management software on CD-ROM with data cable included
19" rack mount kit available on 2HE and wall mount wallmount kit available as an option.
