Buy Eaton ELP850DIN UPS system 850 VA

'A range of Eaton Ellipse Pro UPSs in various sizes and socket configurations with digital displays.'

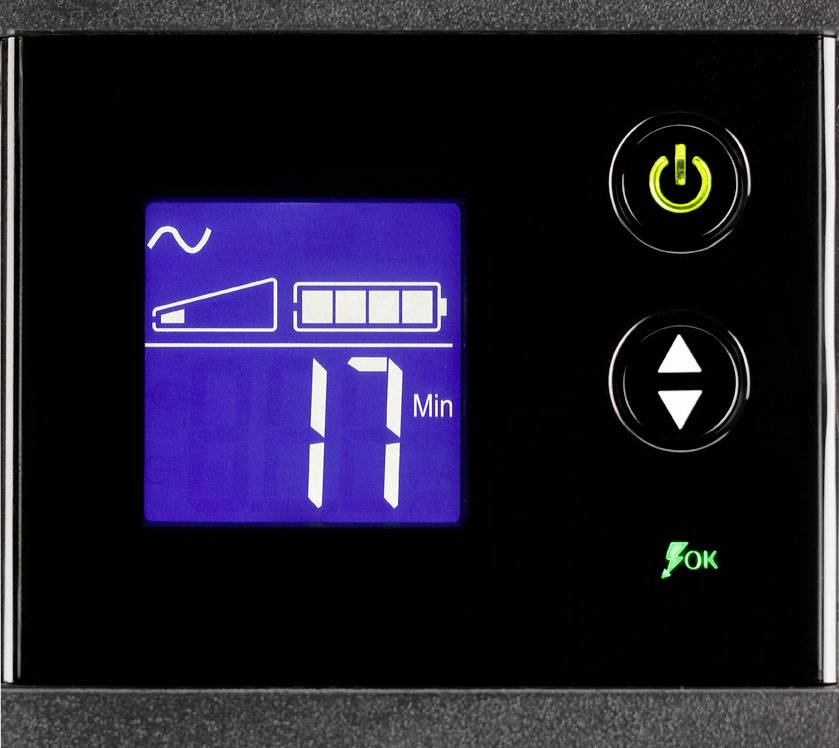

Digital display with remaining time '17 Mins', battery level indicator, mains symbol and buttons for Power, Plus, Minus and OK.

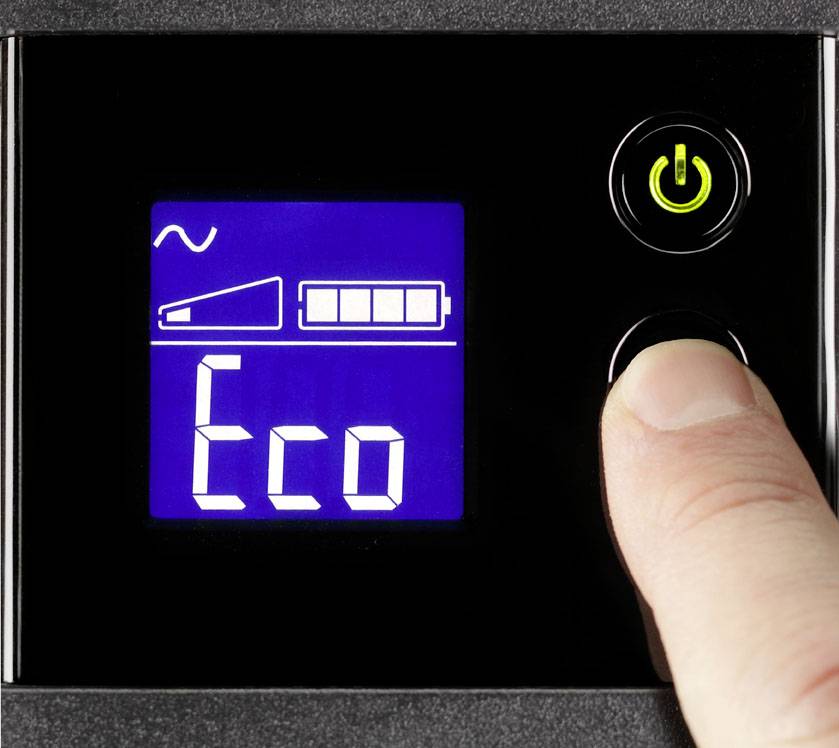

Digital display with text 'Eco', a green power button and a hand pressing a button.

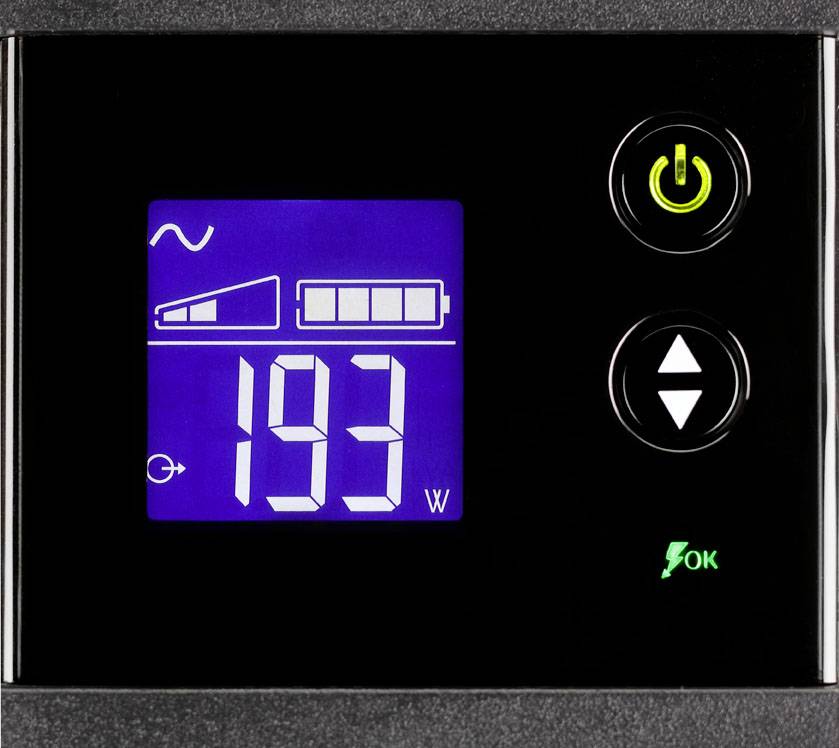

'Digital display with blue background lighting shows 193 W. Symbols for mode, charge level, and control buttons present.'

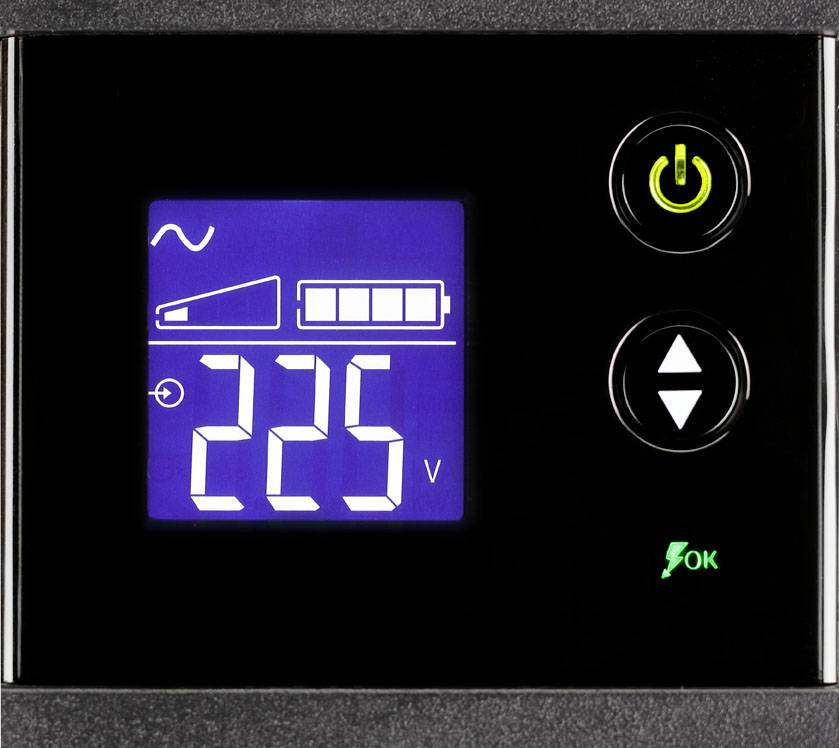

A display shows '225 V' with a battery indicator, a wavy line indicating voltage type, a power on/off button, arrow buttons, and a green 'OK' symbol.

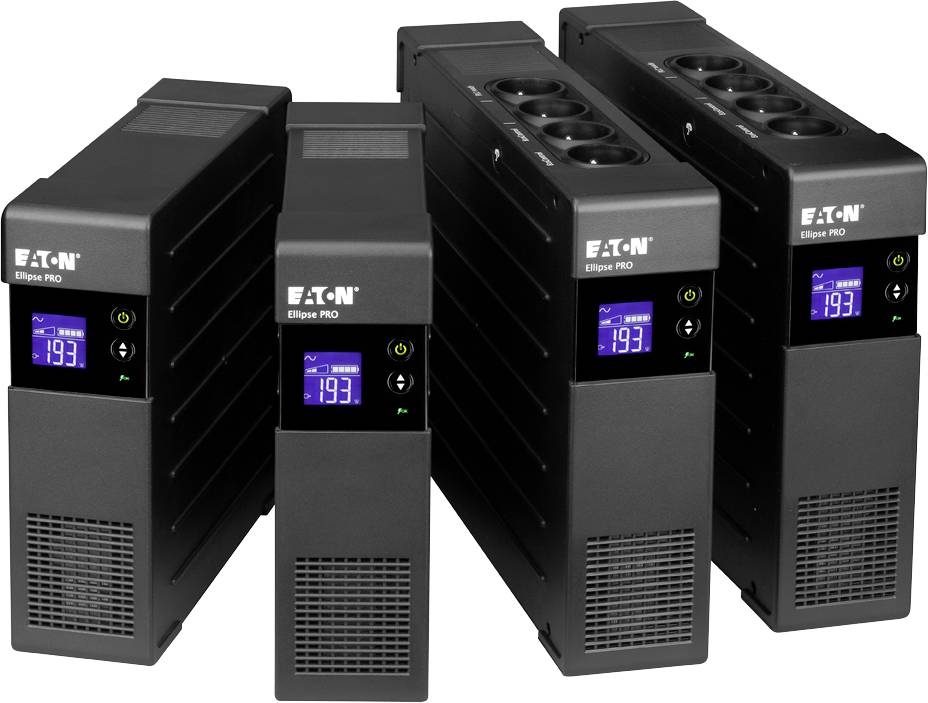

Four black Eaton Ellipse PRO uninterruptible power supplies in different sizes with a digital display showing '19.3' volts.

A black electronic device with multiple sockets and a removable module. A small screw is positioned in front of it.

1/7

Unavailable

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton Ellipse PER 850 DIN - 850/510 (VA/Watt) UPS

Highlights & Details

LCD display, Eco-Control (master-slave function)
All systems with DIN-SCHUKO or IEC-IEC output sockets
650-850VA 3x surge protection + battery backup, 1x surge protection only

Technical specifications

Insurance coverage: Unlimited

Product type: UPS system

Nominal power: 850 VA

No. of outputs: 4 x

with surge protection: 4

of which battery-buffered: 3

Output: IEC C14 plug

Features: Alarm
USB port
LCD

Bridging time normal load: 9 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets
Networks (RJ45)
ISDN (RJ45)

Type: ELP850DIN

Width: 82 mm

Height: 260 mm

Depth: 285 mm

Weight: 7.3 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362797 Eaton ELP850DIN UPS system 850 VA

Description

Eaton ELLIPSE Pro - class VI-SY-313 according to EN 62040-3 - Power failure and surge protection with voltage control - Application area: Power failure & surge protection for PCs, workstations, home entertainment, network components and storage

This text is machine translated.

Features

1200-1600VA 4x surge protection + battery backup, 4x surge protection only
UPS management software on CD-ROM with data cable included
19" rack mount kit available on 2HE and wall mount wallmount kit available as an option.
