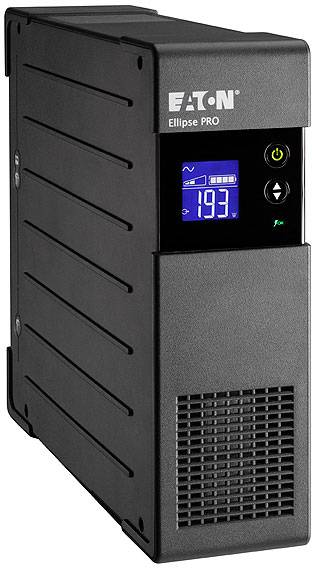

UPS (Uninterruptible Power Supply) device with digital display, model 'EATON Ellipse PRO', shows electrical voltage of 193V.

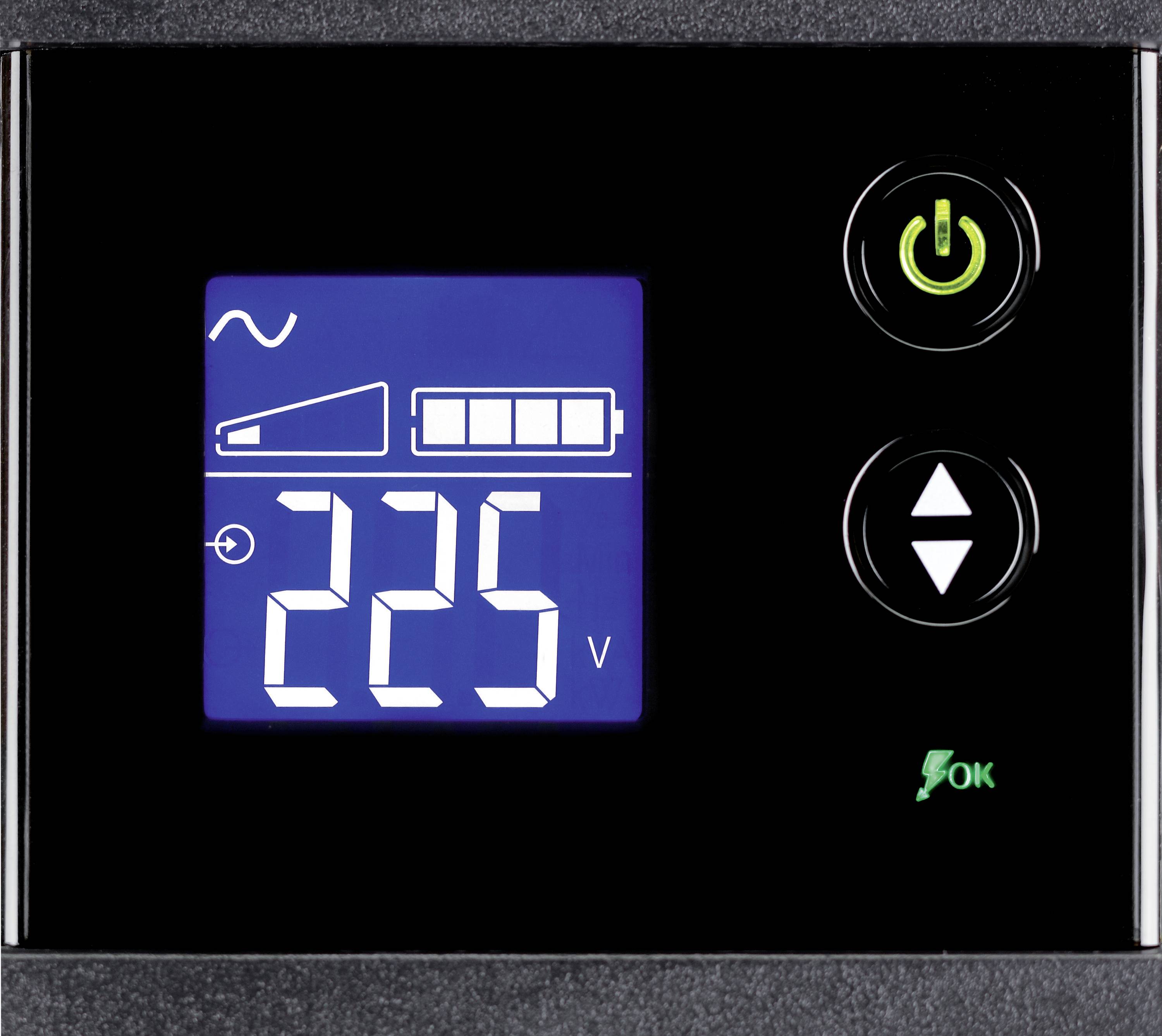

Digital display with a blue screen shows 225 volts. Two switches are next to it: On/Off and Up/Down. Wave signal symbol in the top left corner.

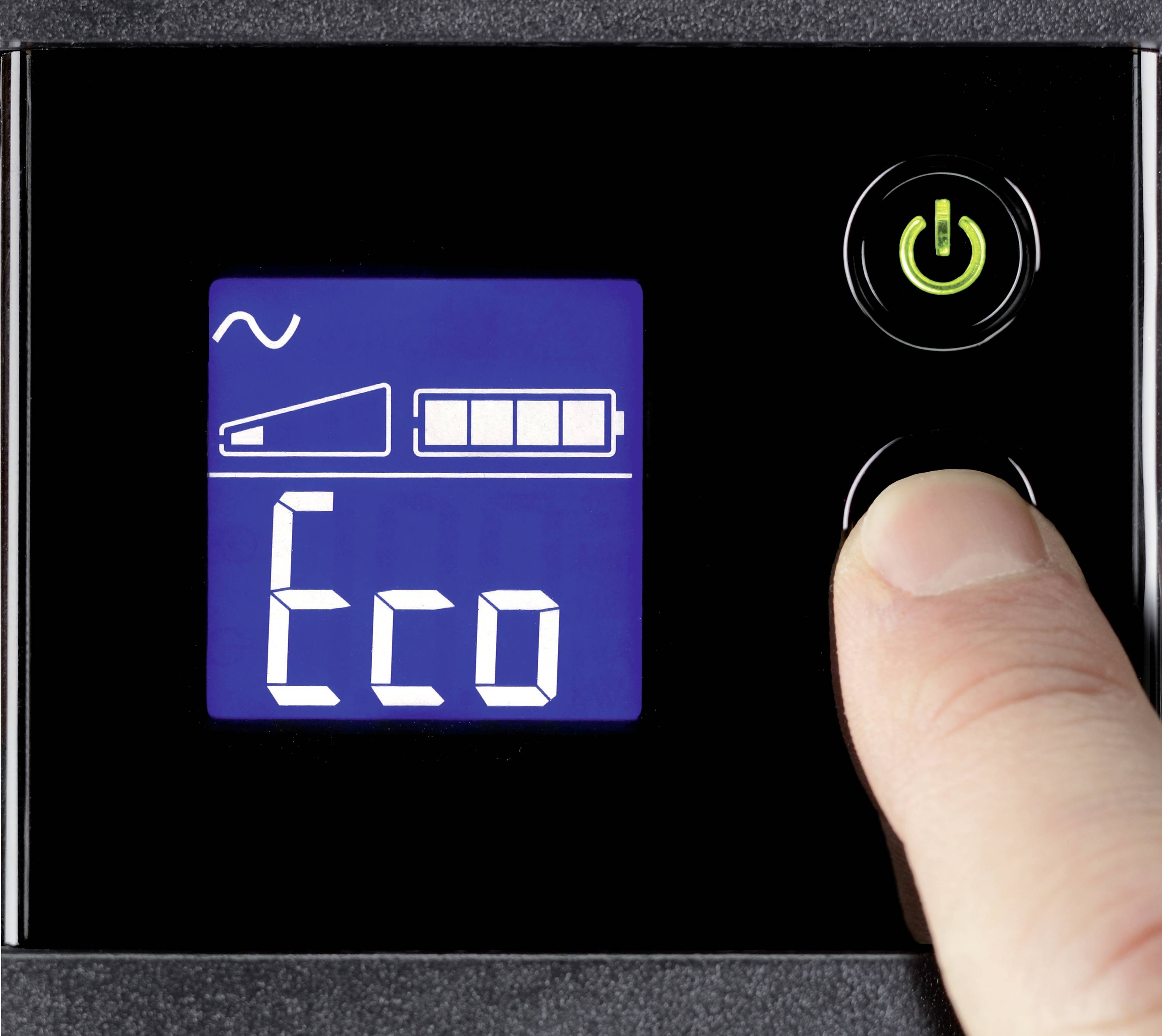

A finger presses a button on a display showing the 'Eco' mode and a half-filled charging bar. A green power button is visible.

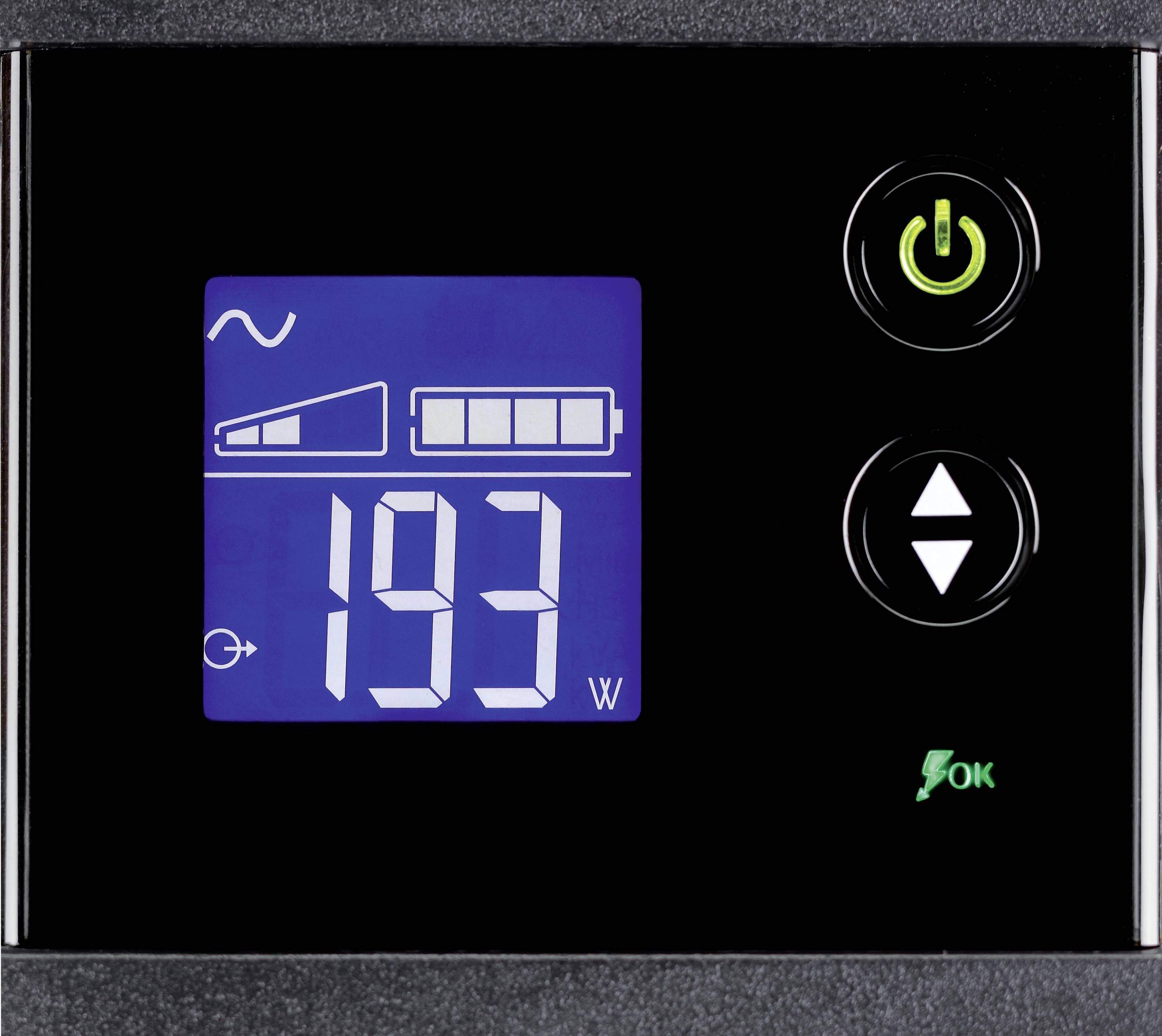

Digital display of an electrical device showing 193 watts, with symbols for power levels, on/off button, and arrows.

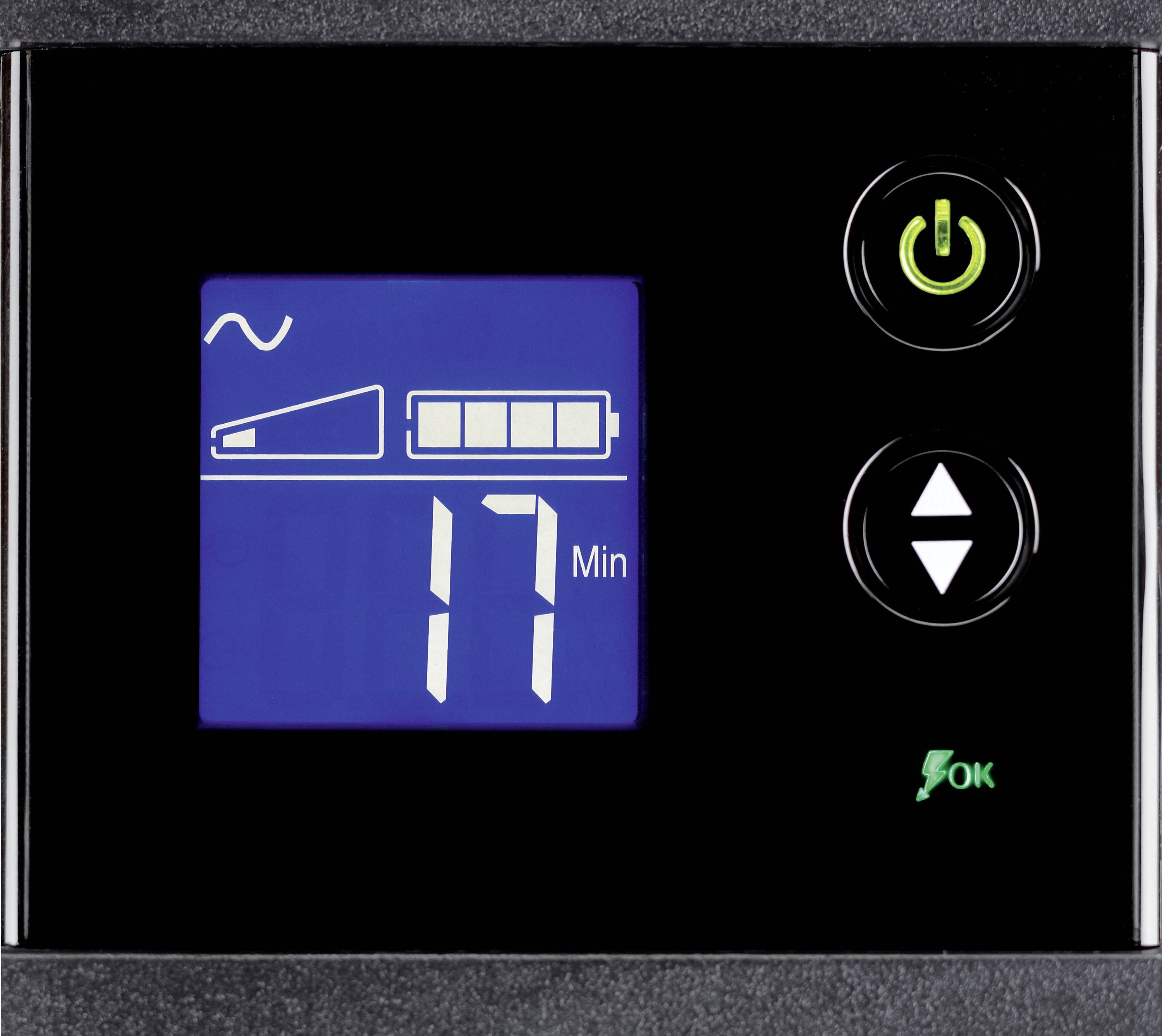

Electronic display with symbols. Shows charging status and remaining time of 17 minutes. Buttons: On/Off and Up/Down arrows.

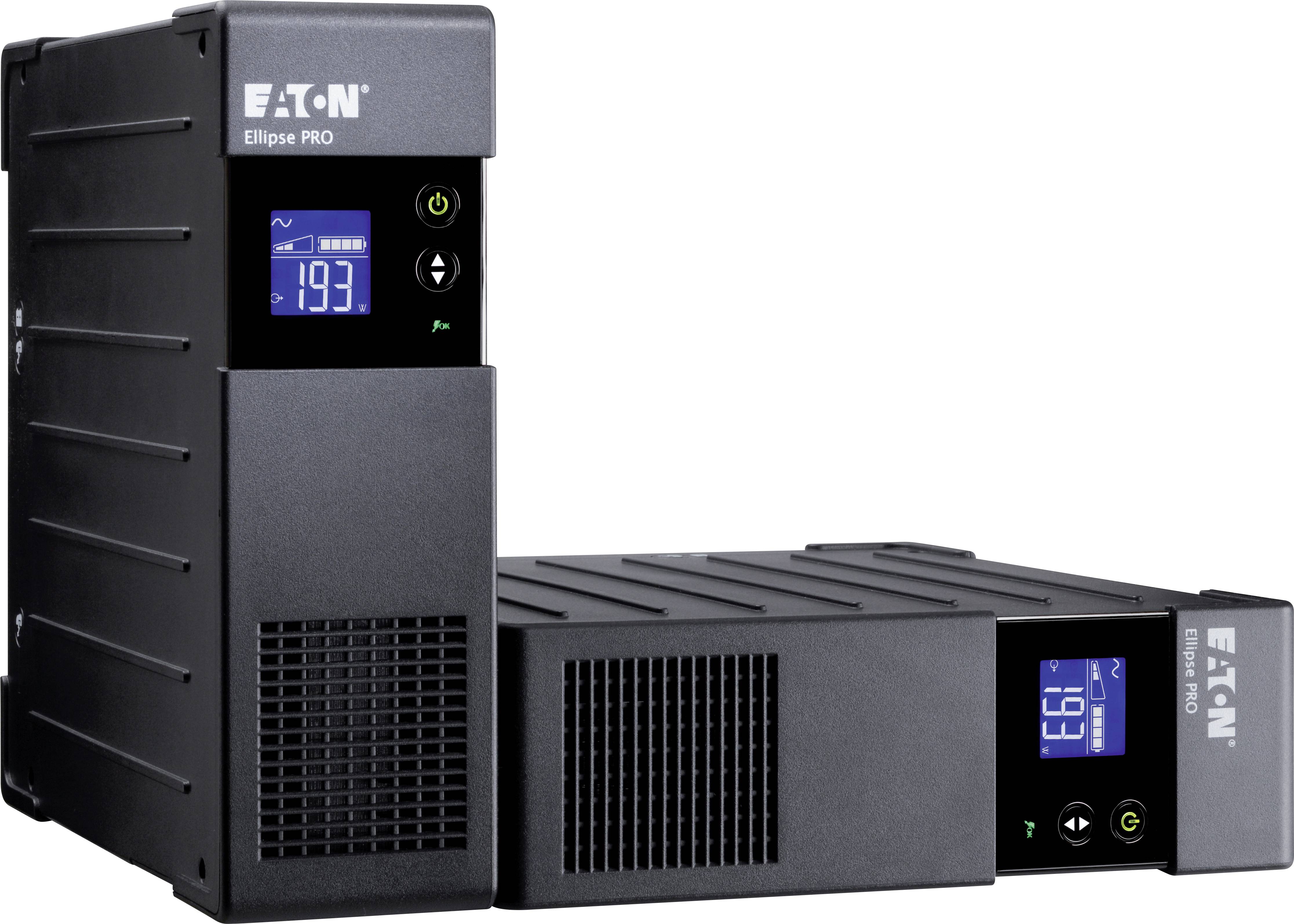

Two Eaton Ellipse PRO uninterruptible power supply (UPS) devices, one upright, one horizontal, with a digital display showing power and battery status.

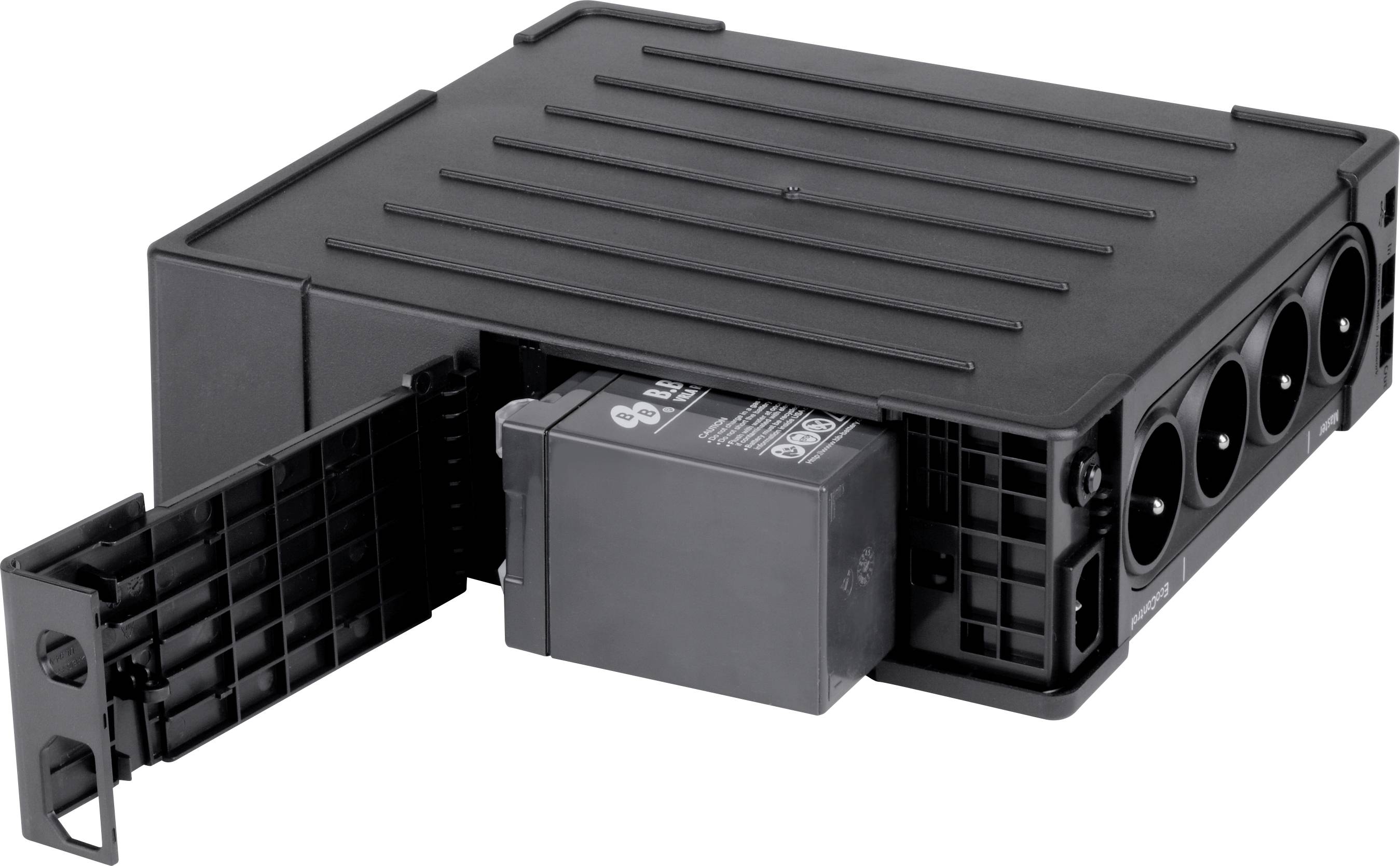

Black electrical cable box with four plug sockets and a pull-out compartment lid, ideal for cable management and power distribution.

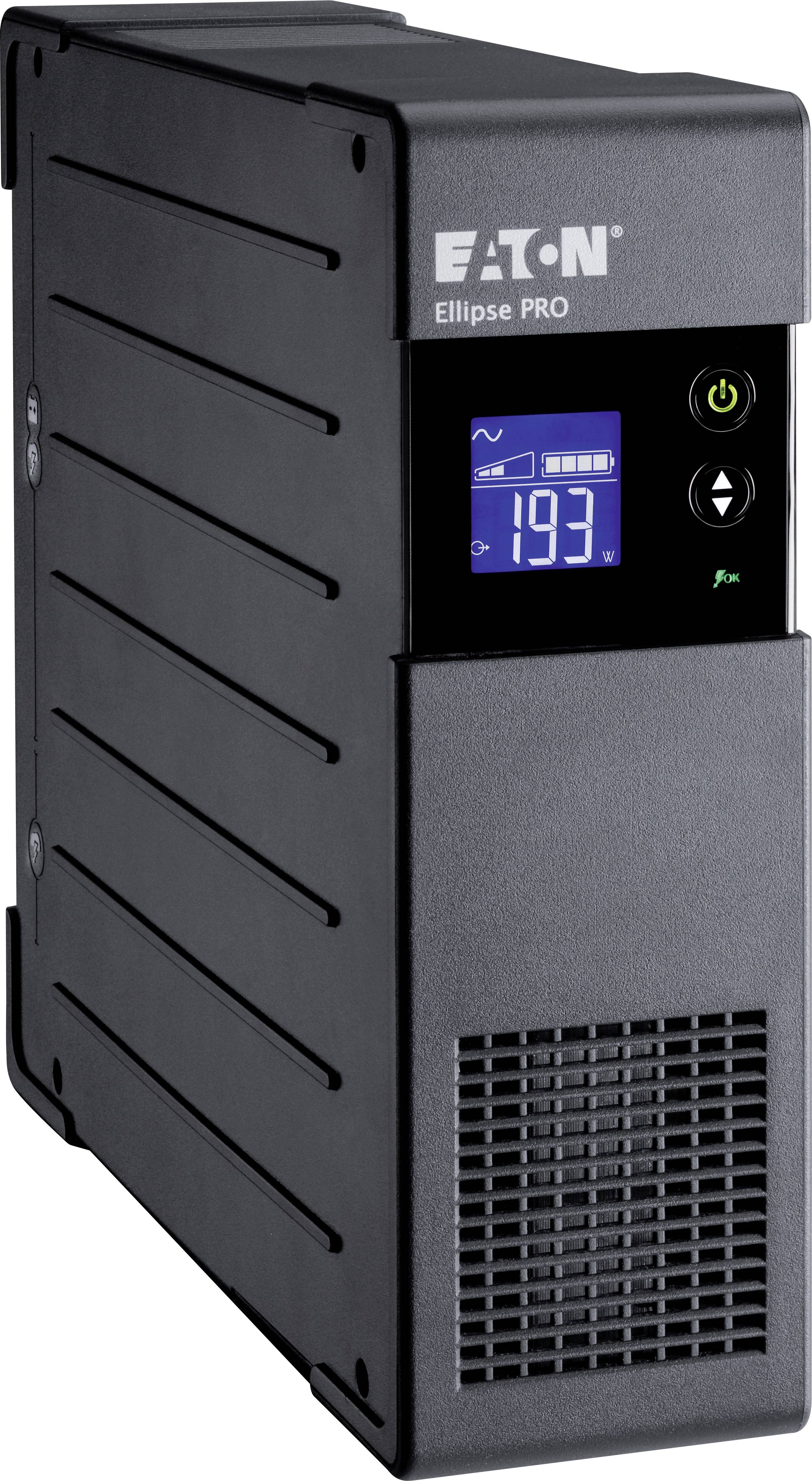

Black Eaton Ellipse PRO uninterruptible power supply (UPS) device with digital display, showing '193', LED indicator and control buttons on the front panel.

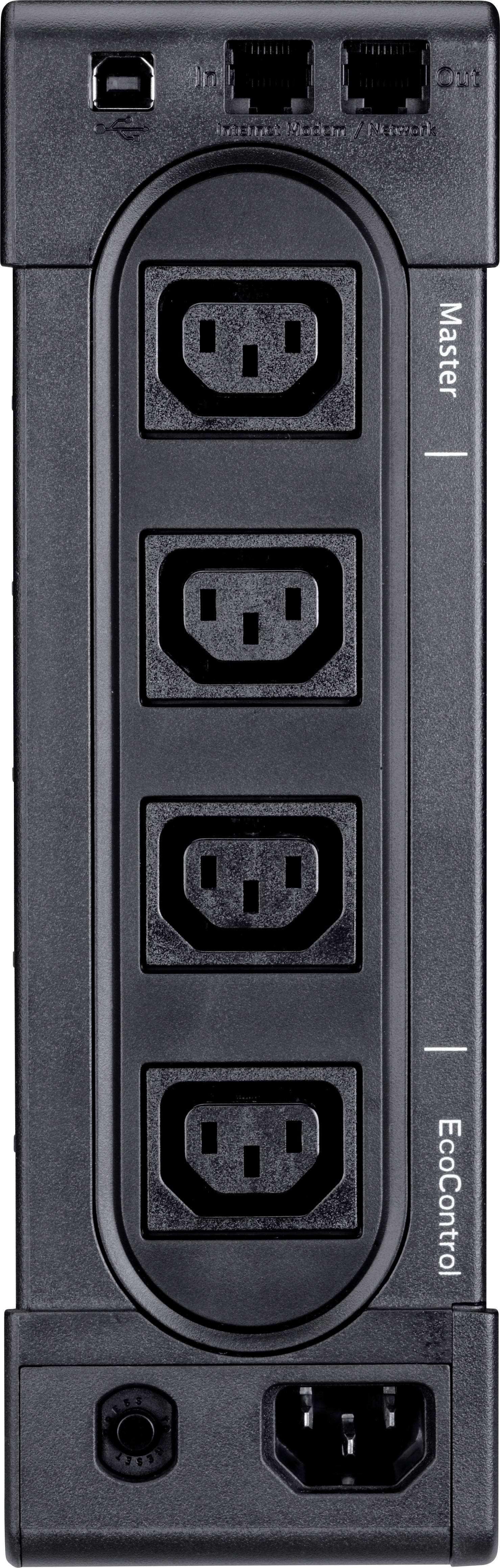

Five-way socket strip. Top connection for network or telephone. Bottom network connection and switch for EcoControl.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Eaton Ellipse PER 850 IEC - 850/510 (VA/Watt) UPS

Highlights & Details

LCD display, Eco-Control (master-slave function)
All systems with DIN-SCHUKO or IEC-IEC output sockets
650-850VA 3x surge protection + battery backup, 1x surge protection only

Technical specifications

Insurance coverage: Unlimited

Product type: UPS system

Nominal power: 850 VA

No. of outputs: 4 x

with surge protection: 4

of which battery-buffered: 3

Output: IEC C14 plug

Features: Alarm
USB port
LCD

Bridging time normal load: 9 min

Bridging time, max load: 5 min

Surge protection for: Mains outlets
Networks (RJ45)
ISDN (RJ45)

Type: ELP850IEC

Width: 82 mm

Height: 260 mm

Depth: 285 mm

Weight: 7.3 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2362800 Eaton ELP850IEC UPS system 850 VA

Description

Eaton ELLIPSE Pro - class VI-SY-313 according to EN 62040-3 - Power failure and surge protection with voltage control - Application area: Power failure & surge protection for PCs, workstations, home entertainment, network components and storage

This text is machine translated.

Features

1200-1600VA 4x surge protection + battery backup, 4x surge protection only
UPS management software on CD-ROM with data cable included

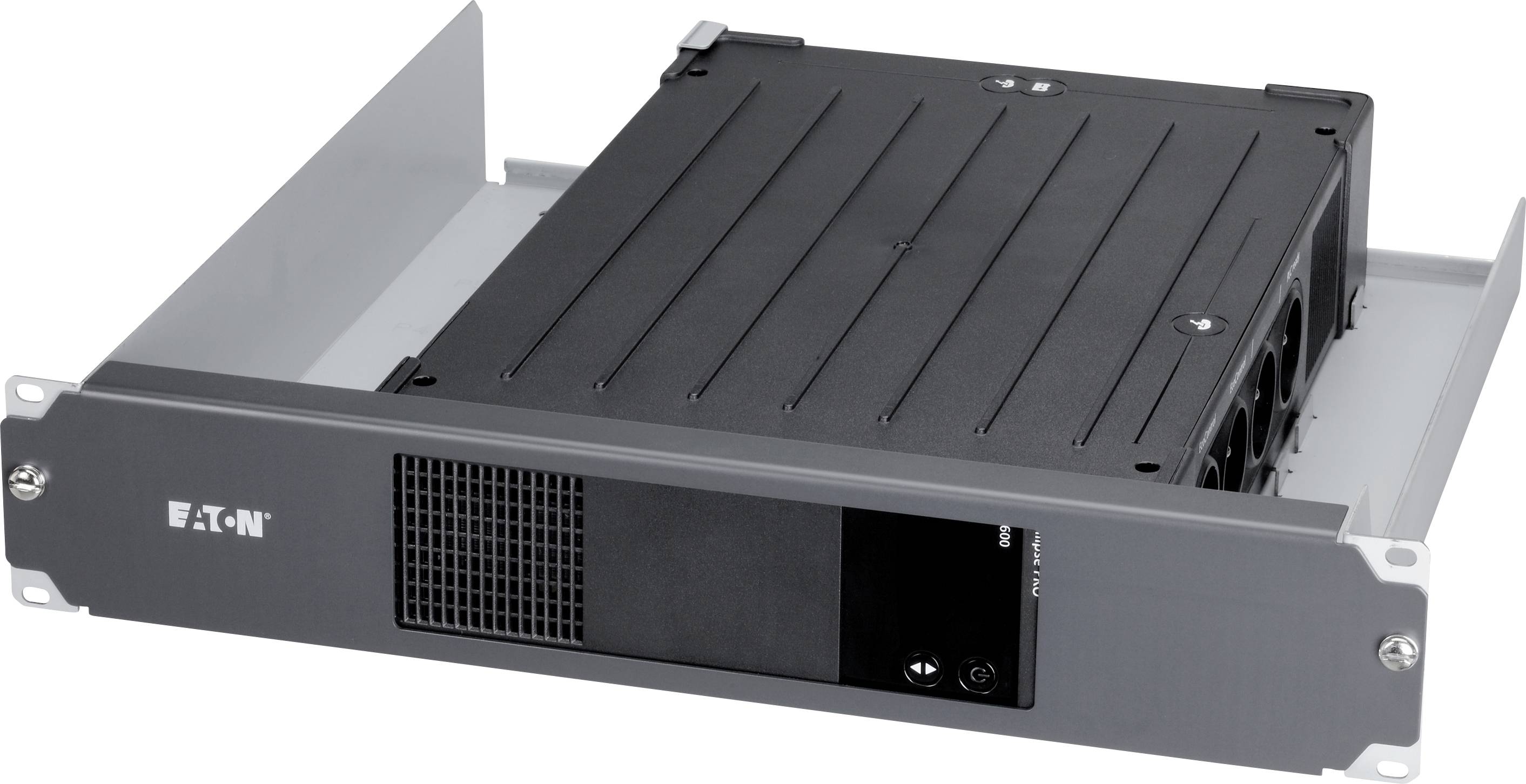

19" rack mount kit available on 2HE and wall mount wallmount kit available as an option.
