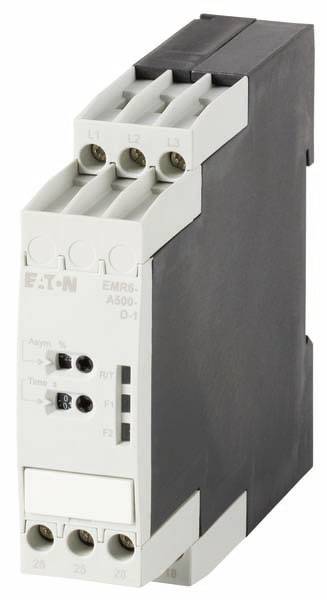

Eaton EMR6-A500-D-1 184762 Monitoring relay No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Monitoring relay
No. of relay outputs
2
Operating voltage
500 V AC
Type
EMR6-A500-D-1
Probe inputs
300..500 V
Datasheet (PDF)
Number
Total (€ 210.08 / piece)
€ 210.08
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Number of contacts as changeover contact: 2
- Execution of the electrical connection: Screw connection
- Function asymmetry detection: Yes
- Function phase failure detection: Yes
- Function phase sequence monitoring: Yes
- Function over-voltage detection: No
- Function under-voltage detection: No
- Max. Permissible response delay time: 30 s
- Voltage type for activation: AC
- Voltage measuring range: 300 - 500 V.
- Type
EMR6-A500-D-1
- Product type
Monitoring relay
- No. of relay outputs
2
- Probe inputs
300..500 V
- Operating voltage
500 V AC
- Dim
(L x W x H) 104.6 x 22.5 x 85.6 mm
- Width
22.5 mm
- Height
85.6 mm
- Length
104.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306788 Eaton EMR6-A500-D-1 184762 Monitoring relay No. of relay outputs: 2
