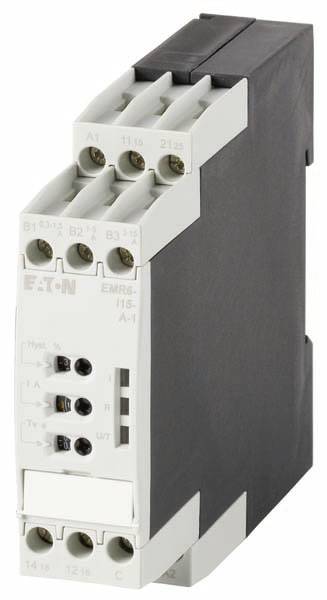

Eaton EMR6-I15-A-1 184754 Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Operating voltage
240 V AC
Type
EMR6-I15-A-1
Dim
(L x W x H) 104.6 x 22.5 x 85.6 mm
Width
22.5 mm
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Design: Over- and under-current monitor
- 1-phase overcurrent possible: Yes
- 1-phase undercurrent possible: Yes
- Number of contacts as changeover contact: 2
- Execution of the electrical connection: Screw connection
- contains function DC over-current: Yes
- contains function DC under-current: Yes
- Max. Permissible response delay time: 30 s
- Voltage type for operation: AC/DC
- Current measuring range: 0.3 - 15 A.
- Type
EMR6-I15-A-1
- Product type
Monitoring relay
- Operating voltage
240 V AC
- Dim
(L x W x H) 104.6 x 22.5 x 85.6 mm
- Width
22.5 mm
- Height
85.6 mm
- Length
104.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306792 Eaton EMR6-I15-A-1 184754 Monitoring relay
User & Safety Instructions
User & Safety Instructions 2306792 Eaton EMR6-I15-A-1 184754 Monitoring relay
