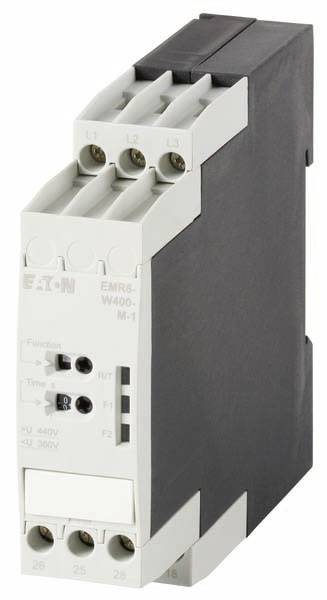

Eaton EMR6-W400-M-1 184778 Phase monitor No. of relay outputs: 2
EAN:
Part number:
Item no:
Product type
Phase monitor
No. of relay outputs
2
Operating voltage
400 V AC
Type
EMR6-W400-M-1
Probe inputs
400 V
Datasheet (PDF)
Number
Total (€ 205.87 / piece)
€ 205.87
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Number of contacts as changeover contact: 2
- Execution of the electrical connection: Screw connection
- Function asymmetry detection: No
- Function phase failure detection: Yes
- Function phase sequence monitoring: Yes
- Function over-voltage detection: Yes
- Function under-voltage detection: Yes
- Max. Permissible response delay time: 30 s
- Max. Permissible fall-back delay time: 30 s
- Voltage type for activation: AC
- voltage measurement range: 400 - 400 V.
- Type
EMR6-W400-M-1
- Product type
Phase monitor
- No. of relay outputs
2
- Probe inputs
400 V
- Operating voltage
400 V AC
- Dim
(L x W x H) 104.6 x 22.5 x 85.6 mm
- Width
22.5 mm
- Height
85.6 mm
- Length
104.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2306798 Eaton EMR6-W400-M-1 184778 Phase monitor No. of relay outputs: 2
