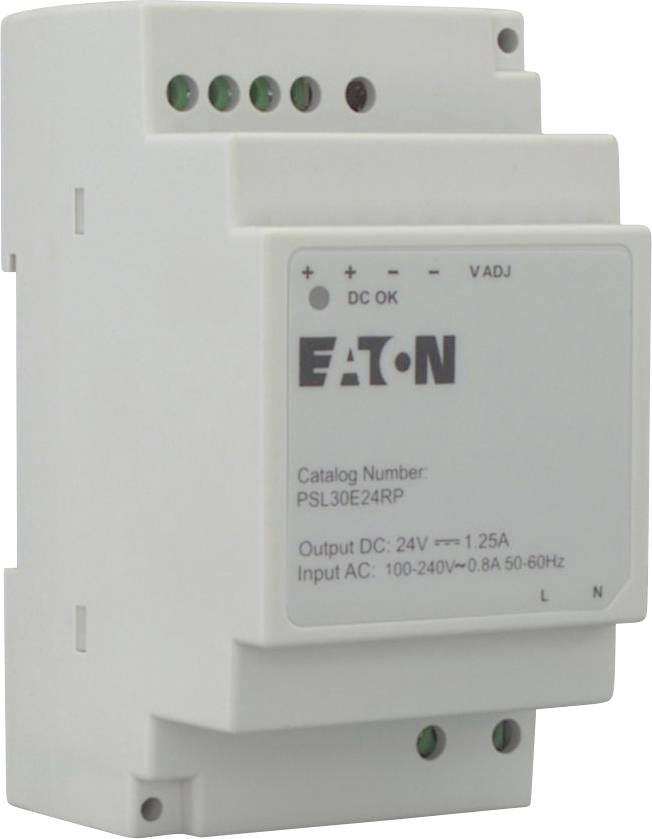

Eaton EP-401403 Power supply unit 24 V 1.25 A 34 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Power supply, single-phase, 90 - 264 V AC / 24 V DC, 1.25 A
- Output 24 V / 1.25 A
- Power 34 W
- Screws
Technical specifications
- Type
Single phase
- Product type
Power supply unit
- Input voltage (max.)
264 V
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Min. input voltage
90 V
- Dim
(L x W x H) 91 x 53 x 55.6 mm
- Output voltage (max.)
24 V
- Connection
Screws
34 W
- Input frequency
50/60 Hz
IP20
- Operating temperature (max.)
71 °C
- Operating temperature (min.)
-25 °C
- Operating temperature
-25 °C - +71 °C
- Weight
0.14 kg
- Width
53 mm
- Height
55.6 mm
- Length
91 mm
- Type
PSL30E24RP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3553263 Eaton EP-401403 Power supply unit 24 V 1.25 A 34 W
User & Safety Instructions
User & Safety Instructions 3553263 Eaton EP-401403 Power supply unit 24 V 1.25 A 34 W
Description
New! Suitable for mounting in series. Ideal for the supply of Easy E4 control relays with 24VDC
